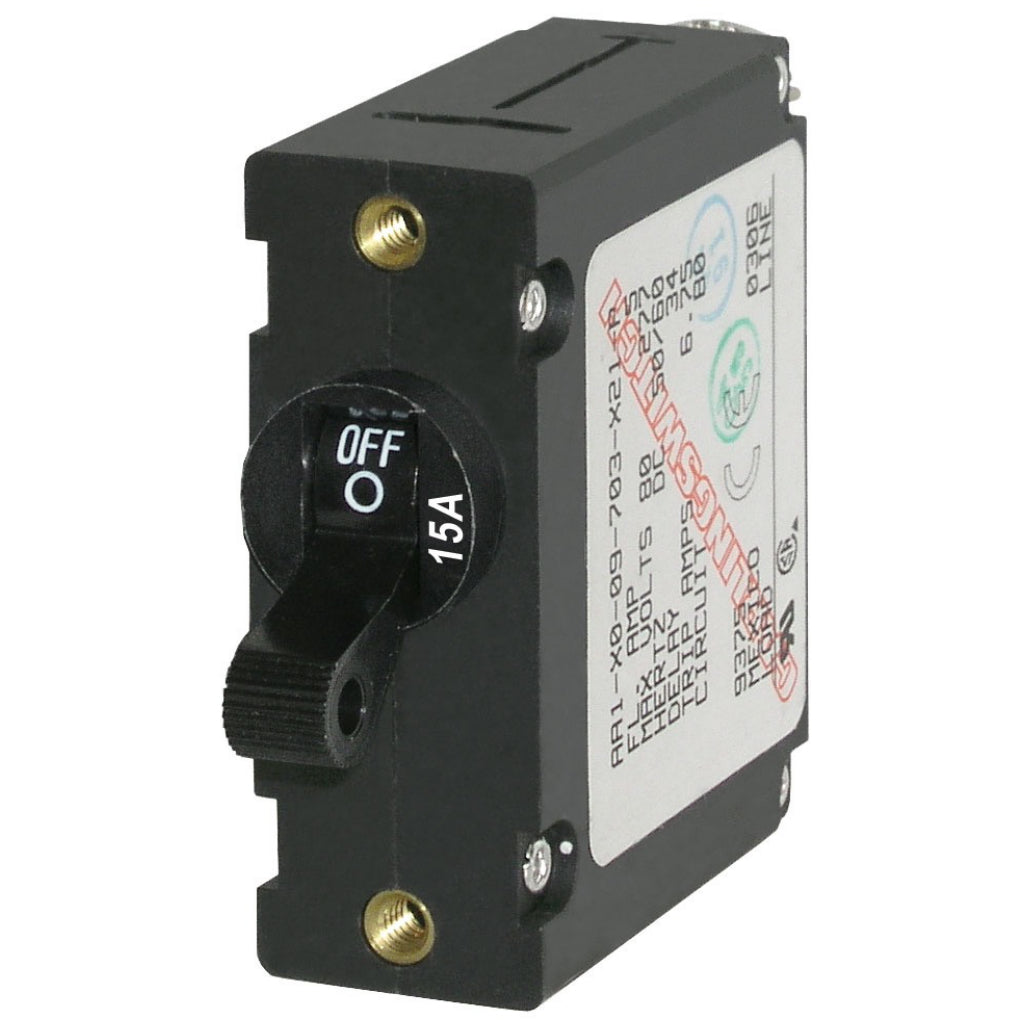

Item# 7208

Features:

• Meets American Boat and Yacht Council (ABYC) standards.
• The industry standard circuit breaker for Blue Sea Systems" electrical panels.
• "Trip Free" design cannot be held "ON" during fault current condition.

Specifications:

• Amperage:
• 15A AC
• 15A DC
• Color:Black
• Actuator Style: Toggle
• Poles:1
• Maximum Voltage:2
• 40V AC
• 32V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Interrupt Capacity:
• 3000A 120V AC
• 1500A 240V AC TUV
• 3000A 240V AC UL 1077
• 7500A 65V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature:85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Screw Terminal Torque:14 in-lb (1.58 Nm)
• Switching Cycles:10000
• Terminal Screws:10-32 Stainless Steel
• Weight:0.17lb (0.08 kg)
