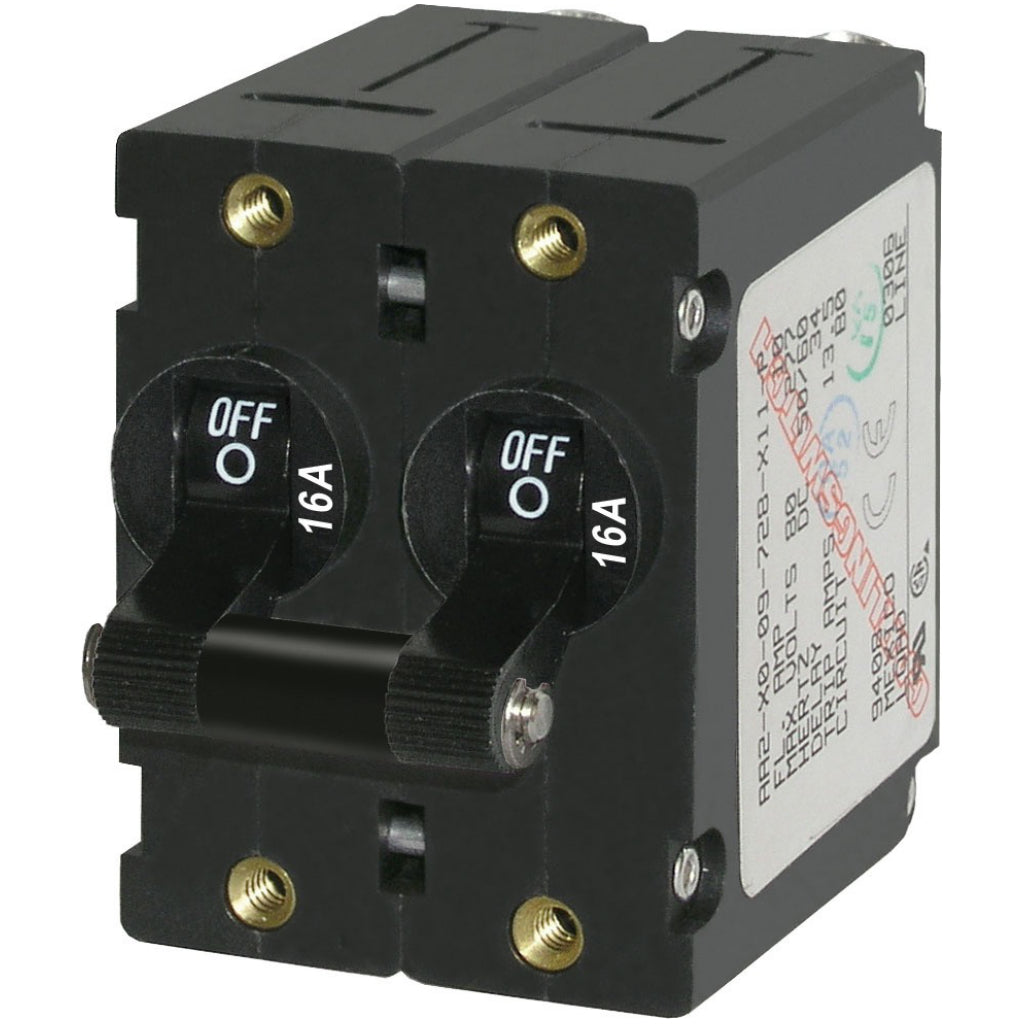

Blue Seas Systems 16A 2 Pole Circuit Breaker

Item# 7348

Features:

• Meets American Boat and Yacht Council (ABYC) standards
• UL 1077 recognized, TUV certified, CE Marked for Europe, and CSA certified for Canada.
• Combines switching and circuit protection into a single device.
• "Trip Free" design cannot be held "ON" during fault current condition.

Specifications :

• Amperage:
• 16A AC
• 16A DC
• Color:Black
• Actuator Style: Toggle
• Poles:
• Maximum Voltage:
• 120V AC
• 240V AC
• 65V DC
• Circuit Breaker Type:Magnetic Hydraulic - trip free
• Interrupt Capacity:
• 3000A 120V AC
• 3000A 240V AC
• 1500A 240V AC TUV
• 3000A 240V AC UL 1077
• 7500A 65V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Screw Terminal Torque:14 in-lb (1.58 Nm)
• Switching Cycles:10000
• Terminal Screws:10-32 Stainless Steel
• Weight:0.34lb (0.15 kg)
