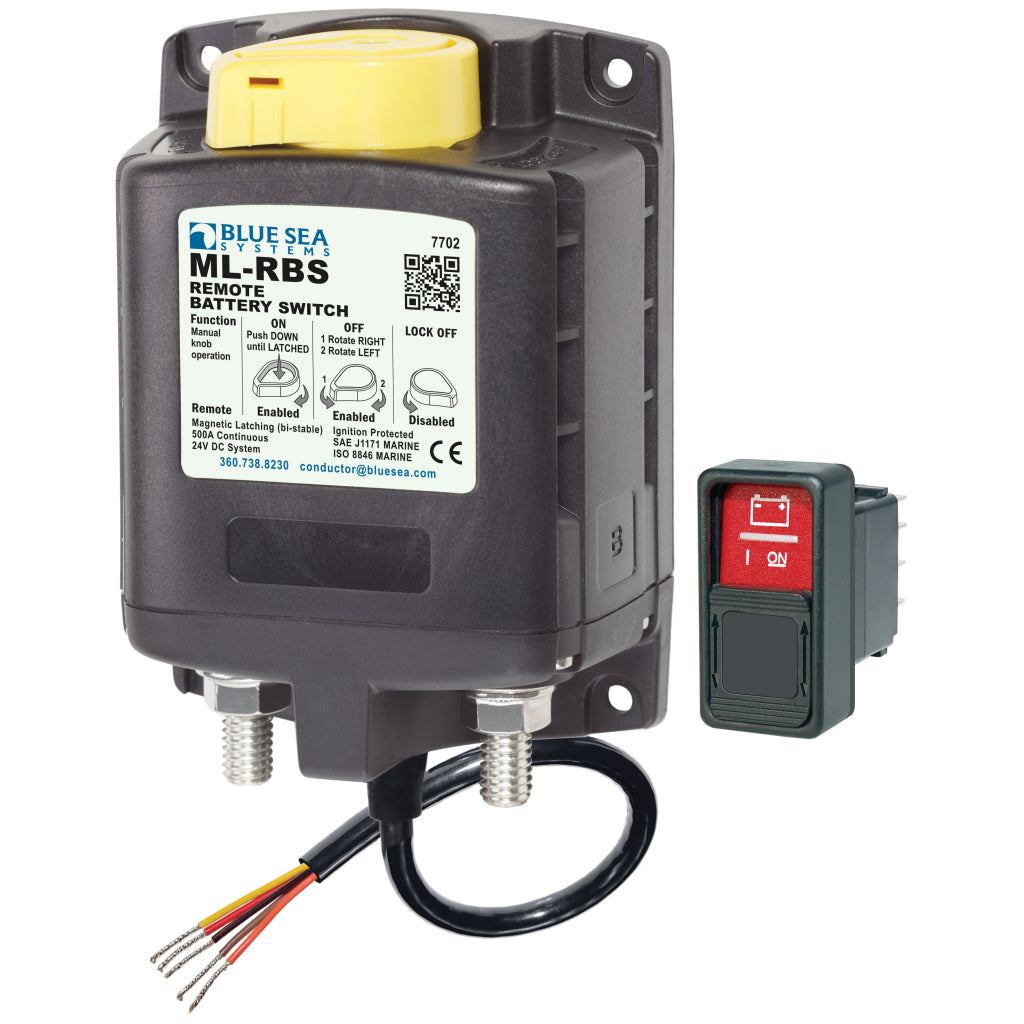

Item# 7702
Features:
- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing.
- LED output to remotely indicate switch state - requires optional LED.
- 3 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
- 7 8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification.
- Silver alloy contacts provide high reliability for switching live loads.
Specifications:
- Control Circuit Connection: Tinned Wire
- Nominal Voltage:24V DC
- Manual Control:Yes
- Coil Function: Bi-Stable
- Mounting:10
- Amperage Operating Current:0mA
- Amperage Operating Current when changing state:<4A (40 ms)
- Terminal Stud Torque:140 in-lb (15.82 Nm)
- Control Circuit Voltage:18-32V DC
- Continuous Rating: 500A
- Intermittent Rating:700A (5 min)
- Cranking Rating 30 sec: 1450A DC
- Minimum Operating Temperature:-10° C
- Maximum Operating Temperature: 60° C
- Cable Size to Meet Ratings:2x (4/0)
- Live Current Switching:300A 12V DC
- Master Control Switch Capability:No
- Mechanical Endurance:100,000 Cycles
- Terminal Ring Diameter Clearance:1.18in (29.97 mm)
- Terminal Stud Length:0.875in (22.23 mm)
- Terminal Stud Size:3/8" - 16 (M10)
- Weight:2.09lb (0.95 kg)
