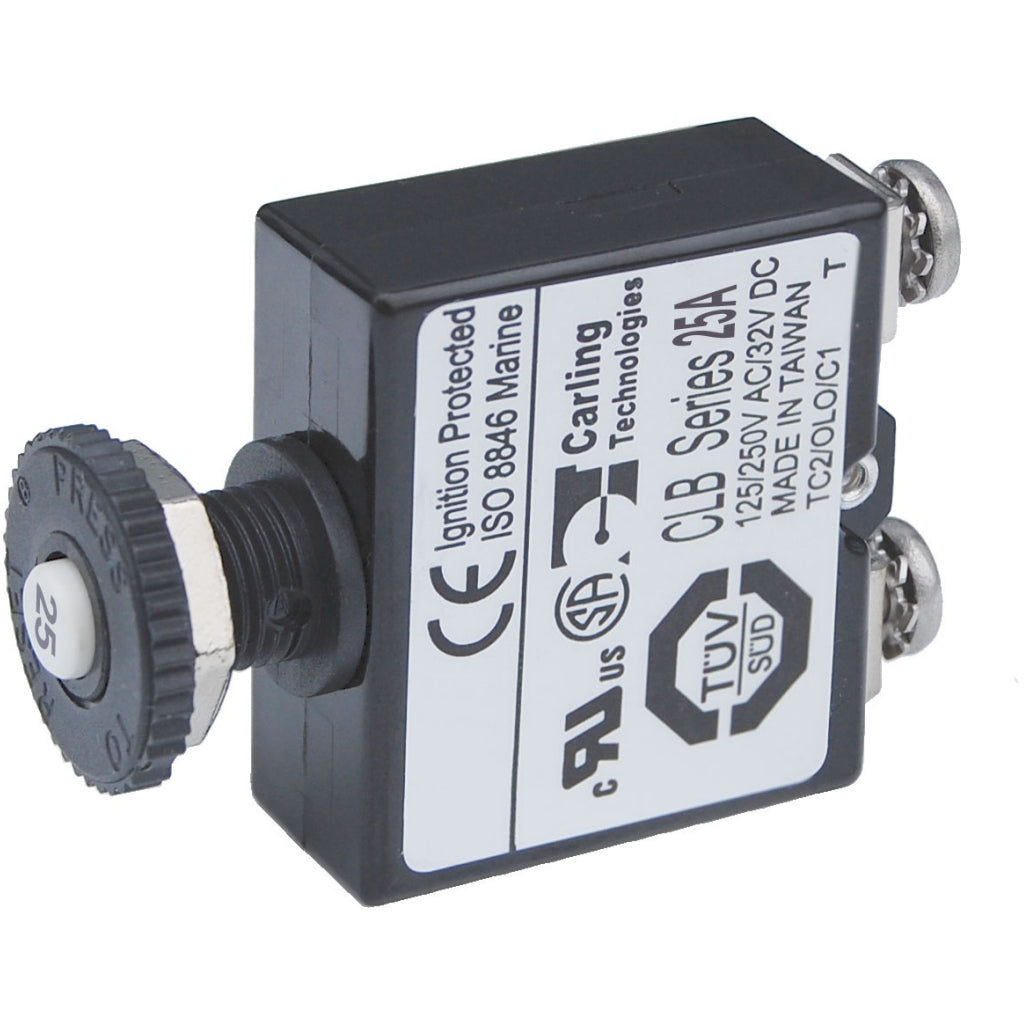

Blue Sea Push Button Circuit Breaker - 25A

SKU# BS2135
$1099
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 2135

Features:

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats

Specifications:

  • Amperage:25A
  • Maximum Voltage:32V DC
  • Mounting:Panel Mount 3/8-27 UNS
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Type:8 Screw
  • Interrupt Capacity:3000A 14.7V
  • 2500A 28V
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature:60° C
  • Screw Terminal Torque:6 in-lb (0.68 Nm)
  • Weight:0.10lb (0.05 kg)
