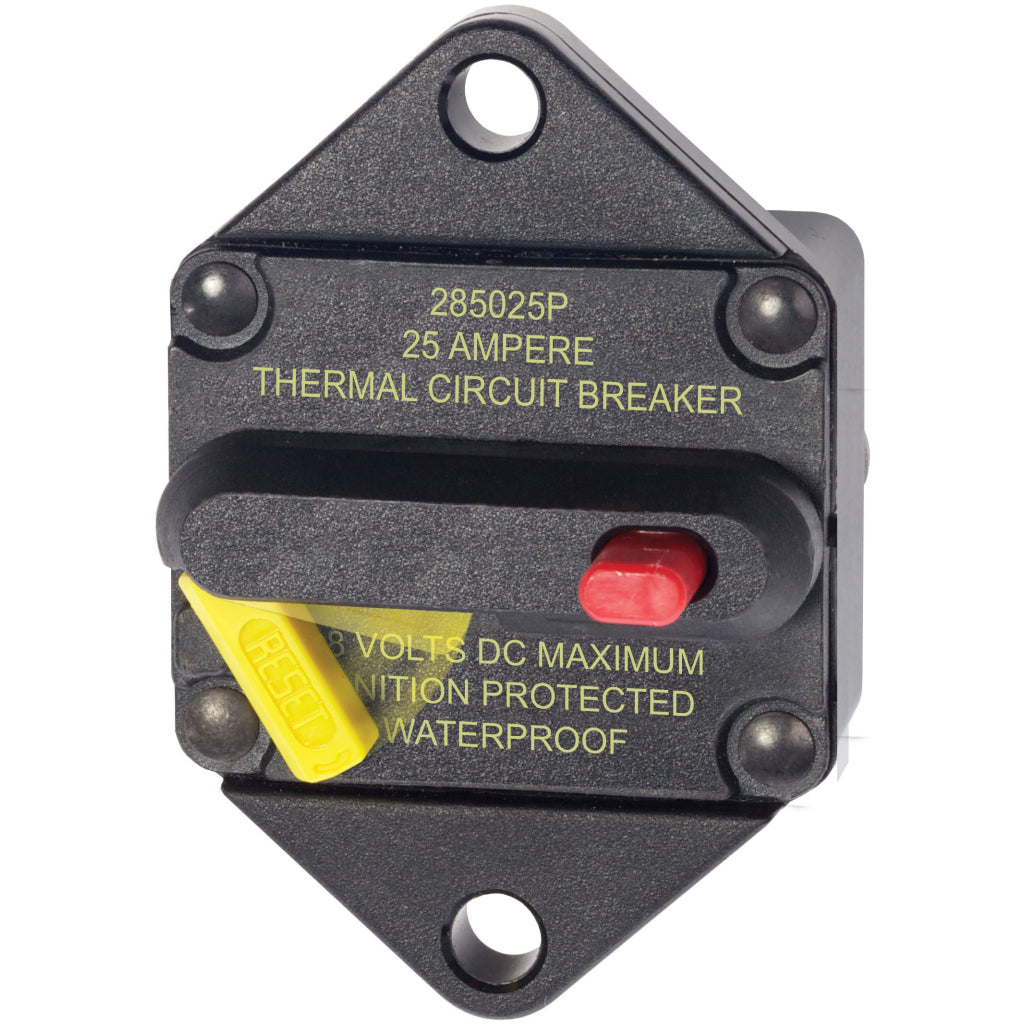

Blue Seas Systems 25A Panel Mount Circuit Breaker
ELECTRICAL

Blue Seas Systems 25A Panel Mount Circuit Breaker

SKU# BS7080
$7499
Check Delivery Time

Blue Seas Systems 25A Panel Mount Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 7080

Features:

  • Visible reset lever shows open condition.
  • Ignition protected - Safe for installation aboard gasoline powered boats.
  • Meets SAE J1171 external ignition protection requirements.
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit.
  • "Trip Free" - cannot be held closed after trip.

Specifications:

  • Amperage:25A
  • Maximum Voltage:48V DC
  • Mounting:Panel Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque:50 in-lb (5.65 Nm)
  • Interrupt Capacity: 3000A 48V
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Circuit Breaker Class:Type III - switchable/manual reset - trip free
  • Terminal Stud:M6 (accepts 1/4" Ring Terminal)
  • Weight:0.50lb (0.23 kg)
