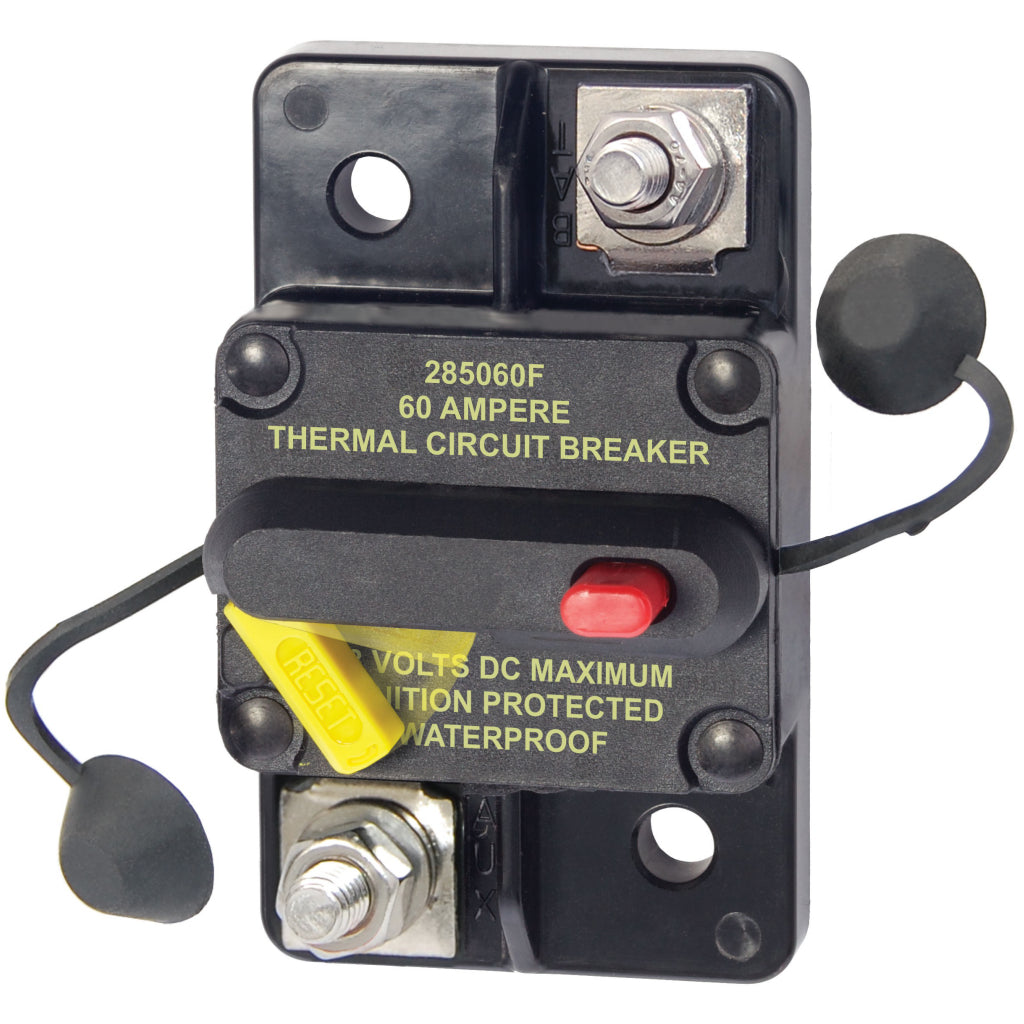

Blue Seas Systems 285-Series 60A Circuit Breaker

SKU# BS7184
Check Delivery Time

Blue Seas Systems 285-Series 60A Circuit Breaker may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7184


  • Drop in replacement for 185-Series Circuit Breakers.
  • Visible reset lever shows open condition.
  • Ignition Protected
  • Meets SAE J1171 external ignition protection requirements.
  • Weather Resistant
  • "Trip Free" - cannot be held closed after trip.


  • Amperage:60A
  • Maximum Voltage:48V DC
  • Mounting:Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque:60 in-lb (6.78 Nm)
  • Interrupt Capacity: 3000A 48V
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Circuit Breaker Class:Type III - switchable/manual reset - trip free
  • Terminal Stud:M6 (accepts 1/4" Ring Terminal)
  • Weight:0.50lb (0.23 kg)
