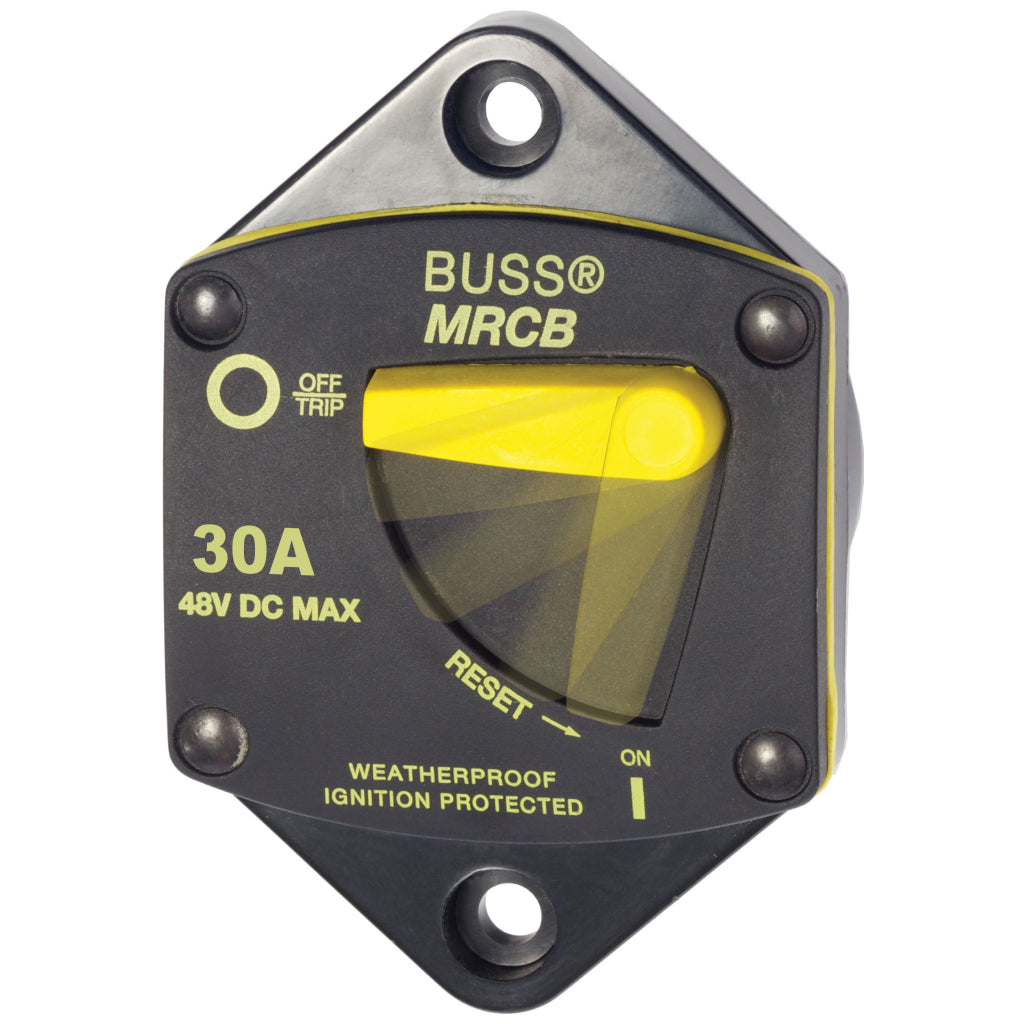

Blue Seas Systems 30A Panel Mount Circuit Breaker

SKU: BS7036
$14699

Item# 7036

Features:

  • Clear, single lever operation.
  • "Trip Free" design cannot be held "ON" during fault current condition.
  • Waterproof
  • Recessed mounting holes for clean appearance.
  • Large Clearance around terminal studs accept heavy gauge wire lugs.
  • Robust 5/16 M8 terminals provide high torque connections.
  • Large lever with vertical/horizontal orientation provides indication of trip status.
  • Ignition Protected

Specifications:

  • Amperage:30A
  • Maximum Voltage:48V DC
  • Mounting:Panel Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque:75 in-lb (8.47 Nm)
  • Interrupt Capacity:
  • 5000A 12V
  • 3000A 24V
  • 1500A 42V
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature:85° C
  • Case Material:Thermoset Polyester
  • Circuit Breaker Class:Type III - switchable/manual reset - trip free
  • Mounting Hole:Accept 10 (M5) Screw
  • Terminal Stud Size:5/16" - 18
  • Weight:0.50lb (0.23 kg)
