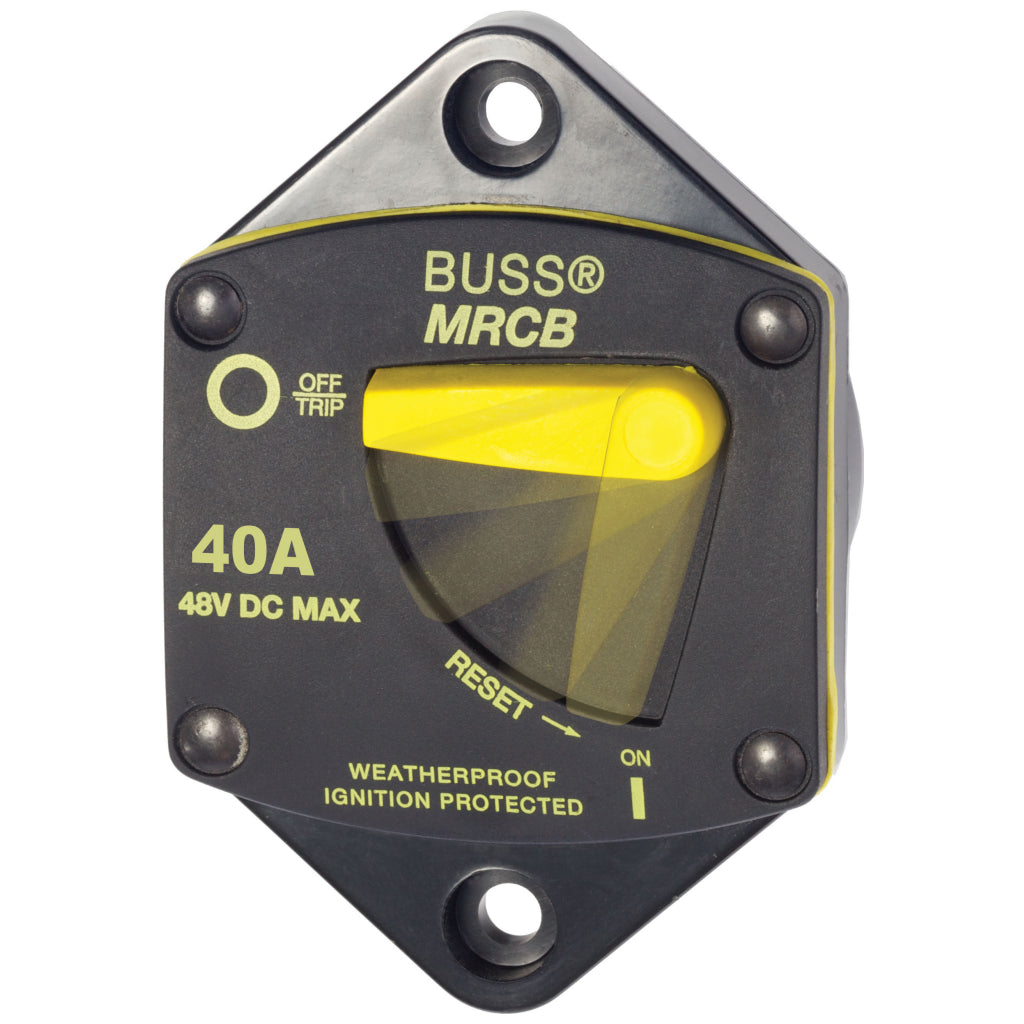

Blue Seas Systems 40A Panel Mount Circuit Breaker

SKU# BS7038
$11799
Check Delivery Time

Blue Seas Systems 40A Panel Mount Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7038

Features:

  • Clear, single lever operation.
  • "Trip Free" design cannot be held "ON" during fault current condition.
  • Waterproof
  • Recessed mounting holes for clean appearance.
  • Large Clearance around terminal studs accept heavy gauge wire lugs.
  • Robust 5/16 M8 terminals provide high torque connections.
  • Large lever with vertical/horizontal orientation provides indication of trip status.
  • Ignition Protected

Specifications:

  • Amperage:40A
  • Maximum Voltage:48V DC
  • Mounting:Panel Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque:75 in-lb (8.47 Nm)
  • Interrupt Capacity:
  • 5000A 12V
  • 3000A 24V
  • 1500A 42V
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature:85° C
  • Case Material:Thermoset Polyester
  • Circuit Breaker Class:Type III - switchable/manual reset - trip free
  • Mounting Hole:Accept 10 (M5) Screw
  • Terminal Stud Size:5/16" - 18
  • Weight:0.50lb (0.23 kg)
