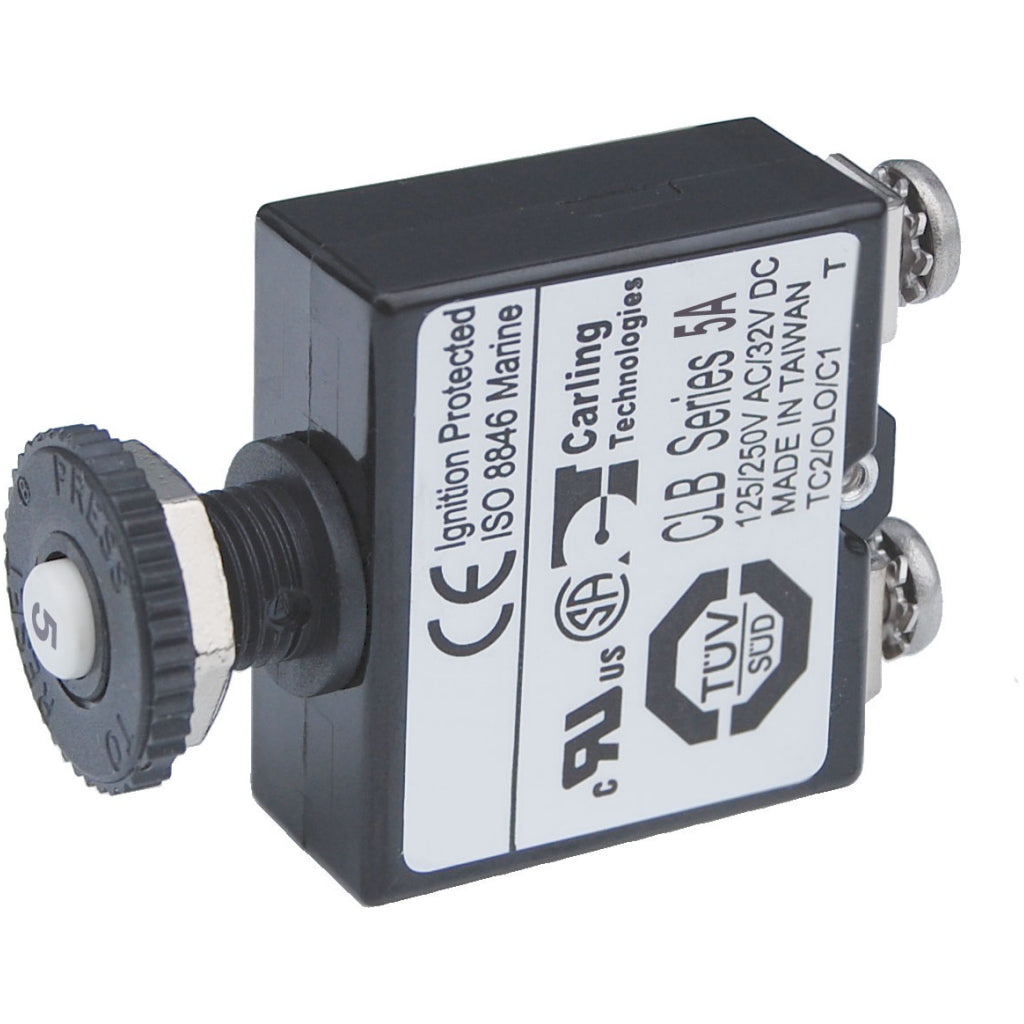

Item# 2130
Features:
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Push-to-reset operation
- “Trip Free” design cannot be held “ON” during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
Specifications :
- Amperage:5A
- Maximum Voltage:32V DC
- Mounting:Panel Mount 3/8-27 UNS
- Circuit Breaker Type:Thermal trip, manual push-button reset only
- Terminal Type:8 Screw
- Interrupt Capacity:3000A 14.7V
- 2500A 28V
- Minimum Operating Temperature:-10° C
- Maximum Operating Temperature:60° C
- Screw Terminal Torque:6 in-lb (0.68 Nm)
- Weight:0.09lb (0.04 kg)
