Item# 7622
Features:
- Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing.

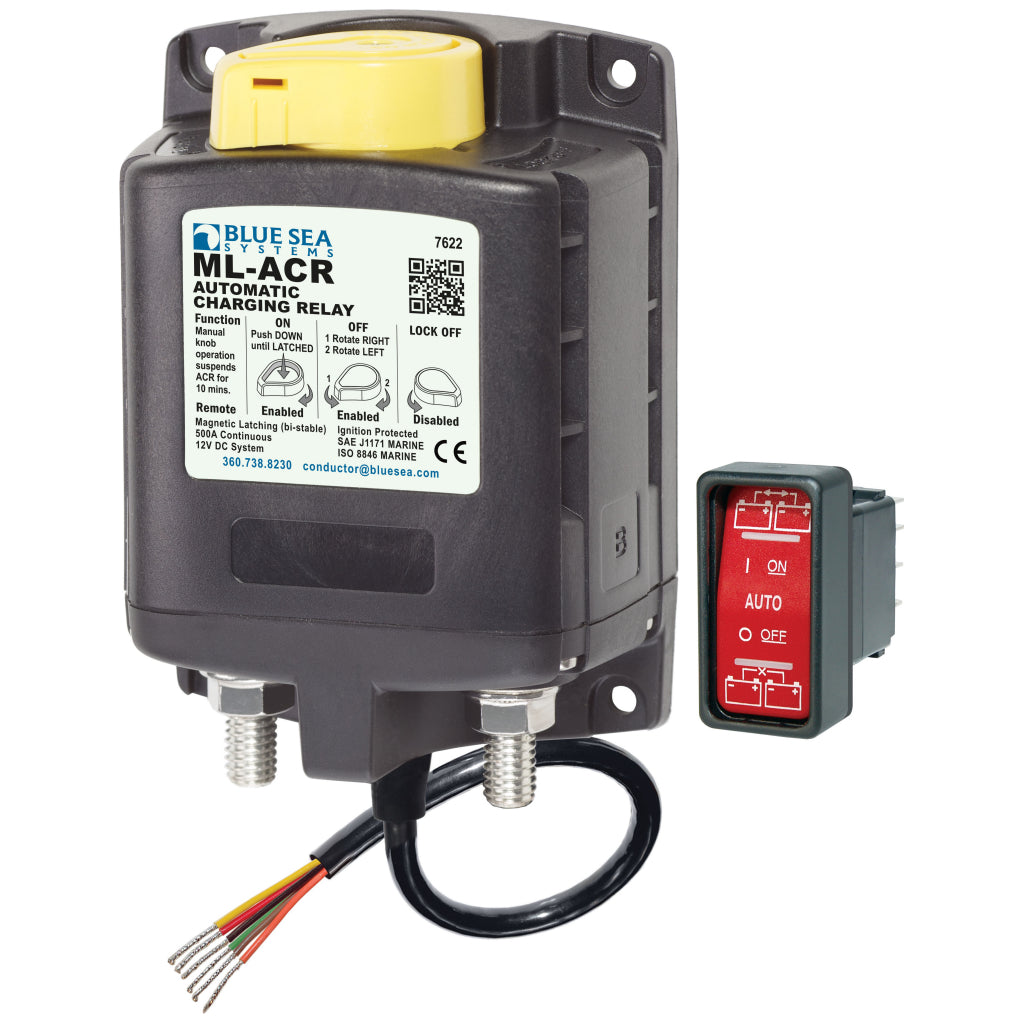

- Includes ML-Series Remote Control Contura Switch PN 2146.
- Automatically manages the charging of two large battery banks.
- Allows paralleling of battery banks for emergency starting.
- 500 Ampere continuous rating to support high-output alternators.
- Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate. current for very short time when changing state.
- Dual sensing—senses charge on both battery banks.
- Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics.
- Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output.
- Senses charging on two battery banks.
- LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation.
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
- 7/8" (22mm) stud length accepts multiple cable terminals.
- Silver alloy contacts provide high reliability for switching live loads
- Label recesses for circuit identification.
Specifications:
- Control Circuit Connection: Tinned Wire
- Nominal Voltage:12V DC
- Manual Control:Yes
- Engine Isolation:Yes
- Mounting:10
- Start Assist: Yes
- Start Isolation:Yes
- Amperage Operating Current:13mA
- Amperage Operating Current when changing state:<7.0A
- Terminal Stud Torque:140 in-lb (15.82 Nm)
- Continuous Rating:500A
- Intermittent Rating:700A (5 min)
- Cranking Rating 30 sec: 1450A DC
- Minimum Operating Temperature:-10° C
- Maximum Operating Temperature: 60° C
- Cable Size to Meet Ratings:4/0 AWG x 2
- Live Current Switching:300A 12V DC
- Stud Material:Tinned Copper
- Switching Cycles:100000
- Terminal Ring Diameter Clearance:1.12in (28.45 mm)
- Terminal Stud Length:1.50in (38.1 mm)
- Terminal Stud Size:3/8" - 16 (M10)
- Wire Size:20 AWG
Relay Contact Position:
- Combine 30 sec:13.5V
- Combine 90 sec:13.0V
- Open 10 sec:12.35V
- Open 30 sec:12.75V
- Open High:16.2V
- Weight:2.06lb (0.93 kg)
