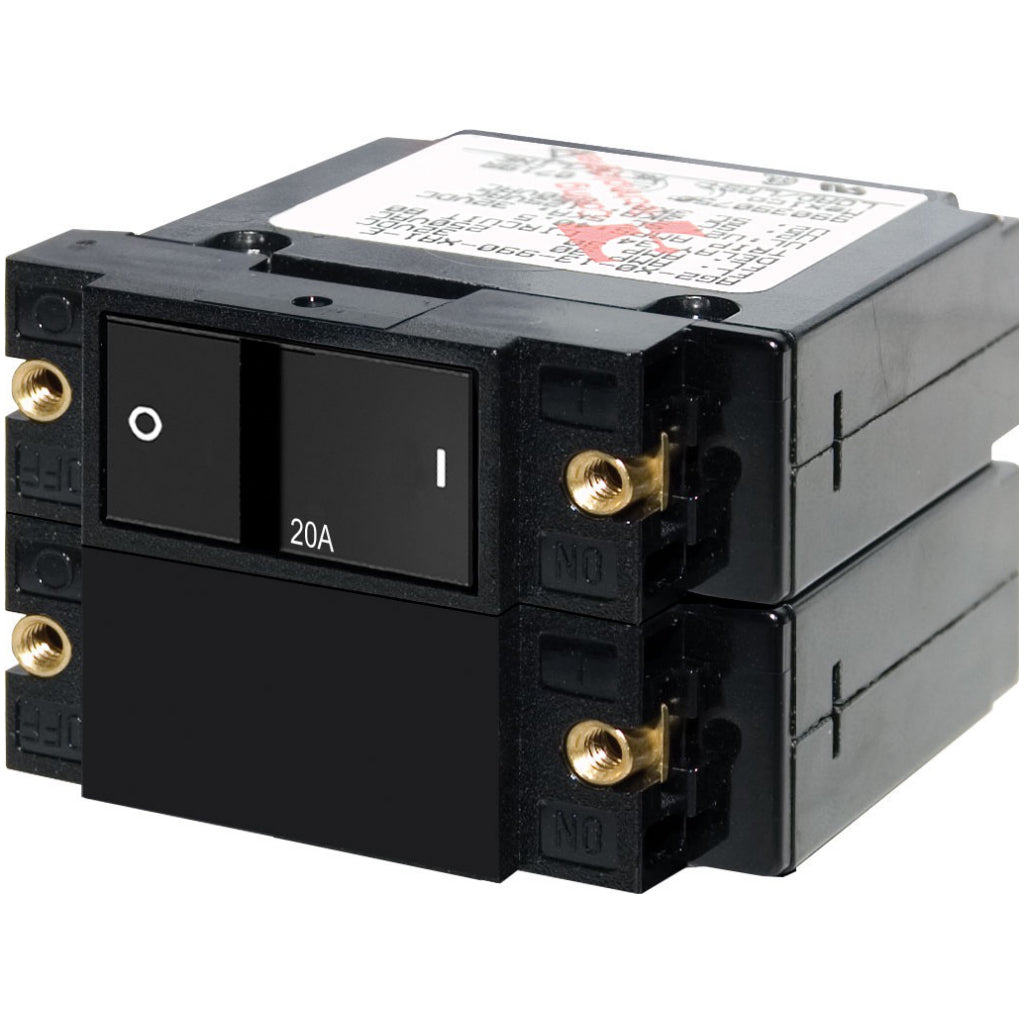

Item# 7413
Features:
- Color actuator indicates “OFF” position.
- International ON/OFF symbols support vertical or horizontal mounting.
Specifications:
- Amperage:
- 20A AC
- 20A DC
- Actuator Style: Flat Rocker
- Poles:2
- Maximum Voltage:
- 120V AC
- 240V AC
- 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity:
- 3000A 240V AC
- 1500A 240V ACTUV
- 5000A 32V DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature:85° C
- Mounting Screw:6-32 Stainless Steel
- Mounting Screw Torque:6 in-lb (0.68 Nm)
- Screw Terminal Torque:14 in-lb (1.58 Nm)
- Switching Cycles:10000
- Terminal Screws:10-32 Stainless Steel
- Weight:0.38lb (0.17 kg)
