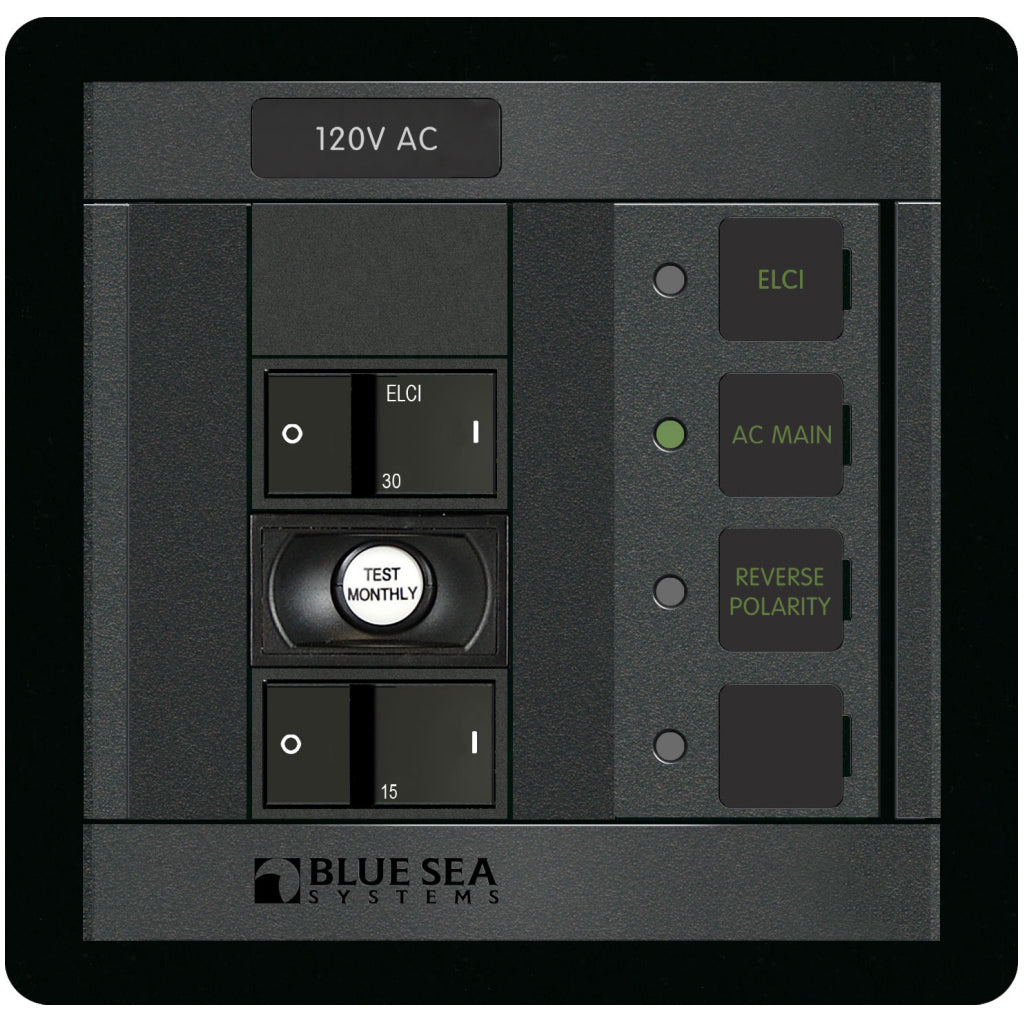

Blue Seas Systems AC 1 Position 360 Panel

SKU: BS1190
$76299

Item# 1190

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • One 15A AC Branch Flat Rocker Circuit Breaker
  • Red " Reverse Polarity" LED
  • Includes 4206 AC Panel Basic Square Format Label Set
  • "ON" indicating LEDs

Specifications:

  • Positions:1
  • Nominal Voltage:120V AC
  • Backlit Label: Green LED
  • Height:4.75in (120.65 mm)
  • Width:4.88in (123.95 mm)
  • Depth:3.99in (101.35 mm)
  • Weight:1.00lb (0.45 kg)
