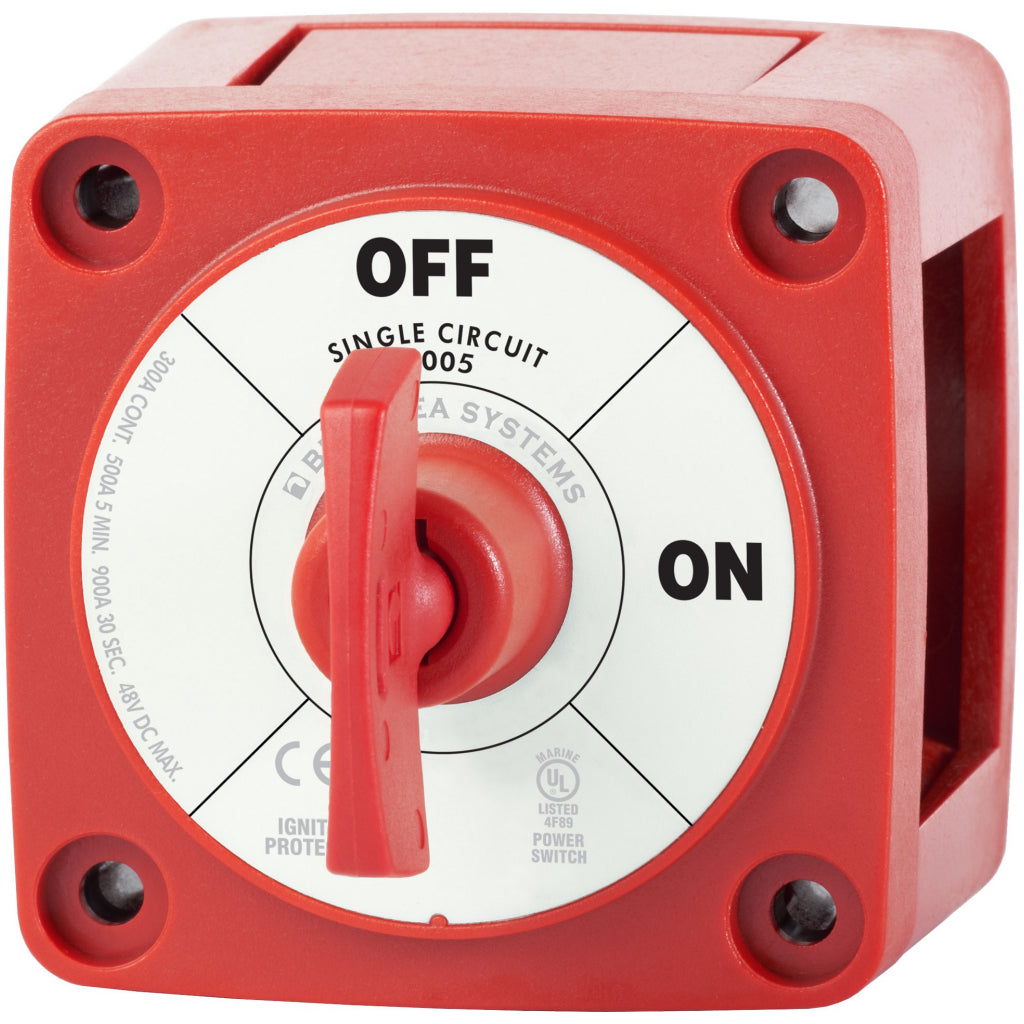

Blue Sea 6005 Mini ON-OFF Battery Switch w/Key-Red

Item# 6005

Features:

• Ignition protected—safe for installation aboard gasoline powered boats.
• Case design allows surface, front panel, or rear panel mounting.
• Isolating cover with snap-on sections protects rear contacts.

Specifications:

• Switch Type: Single Circuit ON-OFF
• Color:Red
• Switch Positions:2
• Battery Combine:No
• Alternator Field Disconnect:No
• Maximum Voltage:48V DC
• Stud Size:3/8"
• Terminal Stud Torque:120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 30 sec: 900A
• Battery Inputs:1
• Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
• Cable Size to Meet Ratings:4/0 AWG (120mm²)
• Mounting Holes:Accept 10 Screw
• Stud Material:Tinned Copper
• Stud Torque:120 in-lb (13.56 Nm)
• Terminal Stud Size:3/8" - 16 (M10)
• Weight:0.62lb (0.28 kg)
