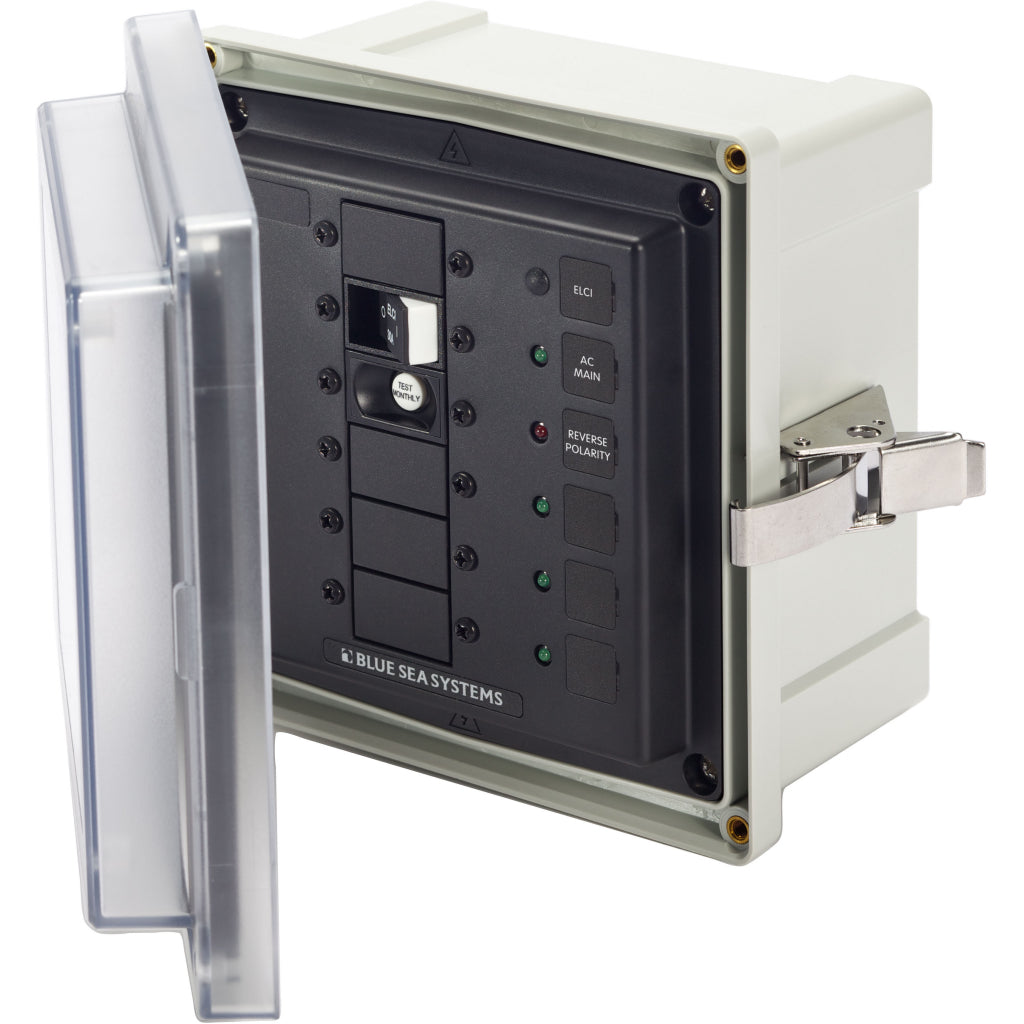

Blue Seas Systems SMS 3 Position Panel Enclosure

Item# 3116

Features:

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Stainless steel mounting hardware included
• Includes waterproof glands

Specifications:

• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature:85° C
• Cover Screws and Hardware:10-32 Stainless Steel
• Enclosure Size:6.0" x 6.0" x 4.0"
• (152mm x 152mm x 102mm)
• Exterior Overall Dimensions:7.6" x 7.4" x 4.7"
• (192mm x 188mm x 120mm)
• Mounting Hardware:1/4" Diameter, 12 (6 mm)
• Weight:7.00lb (3.18 kg)
