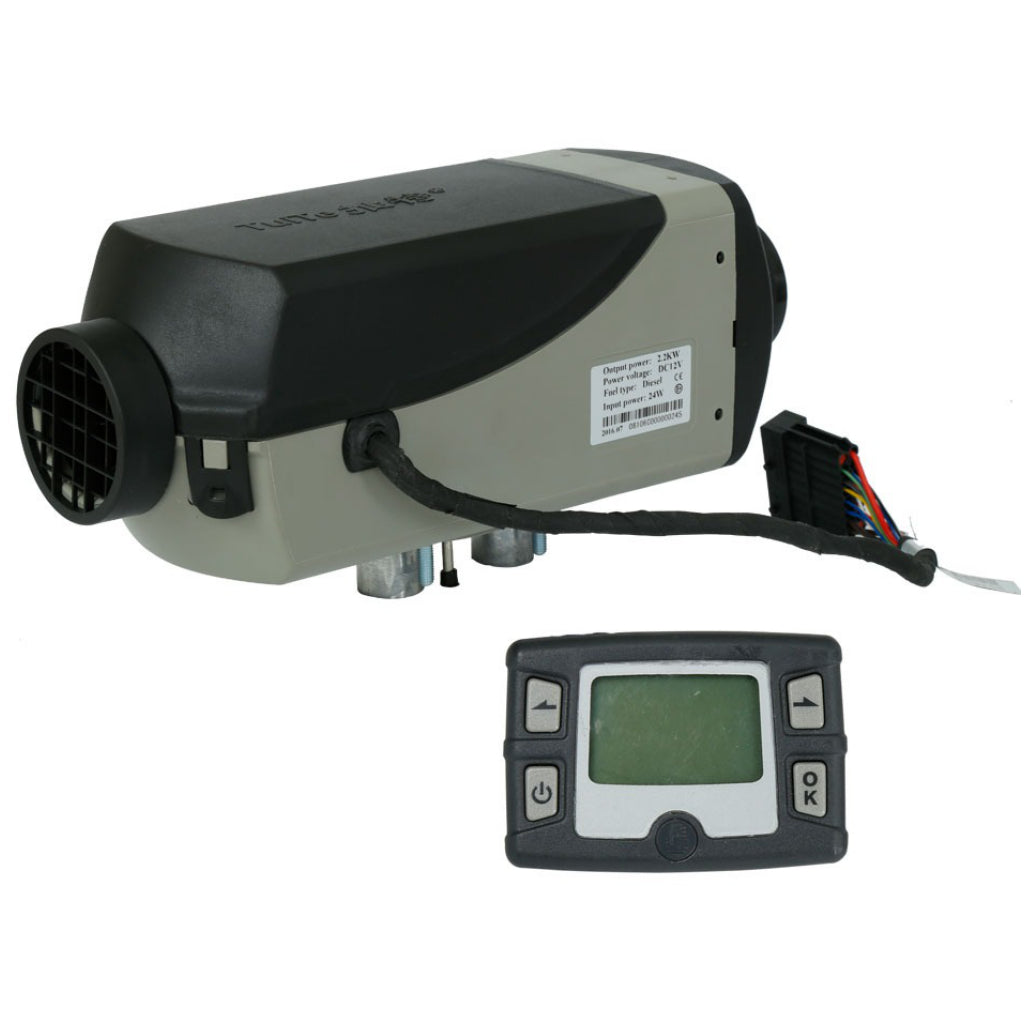

Bison series 2200A is a 2.2kW/7000BTU compact forced air diesel-fired furnace. Powerful, quiet, and very efficient, it’s designed for air heating applications in cabs/bunks of commercial vehicles, boats and RV’s. This no-idle air heater comes in 12V DC and 24VDC versions. This kit has all the necessary hardware for a basic installation of the unit: fuel line with couplings and clamps, air ducting and one outlet, mounting plate, screws, straps, etc. The wire harness is fully assembled, with high quality connectors ready to be plugged in.
2.2kW/7000BTU no-idle forced air diesel-fired heater kit with programmable digital timer and all required hardware for basic installation. Includes 1m air duct with one register, fuel pump with 7m fuel line, fuel pickup tube and a tee, wiring harness straps, screws, clamps and straps, exhaust, and intake tubing.
- Heat Output: BTU/hr (kW/hr):2900(0.85) – 7506(2.2)
- Diesel Fuel Consumption: U.S Gal./hr (L/hr)0.03 (0.1) – 0.07 (0.28)
- Electric Power Consumption: Amps (Watts) 12VDC 0.58 (7) – 2.83 (34)
- Electric Power Consumption: Amps (Watts) 24VDC 0.29 (7) – 1.42 (34)
- Voltage Operating Range: Volts DC (for 12V models) 10.5 – 16 with Low and High Voltage Protection
- Voltage Operating Range: Volts DC (for 24V models) 21 – 32 with Low and High Voltage Protection
- Operating Modes: Set point – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection – Adjustable Min. to Max. Air Circulation / Ventilation – No Heat, Fan Only
- Unit Dimensions: LxWxH, Inches (mm) 12.21 x 4.53 x 4.80 (310 x 115 x 122)
- Unit Weight: lbs (kg) 5.95 (2.7)
