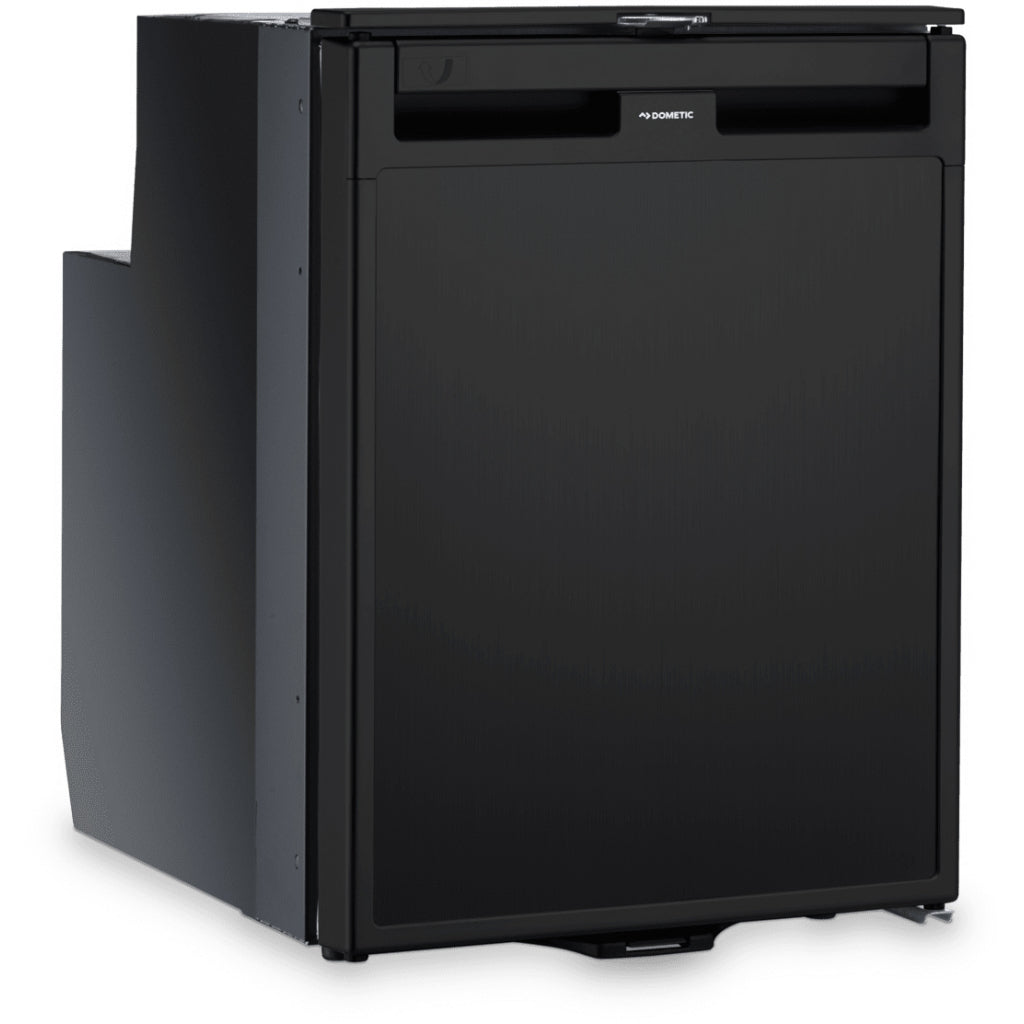

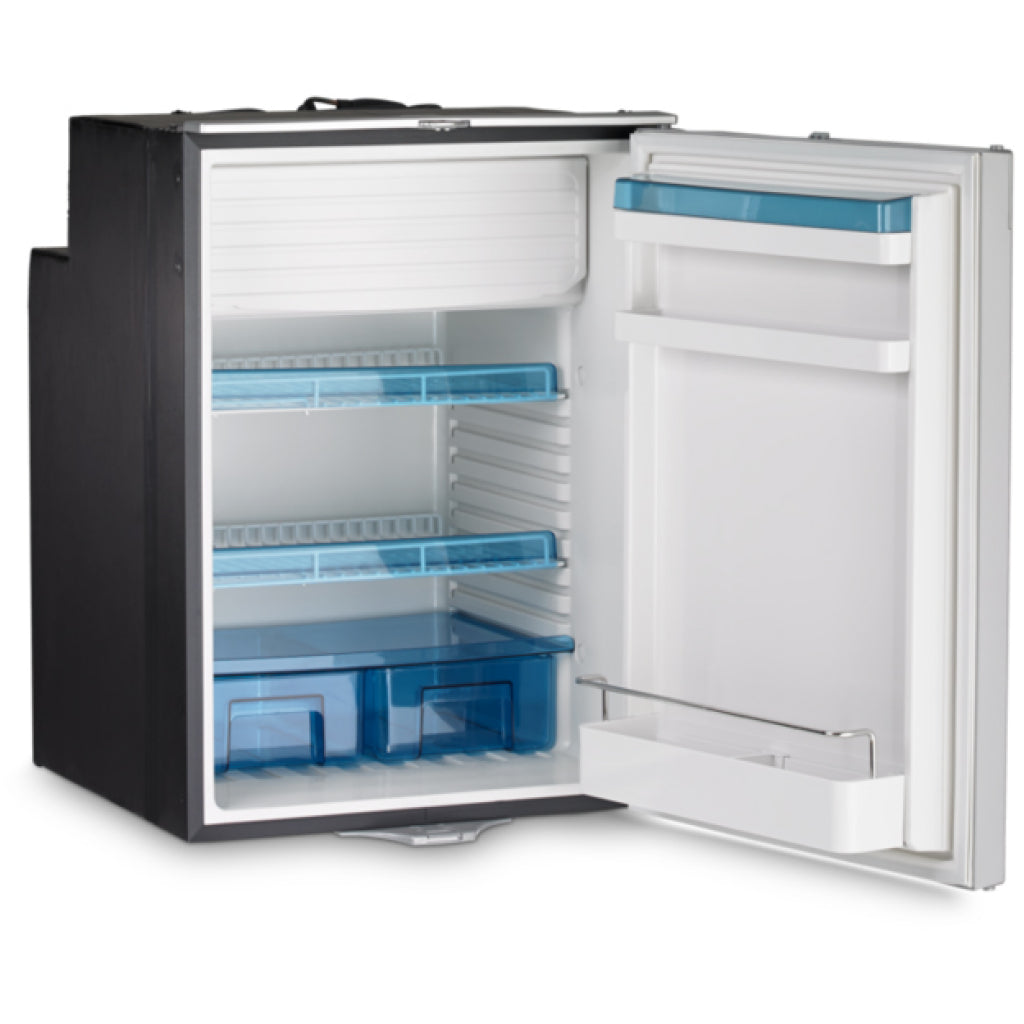

With many innovative features, the CRX is a durable built-in refrigerator that is quiet, flexible and efficient. It is available in five sizes with storage capacities from 1.6 to 4.6 cu. ft.

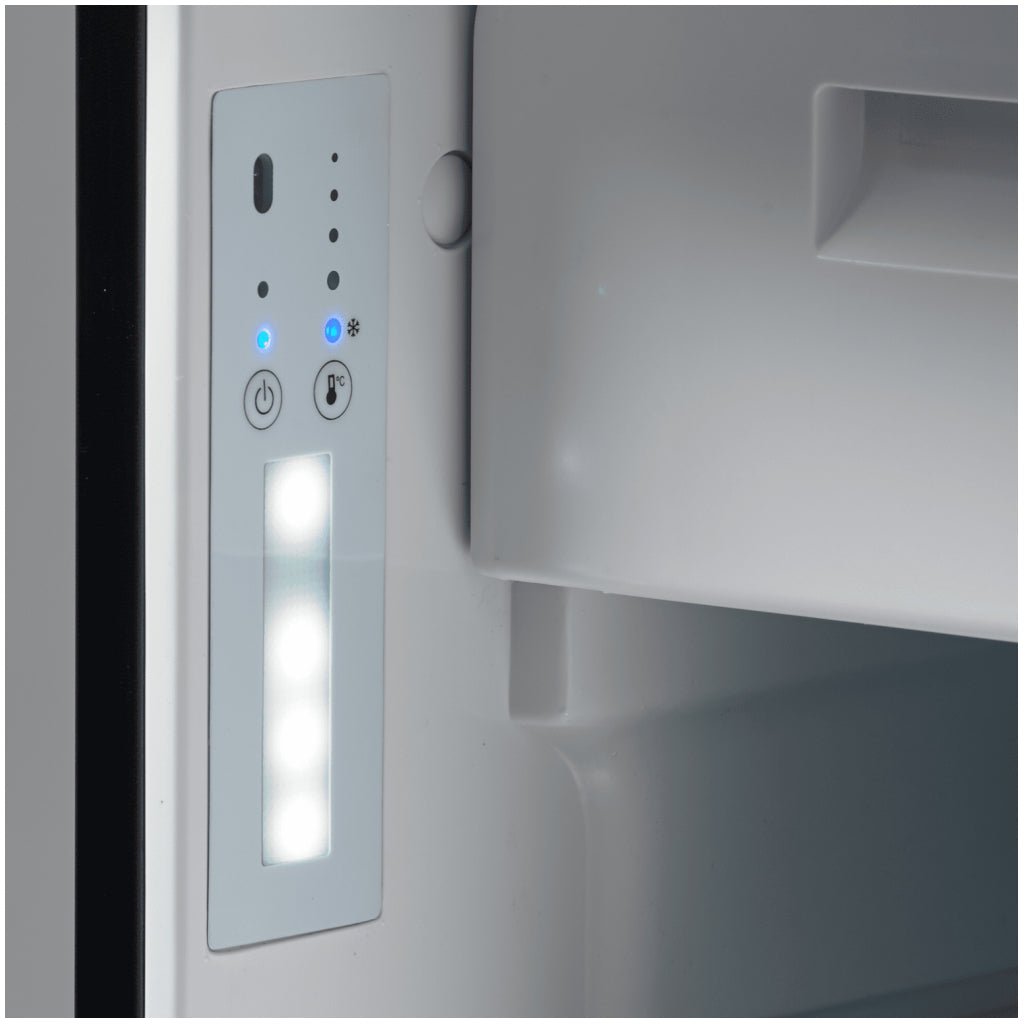

The CRX is the first marine fridge to have an electronic control panel that fits flush into the side wall to provide more storage space and is within easy reach to operate. An infrared (IR) sensor replaces the less-reliable mechanically activated switch for illuminating the interior. The panel also contains soft-touch buttons for power and temperature setting, a bright LED light for illumination, a power-indicator LED, and an error-indicator LED that flashes system diagnostic codes.
The powerful speed-controlled compressor reduces noise when operating at the temperature set point. At start-up, the compressor runs at mid speed, switches to high speed for temperature pull down, then runs at a quiet low speed while maintaining the set point. The cooling system is enhanced with a tube and fin condenser that provides greater performance, durability, and corrosion resistance over the traditional wire condenser. A large fan provides better cooling performance, especially in high ambient temperatures.
Designed to eliminate vibration and enhance durability, the CRX has assured clearance between components and tubing, and a foamed mounting plate gives all components a solid and quiet mounting base.
CRX refrigerators with black or silver finish include a mounting flange.
- Total Storage Capacity (l/cf ): 104 l / 3.7 cf
- Voltage AC: 12-24 VDC
- Voltage AC: 110-220 VAC / 50-60 Hz
- Amps @ 12VDC: 6.2
- Amps @ 24VDC: 3.0
- Amps @ 100VAC: 0.82
- Amps @ 240VAC: 0.34
- Overall Flush-Mount Flange
- Dimensions (H x W x D): 30.5 x 23.375 x 22 in.
- (775 x 594 x 559 mm)
- Flush-Mount Flange Cutout
- Dimensions (H x W x D): 29.625 x 21.625 x 22 in.
- (753 x 550 x 559 mm)
- Net Weight (lbs/kg):62 lbs / 28 kg
