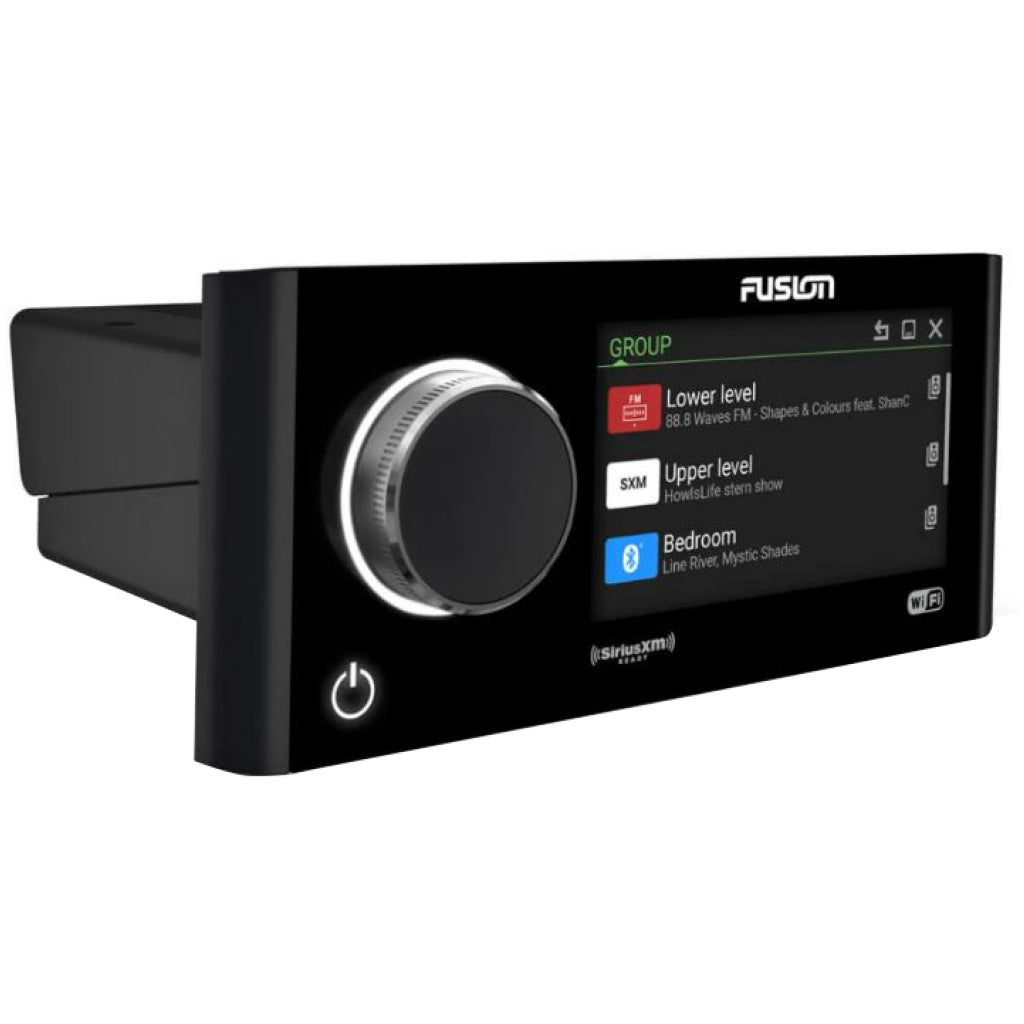

Fusion Apollo Marine Stereo MS-RA770

Experience audio excellence with the Fusion Apollo RA770 marine stereo, the world's first touchscreen model with built-in Wi-Fi and AirPlay 2 software. The True-Marine design and IPX6- and IPX7-rated water-resistant front panel offer protection from the marine elements.

Fusion DSP optimizes audio signals for superior sound quality in any environment, and the free Fusion-Link app simplifies setup and updates. With Wi-Fi onboard, the Apollo RA770 and its companion SRX400 can connect wirelessly, reducing installation time and complexity. Enjoy a variety of source options, including AirPlay 2, Bluetooth, UPnP, and more.

• Physical dimensions: Stereo dimensions (H x W x D): 3.23" x 7.56" x 4.7" (82 x 192 x 119.4 mm)
• Weight: 26.5 oz (750 g)
• Water rating: IPX6 and IPX7 (Front panel only, when properly installed)
• Power input: 10.8-16 VDC
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Current (max.): 15 A
• NMEA 2000 LEN: 1 (50 mA)
• Bluetooth wireless range: Up to 30 ft (10 meters)
• ANT wireless range: Up to 10 ft (3 meters)
• Wireless frequencies/protocols: Wi-Fi 2.4 GHz 15 dBm nominal, Bluetooth 2.4 GHz 10 dBm nominal, ANT 2.4 GHz 4 dBm nominal
• Compass-safe distance: 5.9" (150 mm)
• Display: 4.3" capacitive touch glass color LCD
• Built-in amplifier: Class-D (2 Ohm stereo-stable)
• Peak power: 280 W
• Rated power output (2 Ohm): 43 W rms x 4 14.4 V input < 10% THD
• Rated power output (4 Ohm): 26 W rms x 4 14.4 V input < 10% THD
• Built-in Digital Signal Processing: yes (with preconfigured DSP profiles)
• PartyBus-Network capabilities: yes (wired or wireless)
• Fusion-Link control: yes(with MFD, smartphone and Garmin watch)
• Multi-Zone technology: 4 zones
• Built-in Wi-Fi: yes
• Bluetooth wireless technology: yes
• ANT wireless technology: yes
• SiriusXM-ready: yes (requires SiriusXM Connect vehicle tuner)
• DAB ready: yes (requires DAB100A antenna module)
• Optical audio input: yes
• NRX remote compatibility: yes
• Multi-language interface: Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
• Software updates: Over-the-air software updates via the Fusion-Link app, USB
• Warranty: 3 years
• Sources: AM / FM / Bluetooth / Apple AirPlay 2 / digital optical input / USB audio / iPhone / iPod / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB ready (available in Europe and Australia only)

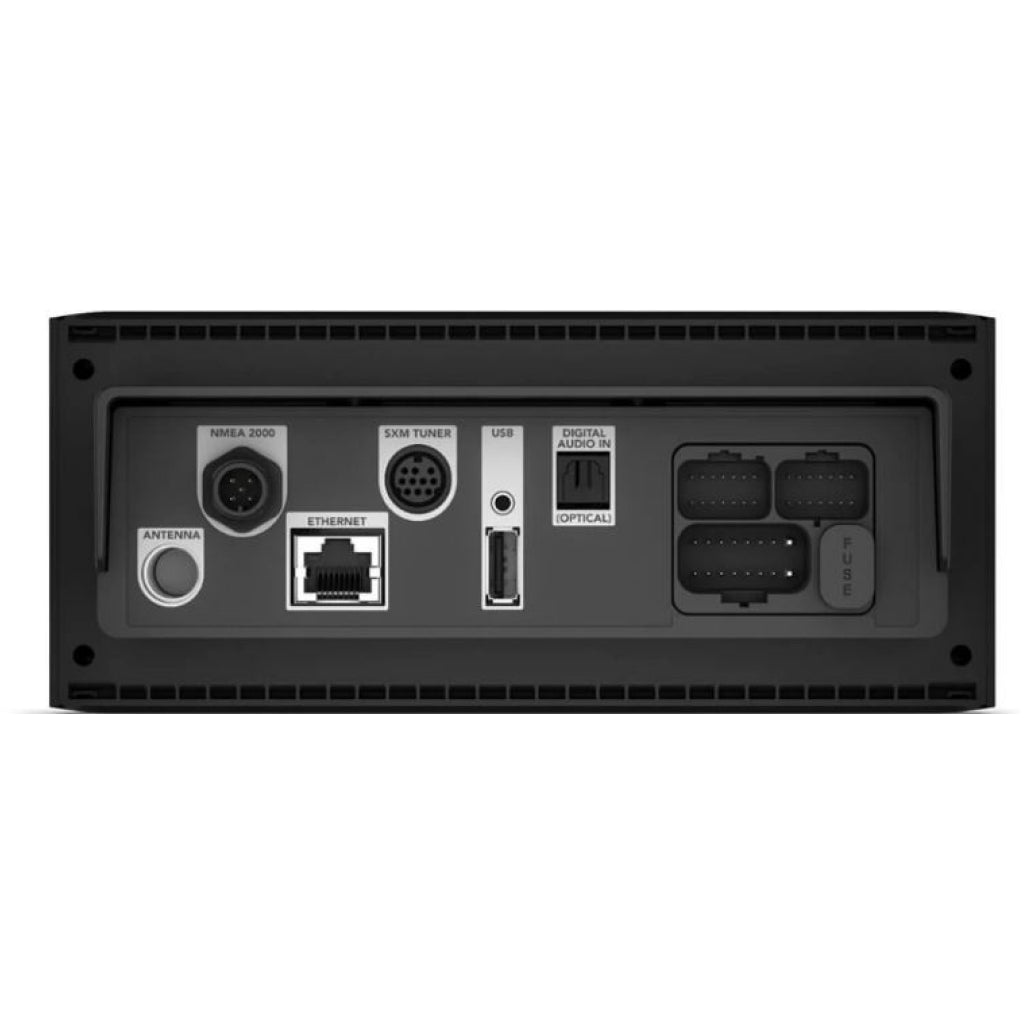

• Auxiliary input: Two RCA inputs (AUX1, AUX2)
• Optical audio input: One digital optical input (SPDIF) port
• Ethernet: One Ethernet port
• NMEA 2000: One NMEA 2000 port
• USB 2.0: One USB 2.0 port
• SiriusXM satellite radio: One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
• AM/FM radio: One Motorola antenna connector port
• Speaker: 4 x speaker connections (2 zone amplified)
• RCA pre-out (left, right and subwoofer): 4 zones (requires external amplification)
• Line out: 4 (1 x L R per zone, requires external amplification)
• Subwoofer out: 1 x mono output (requires external amplification)
