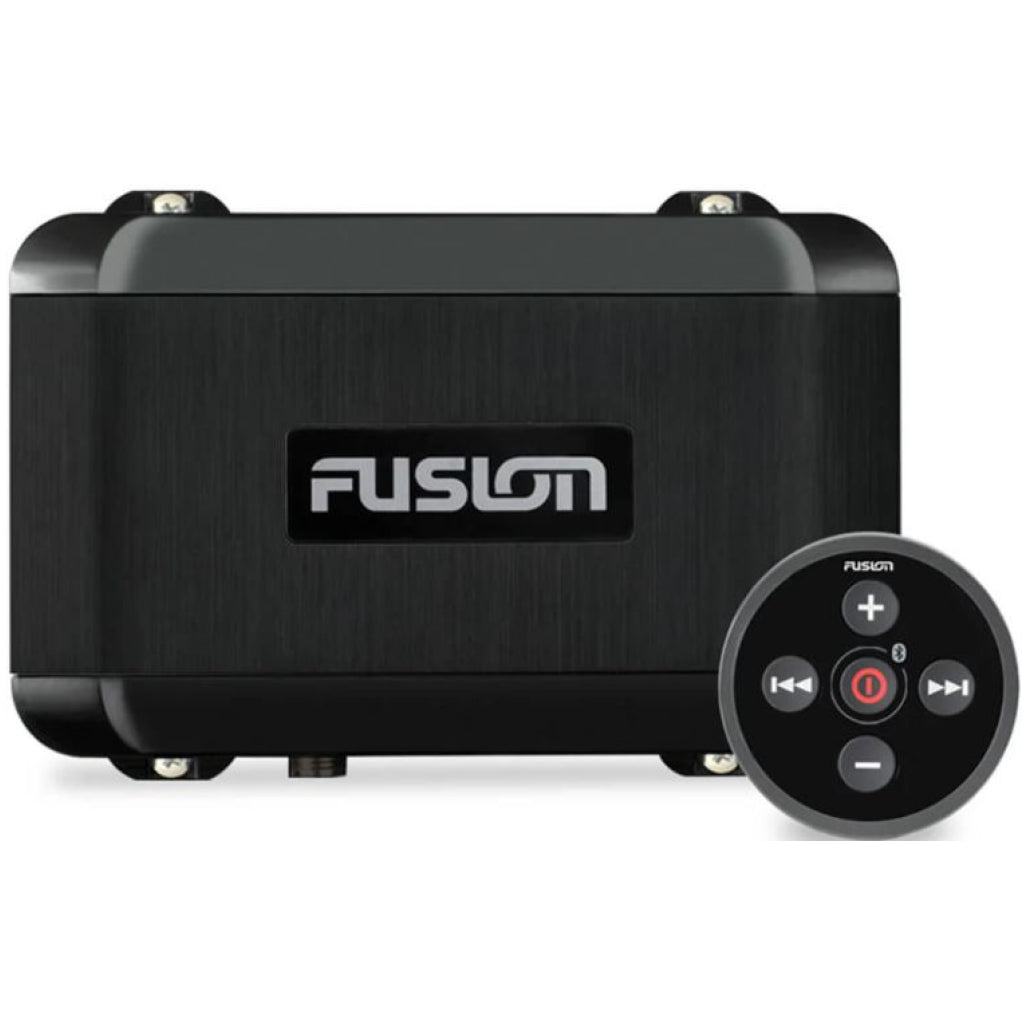

The Fusion MS-BB100 is a value-packed black box entertainment solution for those with limited helm space. Its compact design allows for mounting in out-of-the-way locations like storage lockers and helm consoles. An included IPX7-rated wired remote can be flush-mounted or integrated into the helm. Enjoy a variety of source options, including Bluetooth, AM/FM radio, AUX, and USB connections.
- Physical dimensions: Black Box (HxWxD): 2.63" x 6.10" x 3.70" (60 x 155 x 94 mm), Remote (Diameter x Depth): 2.56" x 2.13" (65 x 54 mm)
- Water rating: black box IPX3 (when properly installed), remote: IPX7 (front panel only, when properly installed)
- Power input: 10.8-16 VDC
- Operating temperature range: 32° to 122° F (0° to 50° C)
- Current (MAX.): 15 A
- Fuse: 15 A
- NMEA 2000 LEN: 1 (50 mA)
- Bluetooth wireless range: Up to 30 ft (10 m)
- Ant wireless range: Up to 10 ft (3 m)
- Wireless frequencies/protocols: Bluetooth 2.4 GHz 1.9 dBm nominal, ANT 2.4 GHz 1.9 dBm nominal
- Compass-safe distance: 5.9" (150 mm)
- Built-in amplifier: Class-AB
- Peak power: 200 W
- Rated power output (4 OHM): 26 W rms x 4 14.4 V input < 10% THD
- FUSION-LINK Control: yes (MFD, smartphone and Garmin watch)
- MULTI-ZONE Technology: 2 zones
- DAB READY: yes (requires DAB100A antenna module)
- Software updates: USB
- Warranty: 1 year
- Sources: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/ DAB ready (available in Europe and Australia only)
- Auxiliary input: 1 RCA input (AUX)
- NMEA 2000: 1 port
- USB 2.0: 1 port
- AM/FM Radio: 1 Motorola antenna connector port
- Speaker: 2 connections (2 zone amplified)
- RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER): 2 zones (requires external amplification)
- Line out: 2 (1 x L R per zone, requires external amplification)
- Subwoofer out: 1 x mono output (requires external amplification)
