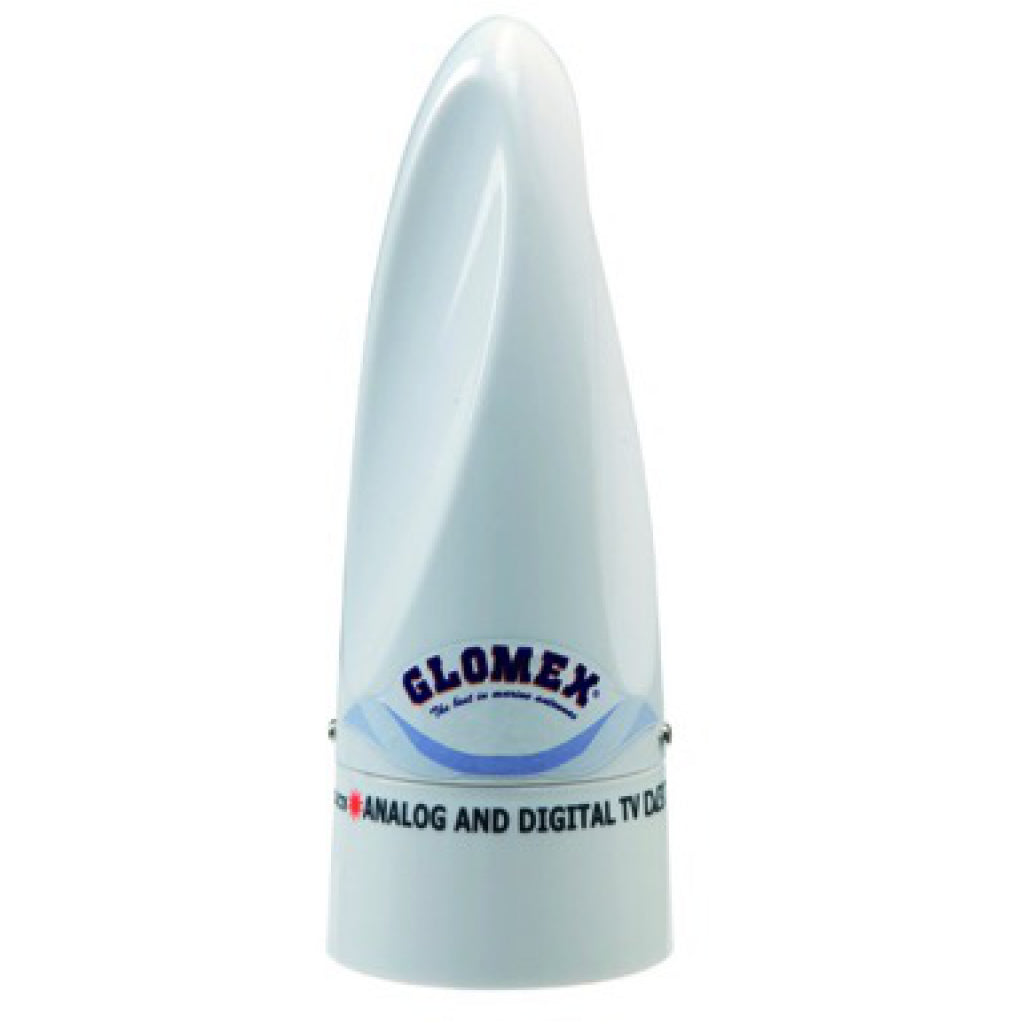

Glomex Avior TV/FM Omnidirectional Antenna

Features:

• The improved amplifier allows the Avior to have an increase in gain
• Receives vertical and horizontal polarized TV signals
• The amplifier, coupled to the power injector has 2 independent outputs for TV and radio
• Allows the reception of VHF/UHF and FM frequencies
• The Avior can be installed on any kind of vessel

Package Includes:

• Glomex VT300 Avior TV/FM Omnidirectional Antenna
• Power Injector
• FM Splitter
• 33 foot Coaxial Cable (Connects the antenna to the injector)
• 5 foot Coaxial Cable (Connects the injector to the TV)
• Nylon Mount

Specifications:

• Antenna Diameter: 4"
• Antenna Height: 8"
• Base Diameter: 1"
• Radome Material: U.V. resistant ASA
• ASA Angle of Reception: 360°
• Polarization: Horizontal / Vertical
• Impedance: 75 ohms
• Frequency Range: 40/890 MHz
• Gain Average: 24.5 dB
• Noise Factor: 1.7 dB
• Power Consumption: 20 mA
• Power Supply: 12 Volts DC
• Termination: F-Type Female
• Included Connector: F-Type Male gold plated connector
