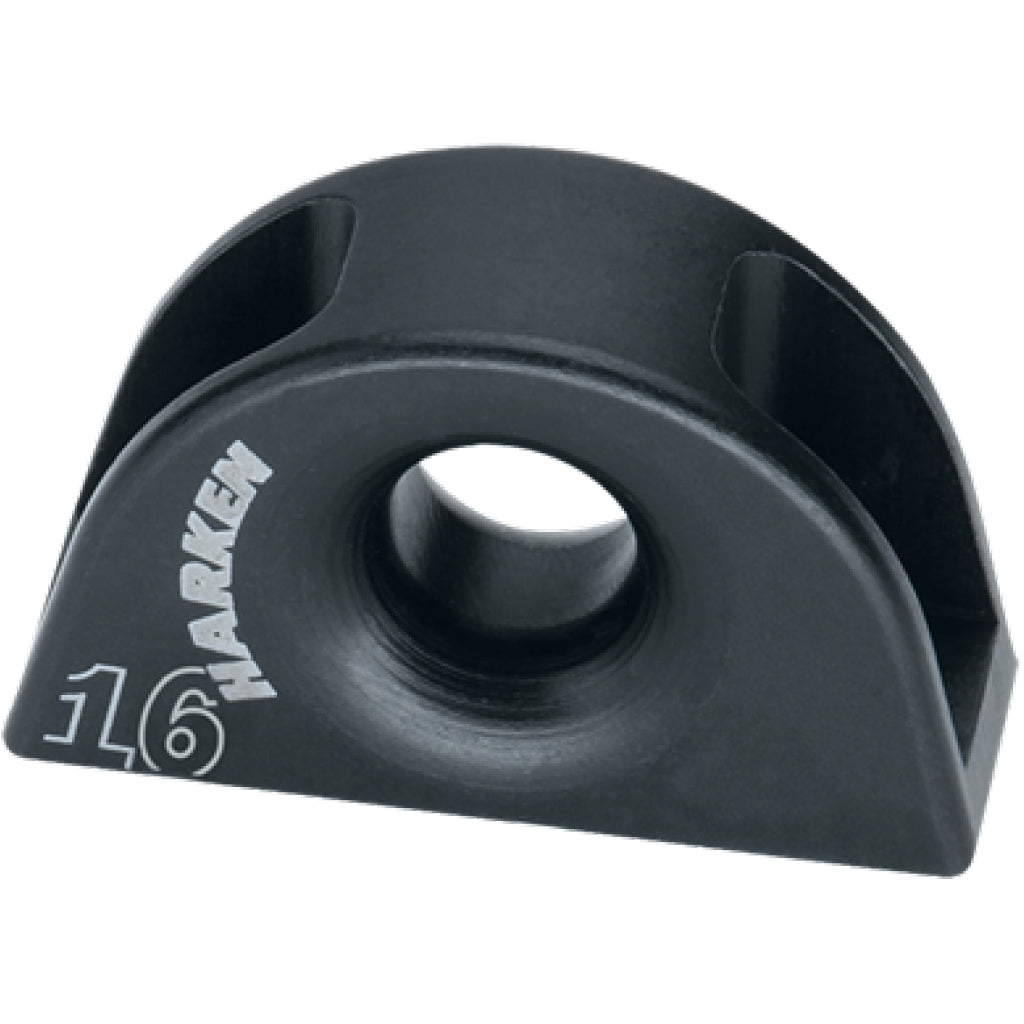

Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors.

These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability.

Smooth surfaces and radiused center holes minimize line wear.

Specifications

• Length (mm): 60 mm
• Length (in): 2 3/8 in
• Width (mm): 22 mm
• Width (in): 7/8 in
• Height (mm): 31.8 mm
• Height (in): 1 1/4 in
• Maximum line Ø (mm): 14 mm
• Maximum line Ø (in): 9/16 in
• Center hole Ø (mm): 16 mm
• Center hole Ø (in): 5/8 in
• Weight (g): 47 g
• Weight (oz): 1.66 oz
• Fasteners (mm): 8 CH, 8 HH, 8 SH mm
• Fasteners (in): 5/16 CH, 5/16 HH, 5/16 SH in
• Maximum working load (kg): 1816 kg
• Maximum working load (lb): 4000 lb
• Breaking load (kg): 3632 kg
• Breaking load (lb): 8000 lb
• A (mm): 37 mm
