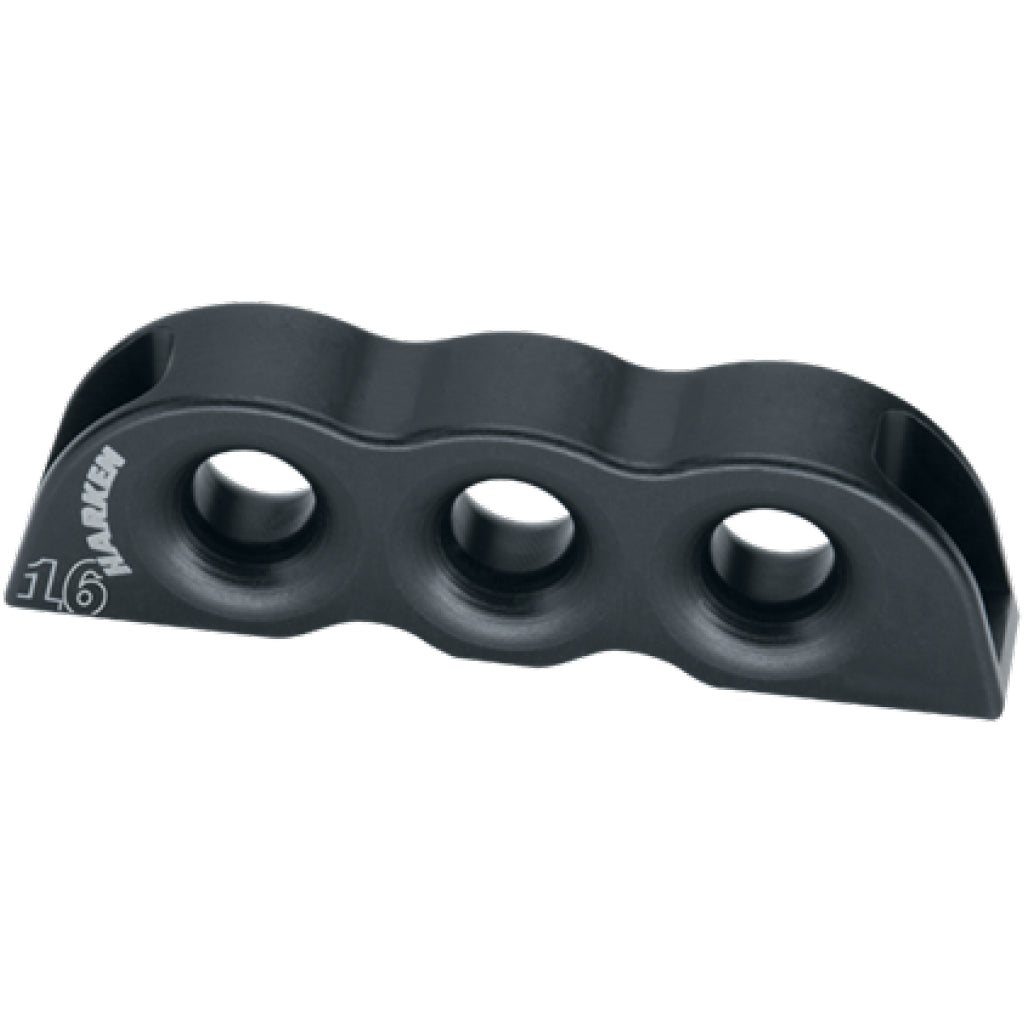

Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors.

These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability.

Smooth surfaces and radiused center holes minimize line wear.

Specifications

Length (mm) 121 mm Length (in) 4 3/4 in Width (mm) 22 mm Width (in) 7/8 in Height (mm) 31.8 mm Height (in) 1 1/4 in Maximum line Ø (mm) 14 mm Maximum line Ø (in) 9/16 in Center hole Ø (mm) 16 mm Center hole Ø (in) 5/8 in Weight (g) 112 g Weight (oz) 3.95 oz Fasteners (mm) 8 CH, 8 HH, 8 SH mm Fasteners (in) 5/16 CH, 5/16 HH, 5/16 SH in Maximum working load (kg) 1816 kg Maximum working load (lb) 4000 lb Breaking load (kg) 3632 kg Breaking load (lb) 8000 lb A (mm) 98 mm
