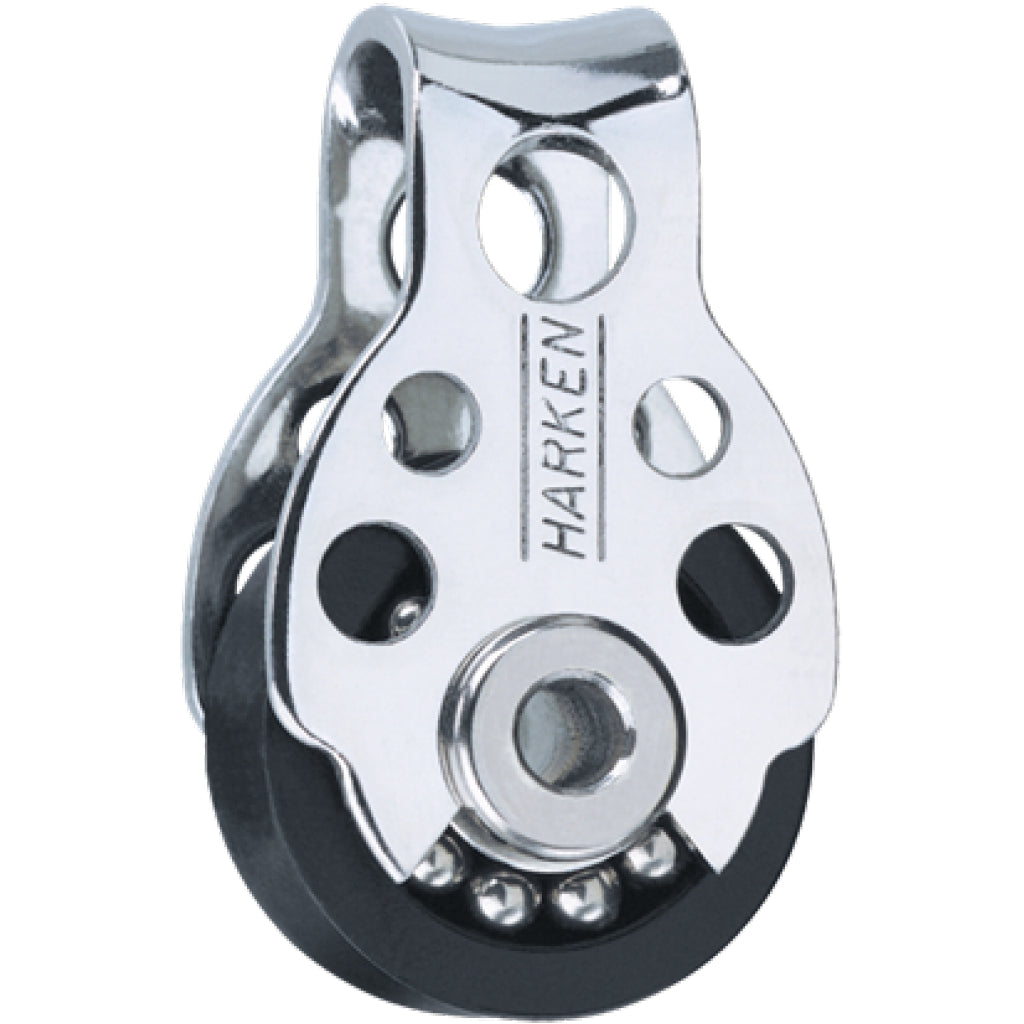

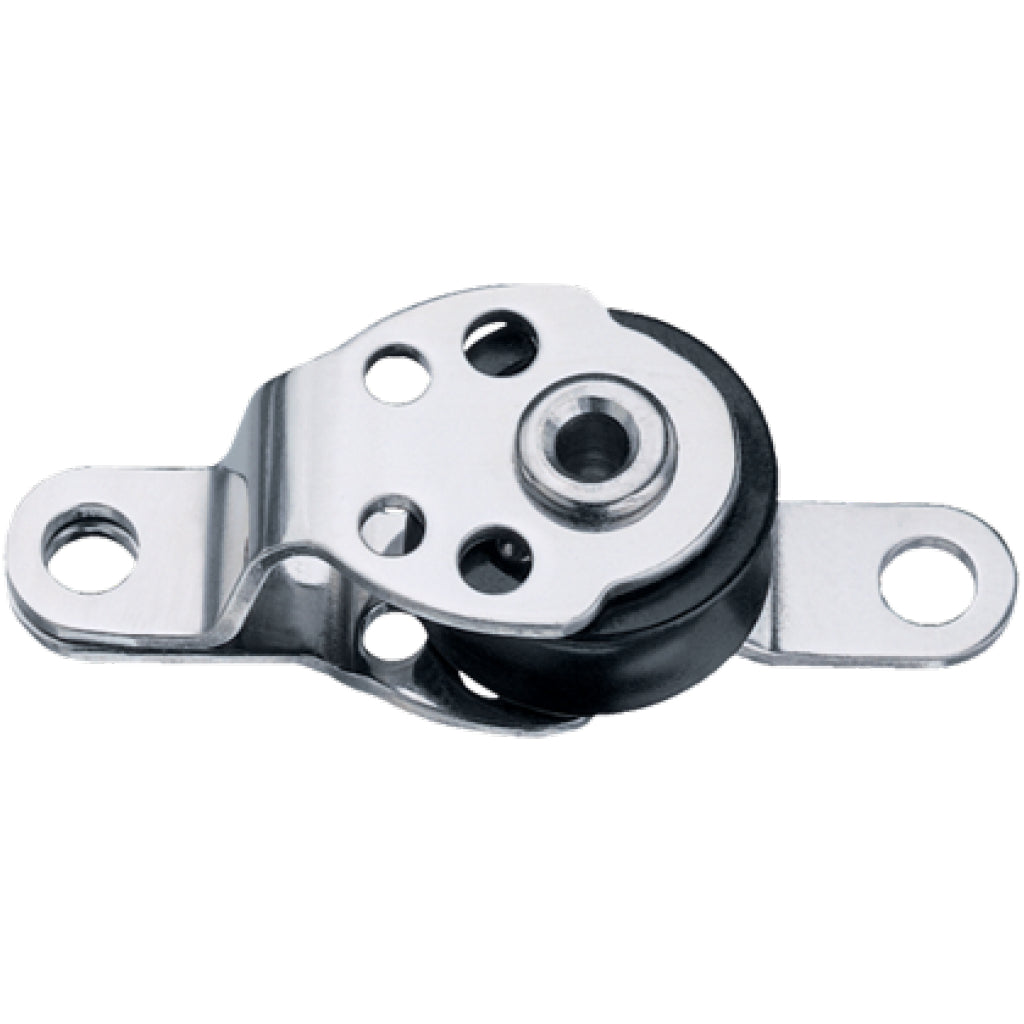

The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies.
The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
Specifications
- Sheave Ø (mm): 16 mm
- Sheave Ø (in): 5/8 in
- Length (mm): 46 mm
- Length (in): 1 13/16 in
- Weight (g): 12 g
- Weight (oz): .44 oz
- Maximum line Ø (mm): 5 mm
- Maximum line Ø (in): 7/32 in
- Fasteners (mm): 4 RH mm
- Fasteners (in): #8 RH in
- Maximum working load (kg): 113 kg
- Maximum working load (lb): 250 lb
- Breaking load (kg): 544 kg
- Breaking load (lb): 1200 lb
