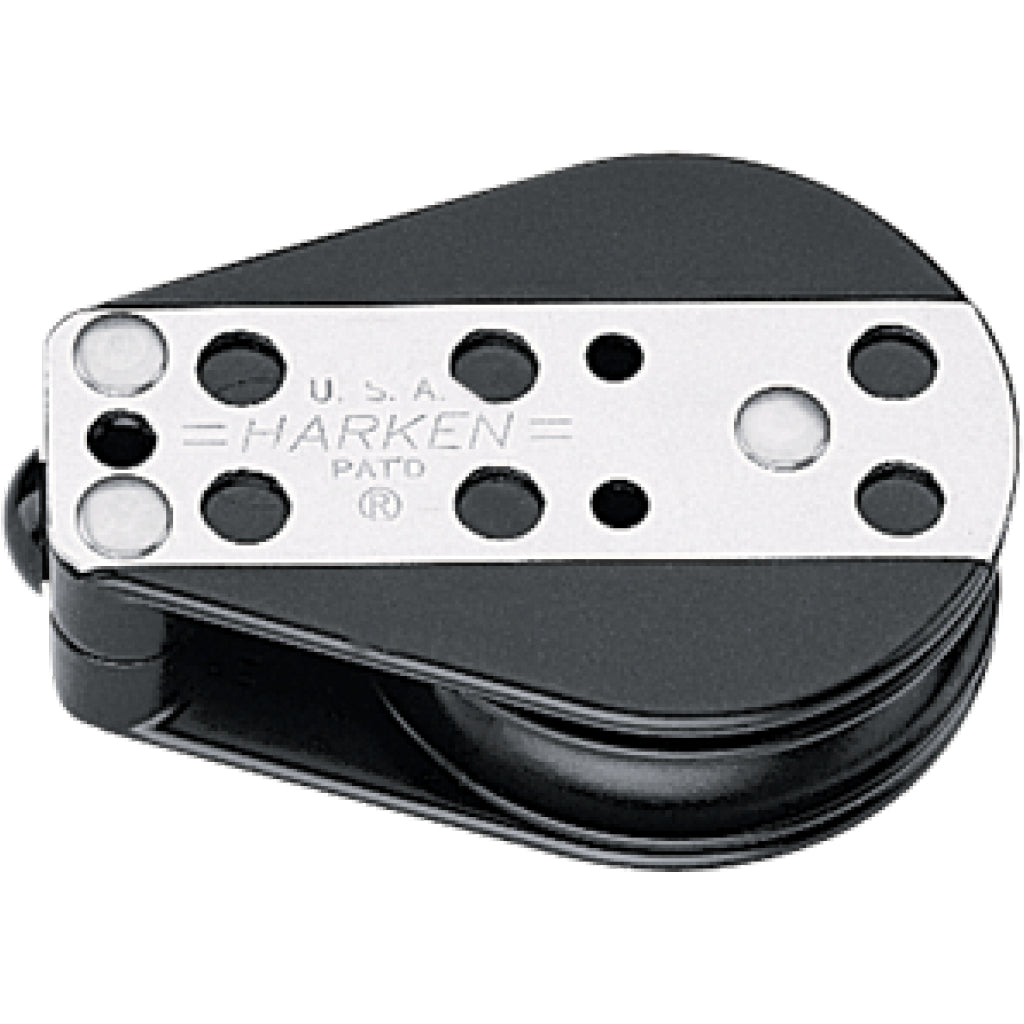

Harken 2.25" Cheek Block

The 2.25 in (57 mm) blocks are compact and lightweight, with fast trim and release under high or low loads. Perfect for dinghies, scows, beachcats and iceboats, as well as small offshore racers and cruisers.

Specifications

• Footnote: Includes fasteners and mounting pad.
• Sheave Ø (mm): 57 mm
• Sheave Ø (in): 2 1/4 in
• Length (mm): 83 mm
• Length (in): 3 1/4 in
• Weight (g): 142 g
• Weight (oz): 5 oz
• Maximum line Ø (mm): 12 mm
• Maximum line Ø (in): 7/16 in
• Fasteners (mm): 4 RH mm
• Fasteners (in): #8 RH in
• Maximum working load (kg): 227 kg
• Maximum working load (lb): 500 lb
• Breaking load (kg): 1134 kg
• Breaking load (lb): 2500 lb
