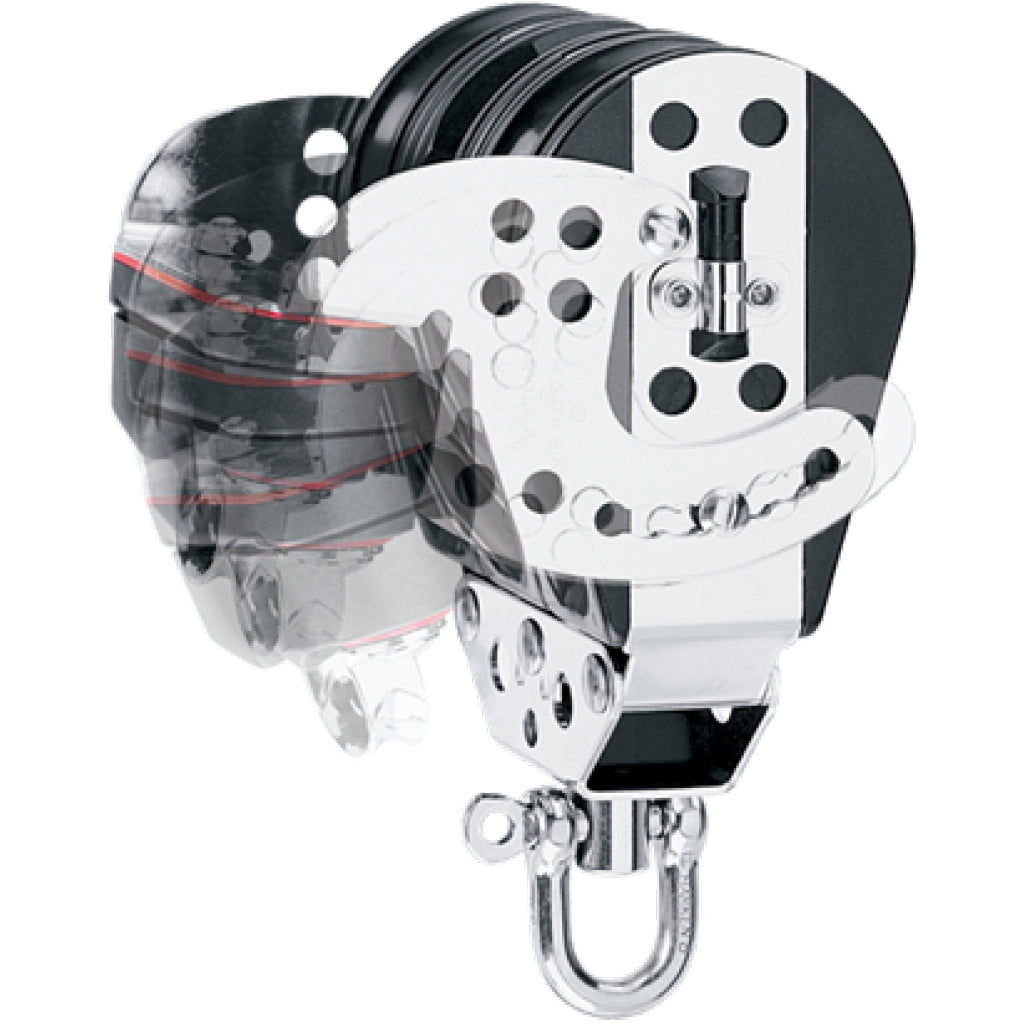

Harken 2.25" Hexa-Cat Cam Cleat Swivel Base Block

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control.

A switch on the side engages and disengages the ratchet mechanism. Combine the 193 and 170 Hexa-Cat bases with Big Bullet or 2.25 in (57 mm) blocks for purchases from 5:1 to 8:1.

Specifications

• Sheave Ø (mm): 57 mm
• Sheave Ø (in): 2 1/4 in
• Length (mm): 146 mm
• Length (in): 5 3/4 in
• Weight (g): 340 g
• Weight (oz): 12 oz
• Shackle pin Ø (mm): 6 mm
• Shackle pin Ø (in): 1/4 in
• Maximum line Ø (mm): 10 mm
• Maximum line Ø (in): 3/8 in
• Breaking load (kg): 1134 kg
• Breaking load (lb): 2500 lb
