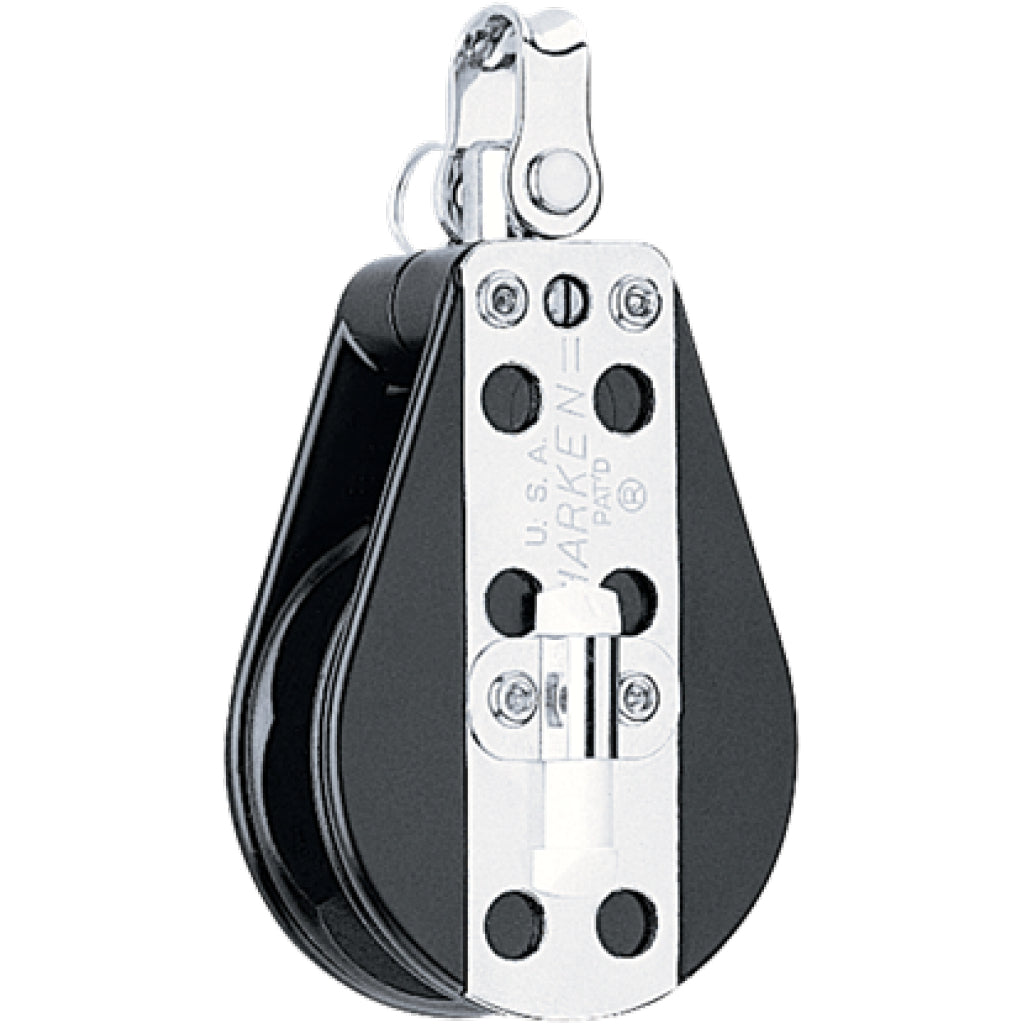

Harken 2.25" Single Swivel Port Hexaratchet Block

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism. Use the 043 or 044 reverse ratchets with the 019 and 009 singles or 050 single with becket on spinnaker and jib sheets where ratchets rotate in opposite directions and on/off switches face up.

Specifications

Sheave Ø (mm) 57 mm Sheave Ø (in) 2 1/4 in Length (mm) 108 mm Length (in) 4 1/4 in Weight (g) 142 g Weight (oz) 5 oz Shackle pin Ø (mm) 5 mm Shackle pin Ø (in) 3/16 in aximum line Ø (mm) 10 mm Maximum line Ø (in) 3/8 in Maximum working load (kg) 227 kg Maximum working load (lb) 500 lb Breaking load (kg) 907 kg Breaking load (lb) 2000 lb Holding power 10:1  Turns counterclockwise
