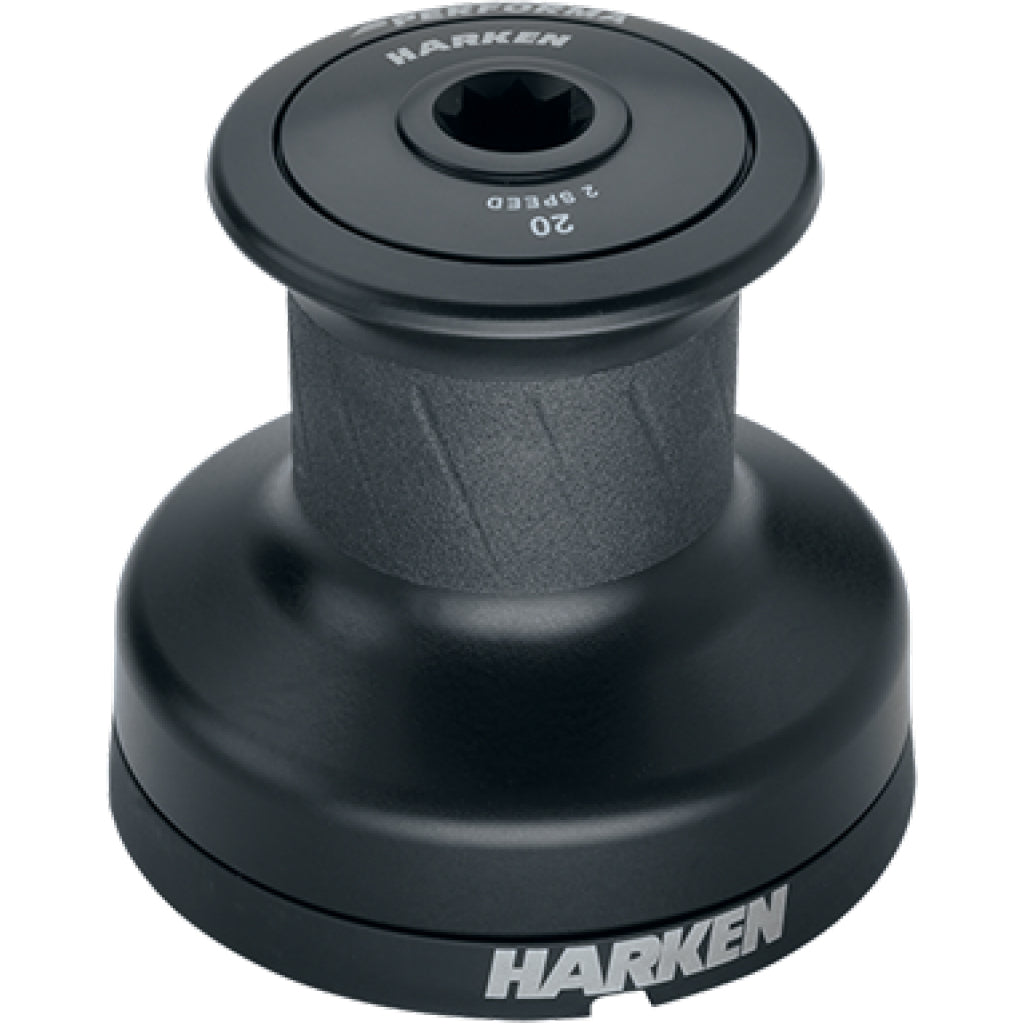

Harken 20 Plain-Top AL 2-Speed Performa Winch

Item# 20.2PTP
$61699

Harken 20 Plain-Top AL 2-Speed Performa Winch usually available 5-7 business days upon ordering.

Description

Harken Performa winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fiber racing winches for powerful hybrids.

Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes.

Winches come in self-tailing, plain-top, or Quattro styles. Available in sizes 20 to 80 to complement Harken’s carbon line.

Specifications

  • Configuration: Plain-top
  • Speed: 2
  • Drum Ø (mm): 73 mm
  • Drum Ø (in): 2 7/8 in
  • Base Ø (mm): 137 mm
  • Base Ø (in): 5 3/8 in
  • Height (mm): 128 mm
  • Height (in): 5 1/16 in
  • Weight (kg): 2 kg
  • Weight (lb): 4.4 lb
  • Line entry height (mm): 61 mm
  • Line entry height (in): 2 3/8 in
  • Fastener circle (in): 4 3/8 in
  • Fastener circle (mm): 110 mm
  • Fasteners (mm): M6 HH, M6 SH mm
  • Fasteners (in): 1/4 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 1
  • Gear ratio - 2: 2.76
  • Power ratio - 1: 6.95
  • Power ratio - 2: 19.2
