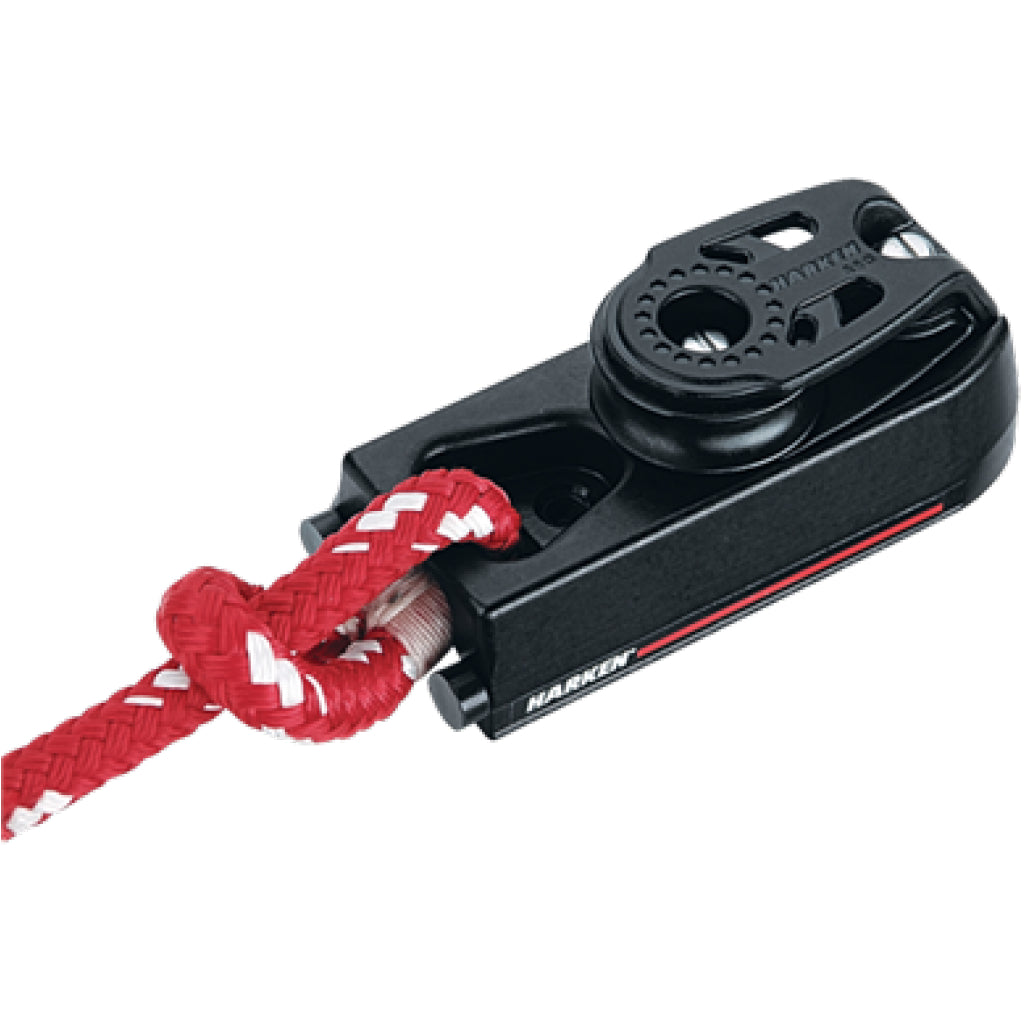

High-performance end controls allow the installation of 2:1 to 4:1 purchases.

Designed for high-performance, free-running systems, Carbo control blocks with Delrin® ball bearings let cars instantly adjust and release under load.

Specifications

• Sheave Ø (mm): 29 mm
• Sheave Ø (in): 1 1/8 in
• Length (mm): 87 mm
• Length (in): 3 7/16 in
• Width (in): 1 3/8 in
• Width (mm): 35 mm
• Height above track (mm): 41 mm
• Height above track (in): 1 5/8 in
• Weight for pair (g): 292 g
• Weight for pair (oz): 10.3 oz
• Maximum line Ø (mm): 8 mm
• Maximum line Ø (in): 5/16 in
• Maximum working load (kg): 272 kg
• Maximum working load (lb): 600 lb
• Breaking load (lb): 1200 lb
• Breaking load (kg): 544 kg
• Purchase: 3:1 / 4:1
