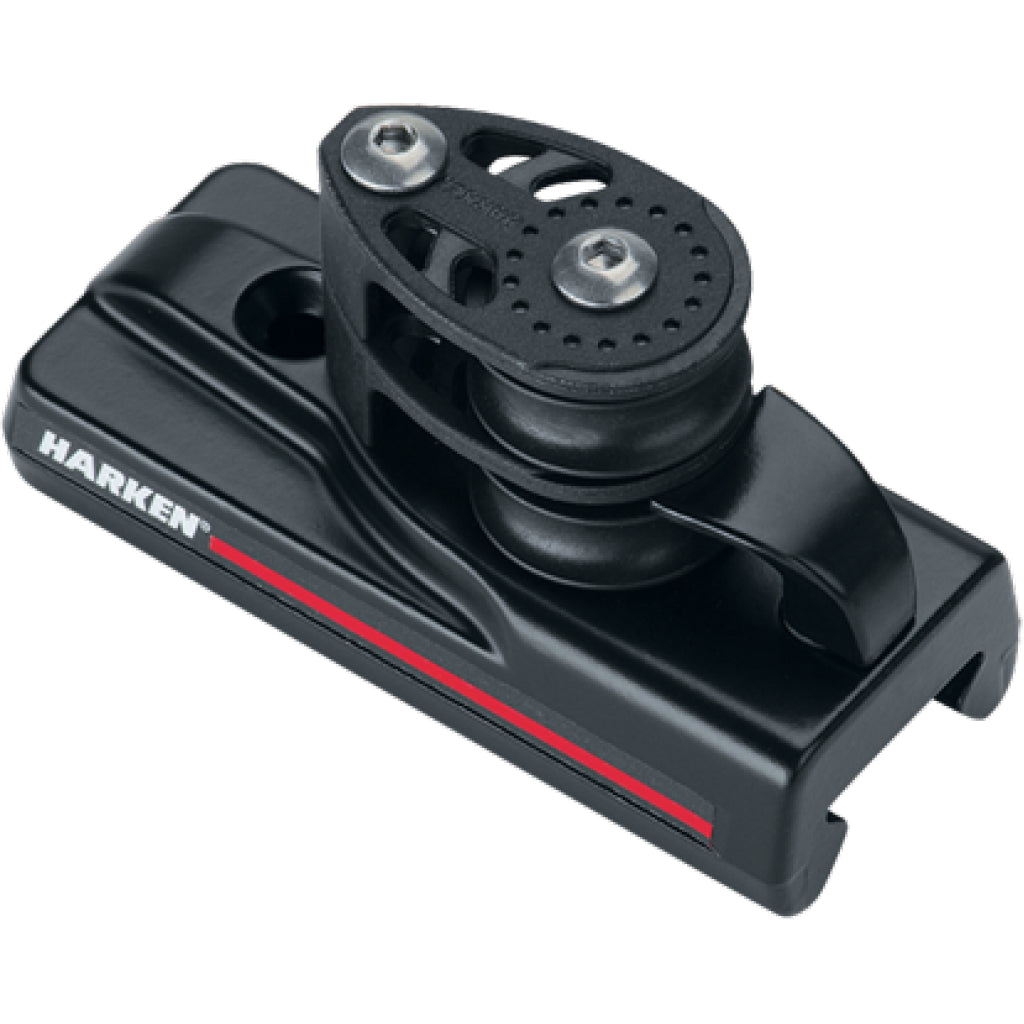

Harken 22mm ESP End Control - Dbl. Sheave, Set 2

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems.

Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings.

Specifications

• Sheave Ø (mm): 25 mm
• Sheave Ø (in): 1 in
• Length (mm): 89 mm
• Length (in): 3 1/2 in
• Width (in): 1 1/2 in
• Width (mm): 38 mm
• Height above track (mm): 41 mm
• Height above track (in): 1 5/8 in
• Weight for pair (g): 142 g
• Weight for pair (oz): 5 oz
• Maximum line Ø (mm): 8 mm
• Maximum line Ø (in): 5/16 in
• Maximum working load (kg): 272 kg
• Maximum working load (lb): 600 lb
• Breaking load (lb): 1200 lb
• Breaking load (kg): 544 kg
• Purchase: 3:1 / 4:1
