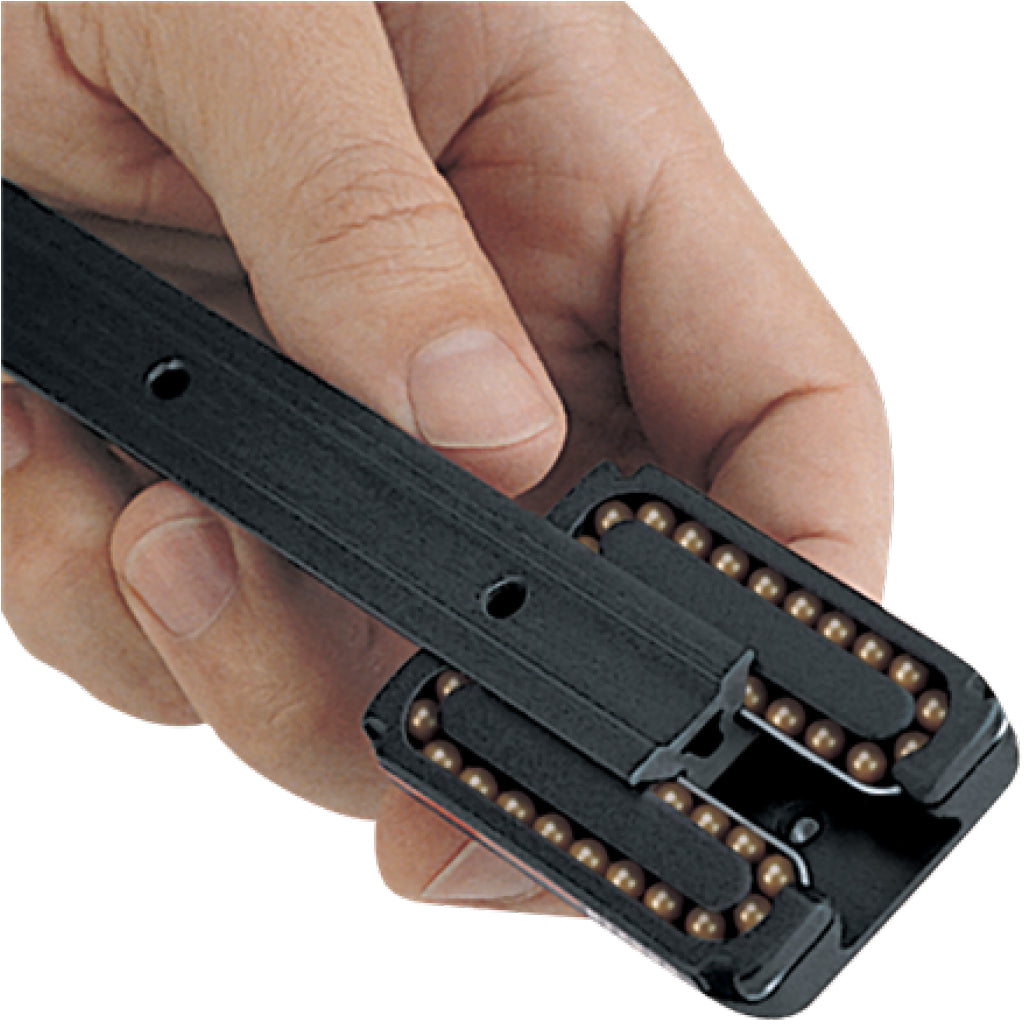

Harken 22mm Low-Load Car

With Pivoting Shackle & Control Tangs

Harken ball bearing traveler cars with multipart purchases allow easy adjustment of loaded sails from the cockpit.

Specifications

• Length (mm): 73 mm
• Length (in): 2 7/8 in
• Width (mm): 57 mm
• Width (in): 2 1/4 in
• Car body height (mm): 24 mm
• Car body height (in): 15/16 in
• Weight (g): 150 g
• Weight (oz): 5.28 oz
• Control block pin Ø (mm): 5 mm
• Control block pin Ø (in): 3/16 in
• Maximum working load (kg): 227 kg
• Maximum working load (lb): 500 lb
• Breaking load (kg): 1134 kg
• Breaking load (lb): 2500 lb
• Minimum curved track radius (m): 1.07 m
• Minimum curved track radius (ft): 3.5 ft
