Item Number: 277

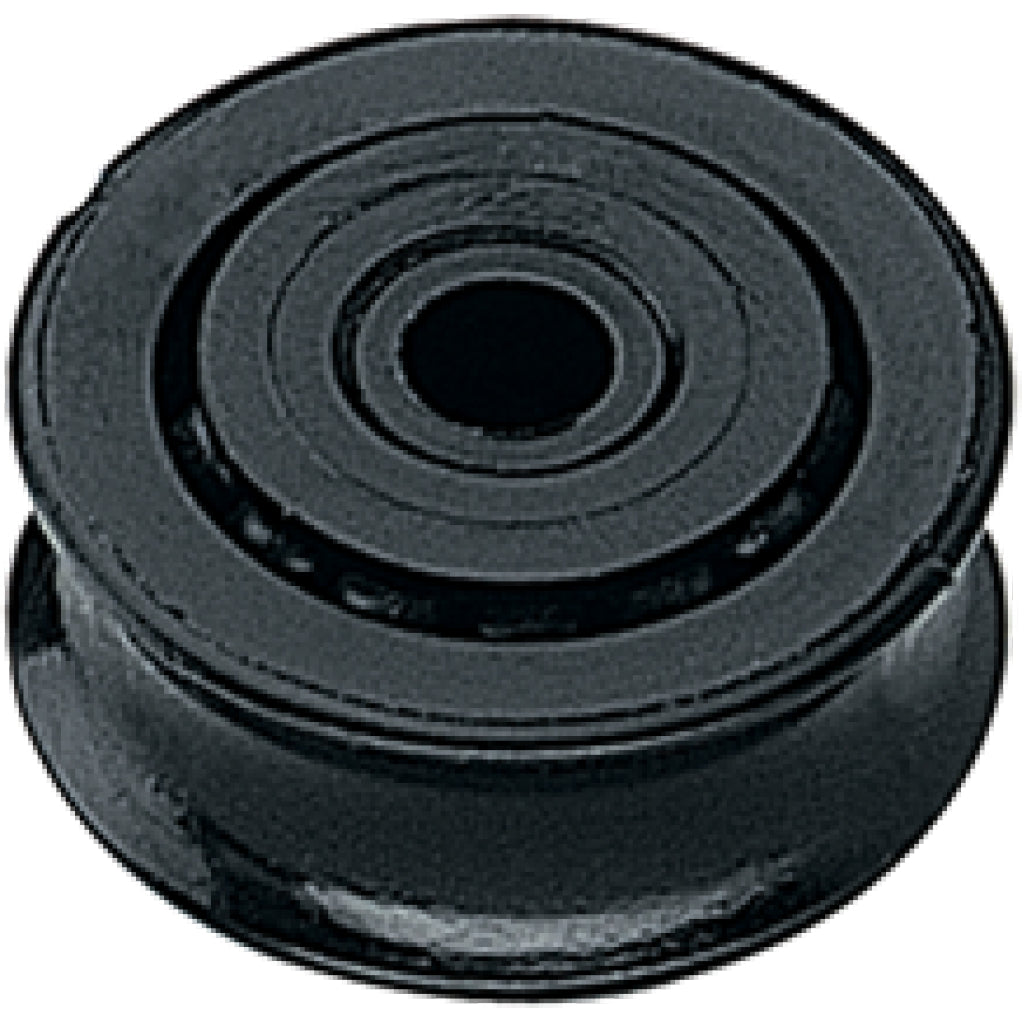

Self-contained sheaves are designed for sailors to use in custom applications.

The Micro, Bullet, and Big Bullet sheaves are Delrin® with Delrin® ball bearings.

They are scored for rope.

Specifications

  • Sheave Ø (mm): 22 mm
  • Sheave Ø (in): 7/8 in
  • Width (mm): 10 mm
  • Width (in): 13/32 in
  • Weight (g): 3 g
  • Weight (oz): 0.1 oz
  • Center pin Ø (mm): 4.75 mm
  • Center pin Ø (in): 3/16 in
  • Maximum line Ø (mm): 6 mm
  • Maximum line Ø (in): 1/4 in
  • Maximum working load (kg): 91 kg
  • Maximum working load (lb): 200 lb
