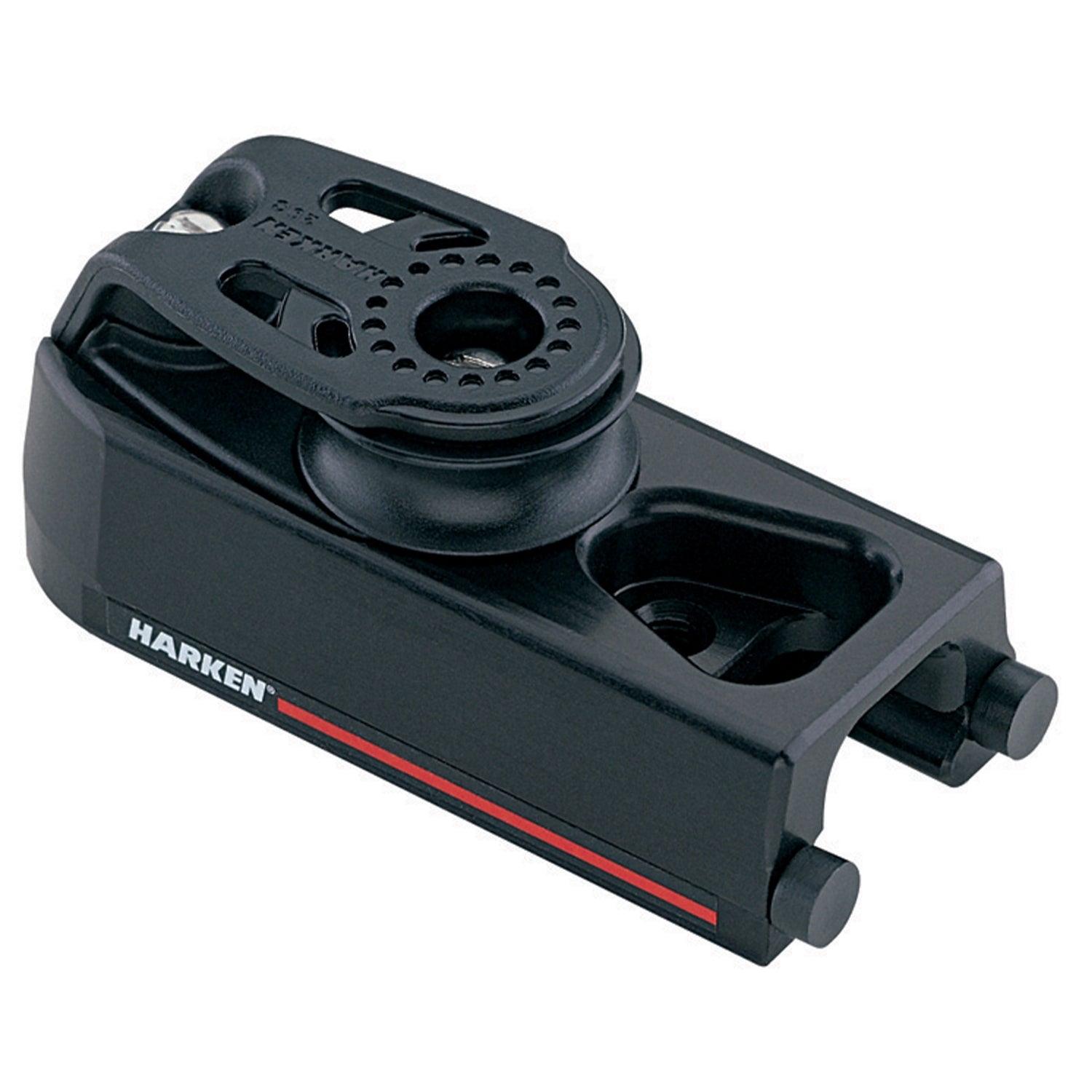

Experience optimal performance with Harken 22mm Single Sheave End Control. Designed for 2:1 to 4:1 purchase systems, these controls feature Carbo blocks with Delrin ball bearings for quick, load-adjusting action. The one-piece aluminum base ensures durability, while secure track assembly minimizes extra holes. Ideal for high-performance and free-running systems.
- Sheave Ø (mm): 29 mm
- Sheave Ø (in): 1 1/8 in
- Length (mm): 87 mm
- Length (in): 3 7/16 in
- Width (mm): 35 mm
- Width (in): 1 3/8 in
- Maximum line Ø (mm): 8 mm
- Maximum line Ø (in): 5/16 in
- Maximum working load (kg): 136 kg
- Maximum working load (lb): 300 lb
- Breaking load (kg): 272 kg
- Breaking load (lb): 600 lb
- Height above track (mm): 26 mm
- Height above track (in): 1 1/32 in
- Weight for pair (g): 228 g
- Weight for pair (oz): 8 oz
- Purchase: 2:1
