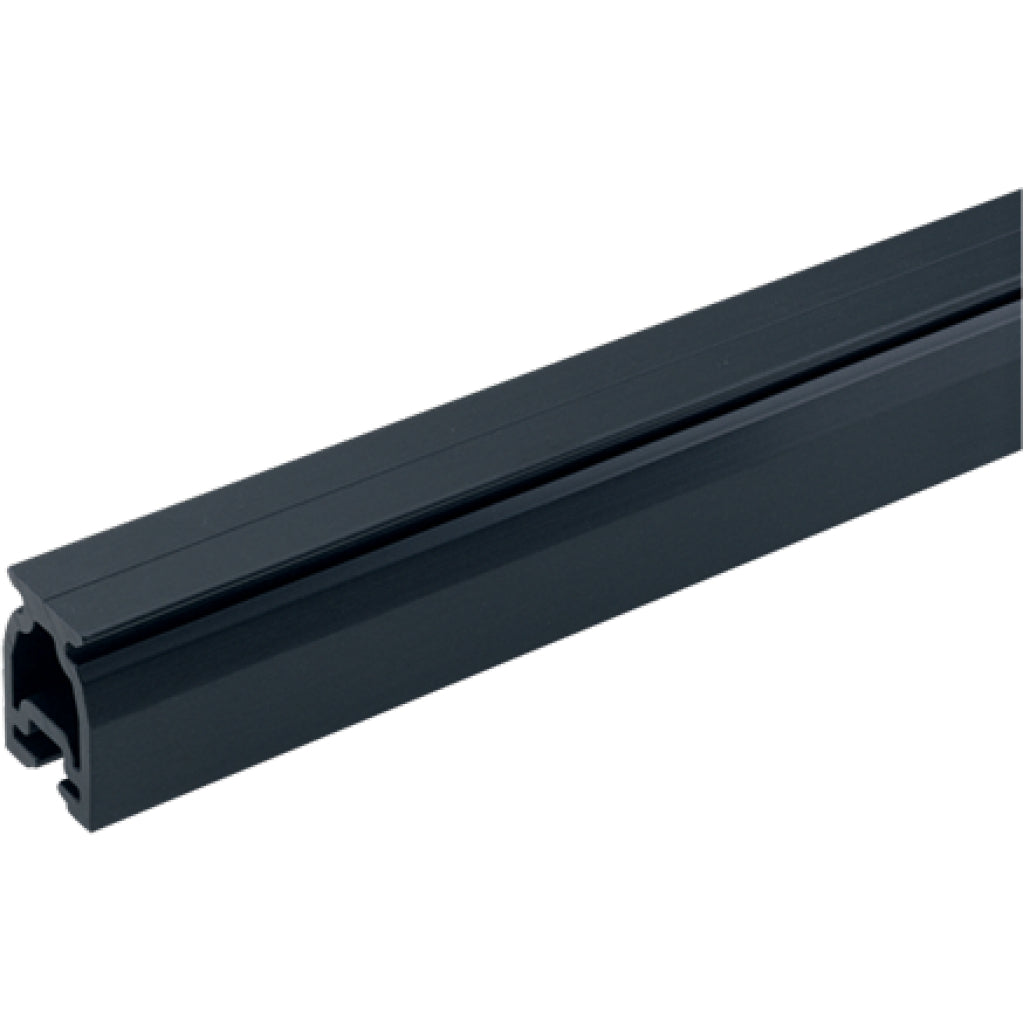

Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface.
CB (Captive Ball) high-beam variable hole spacing track is used to span cockpits or other unsupported areas. Track features internal slide bolts, allowing new track to be installed without drilling additional holes.
- Length (m): 2.5 m
- Length (ft in): 8' 2 7/16" ft in
- Weight (oz): 144 oz
- Weight (kg): 4.08 kg
- Fasteners (mm): 6 HH mm
- Fasteners (in): 1/4 HH in
- Mounting hole spacing (mm): Slide bolt mm
- Mounting hole spacing (in): Slide bolt in
- Endstop: 1523 : Trim cap: 1622
