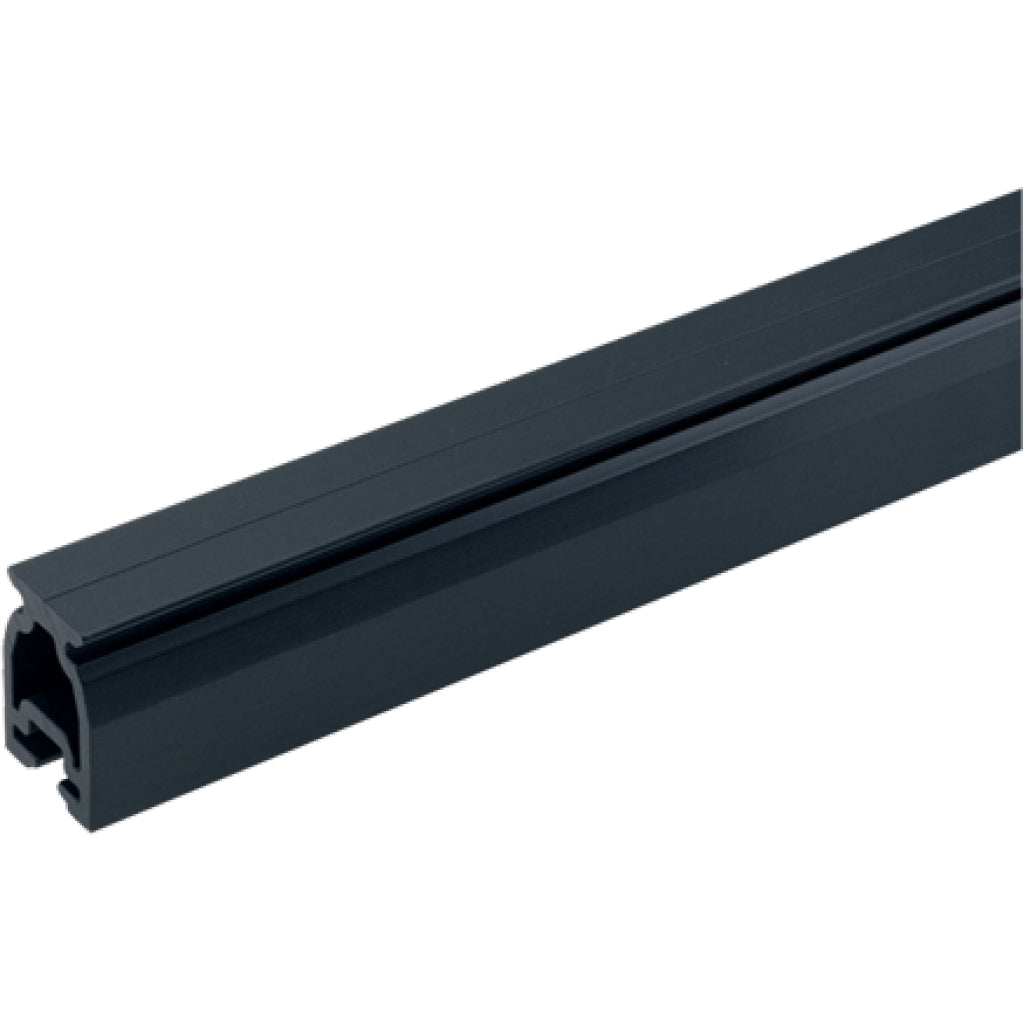

Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface.

CB (Captive Ball) high-beam variable hole spacing track is used to span cockpits or other unsupported areas. Track features internal slide bolts, allowing new track to be installed without drilling additional holes.

Specifications

• Length (m): 3.6 m
• Length (ft in): 11' 9 3/4" ft in
• Width (mm): 31 mm
• Width (in): 1 7/32 in
• Weight (oz): 207 oz
• Weight (kg): 5.87 kg
• Fasteners (mm): 6 HH mm
• Fasteners (in): 1/4 HH in
• Mounting hole spacing (mm): Slide bolt mm
• Mounting hole spacing (in): Slide bolt in
• Endstop: 1523
• Trim cap: 1622

Item# R27HB.3.6M
