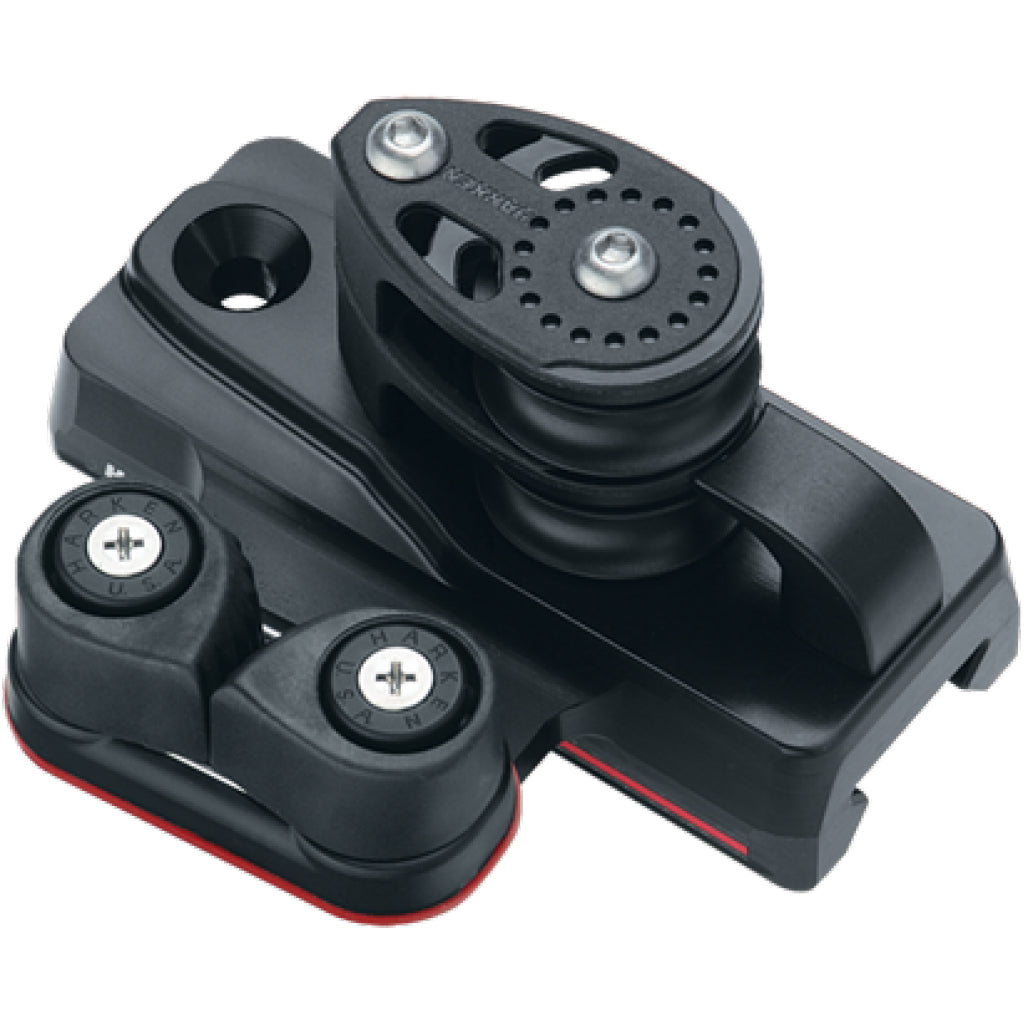

Comes with Double Sheave & Cam Cleat.
ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems.
Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings.
Carbo-Cam® cleats provide precise cleating for the perfect traveler adjustment.
Footnote: Maximum working loads and breaking loads based on cam strengths.
Sheave Ø (mm): 35 mm
Sheave Ø (in): 1 3/8 in
Length (mm): 95 mm
Length (in): 3 3/4 in
Width (in): 3 13/16 in
Width (mm): 96 mm
Height above track (mm): 56 mm
Height above track (in): 2 1/4 in
Weight for pair (g): 1278 g
Weight for pair (oz): 23.4 oz
Maximum line Ø (mm): 10 mm
Maximum line Ø (in): 3/8 in
Maximum working load (kg): 272 kg
Maximum working load (lb): 600 lb
Breaking load (lb): 1500 lb
Breaking load (kg): 680 kg
