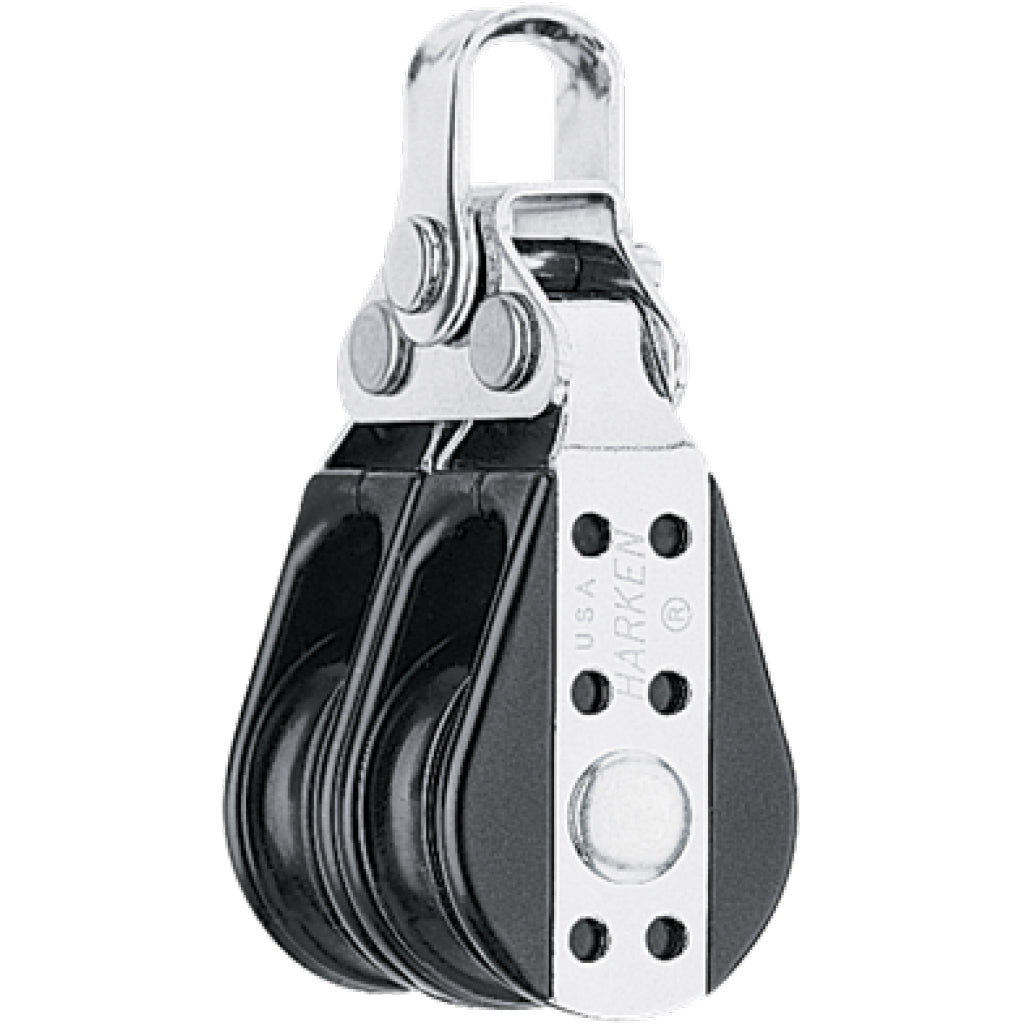

Low-friction Bullet blocks lead control lines aft.
They are compact and lightweight, with fast trim and release under high or low loads.
Specifications
- Sheave Ø (mm): 29 mm
- Sheave Ø (in): 1 1/8 in
- Length (mm): 70 mm
- Length (in): 2 3/4 in
- Weight (g): 71 g
- Weight (oz): 2.5 oz
- Shackle pin Ø (mm): 5 mm
- Shackle pin Ø (in): 3/16 in
- Maximum line Ø (mm): 8 mm
- Maximum line Ø (in): 5/16 in
- Maximum working load (kg): 181 kg
- Maximum working load (lb): 400 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
