Item Number: 161

Self-contained sheaves are designed for sailors to use in custom applications.

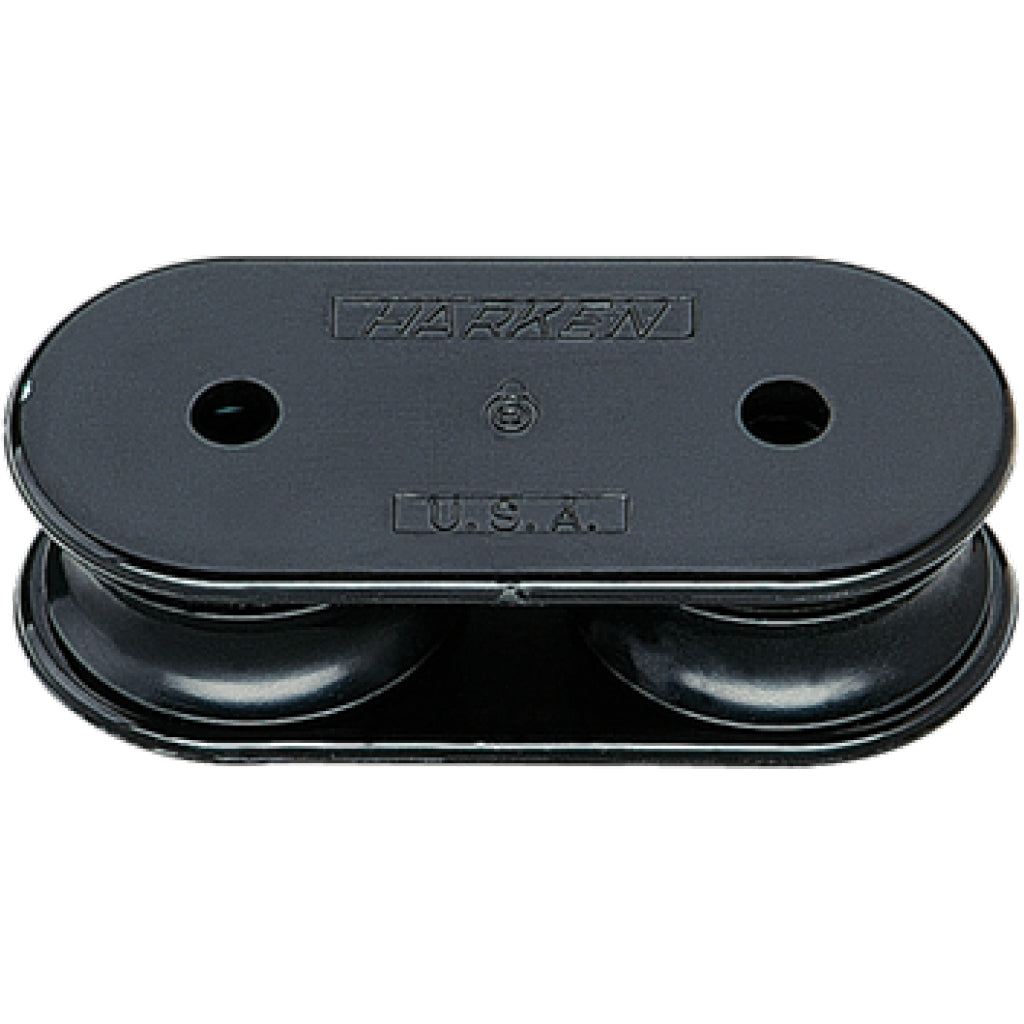

Two 160 sheaves make up the 161 dual-sheave universal lead. Use this sheave to divert a line that must turn in either direction.

Specifications

  • Sheave Ø (mm)
  • 29 mm
  • Sheave Ø (in)
  • 1 1/8 in
  • Width (mm)
  • 22 mm
  • Width (in)
  • 7/8 in
  • Weight (g)
  • 28 g
  • Weight (oz)
  • 1 oz
  • Center pin Ø (mm)
  • 6.27 mm
  • Center pin Ø (in)
  • 1/4 in
  • Maximum line Ø (mm)
  • 8 mm
  • Maximum line Ø (in)
  • 5/16 in
  • Maximum working load (kg)
  • 136 kg
  • Maximum working load (lb)
  • 300 lb
