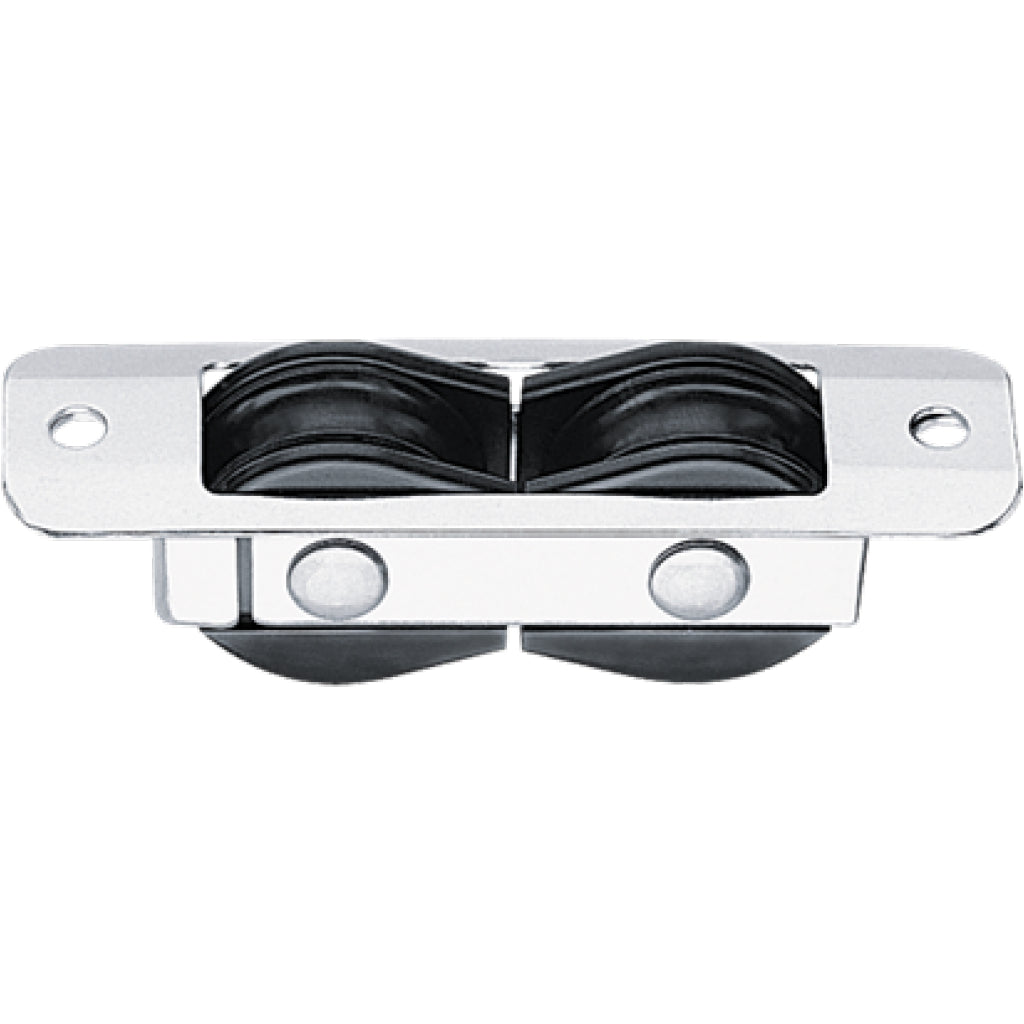

Item Number: 289

With Stainless Steel Coverplate

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads.

A range of styles lets these blocks adapt to almost all control line applications.

Specifications

  • Sheave Ø (mm): 29 mm
  • Sheave Ø (in): 1 1/8 in
  • Length (mm): 95 mm
  • Length (in): 3 3/4 in
  • Weight (g): 60 g
  • Weight (oz): 2.12 oz
  • Maximum line Ø (mm): 8 mm
  • Maximum line Ø (in): 5/16 in
  • Fasteners (mm): 5 RH mm
  • Fasteners (in): #10 RH in
  • Mounting hole spacing (mm): 79 mm
  • Mounting hole spacing (in): 3 1/8 in
  • Cutout (mm): 19 x 67 mm
  • Cutout (in): 3/4 x 2 5/8 in
  • Maximum working load (kg): 181 kg
  • Maximum working load (lb): 400 lb
  • Breaking load (kg): 907 kg
  • Breaking load (lb): 2000 lb
