Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads.
A range of styles lets these blocks adapt to almost all control line applications.

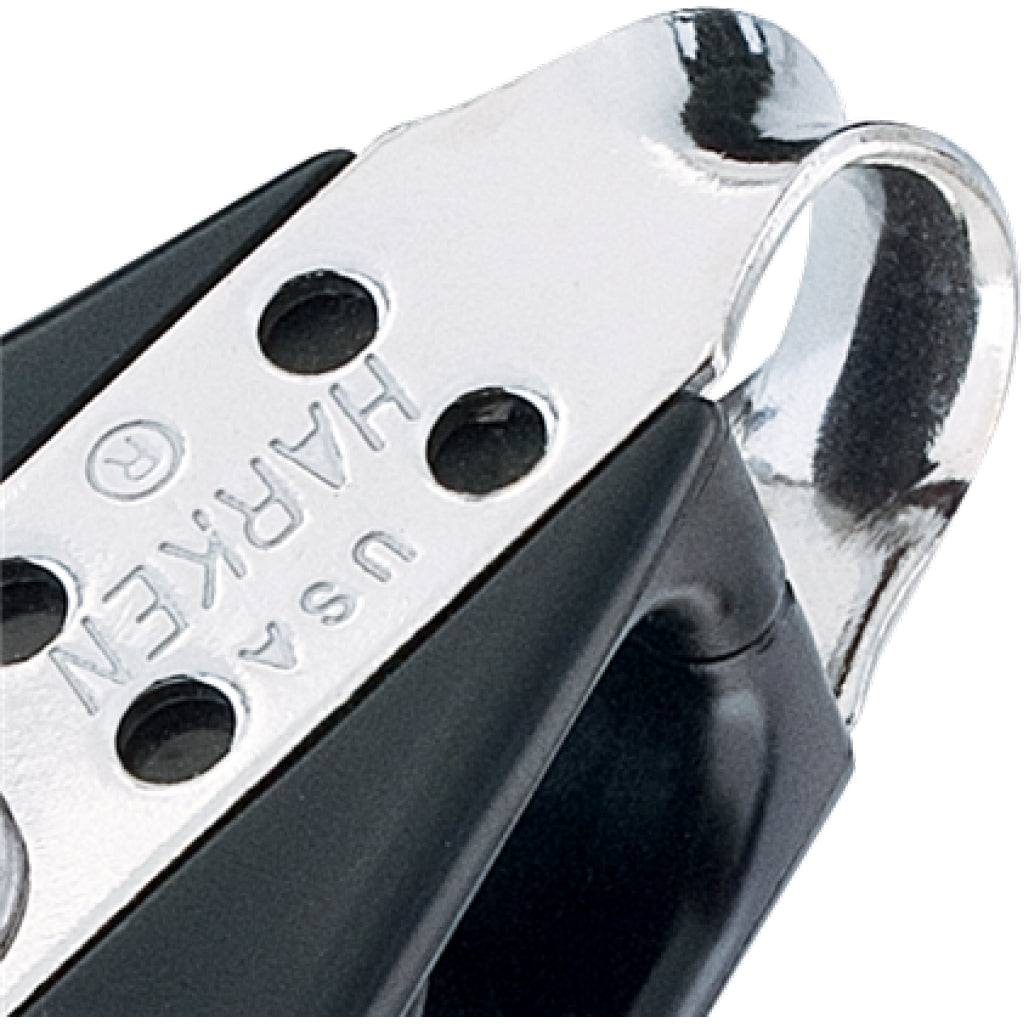

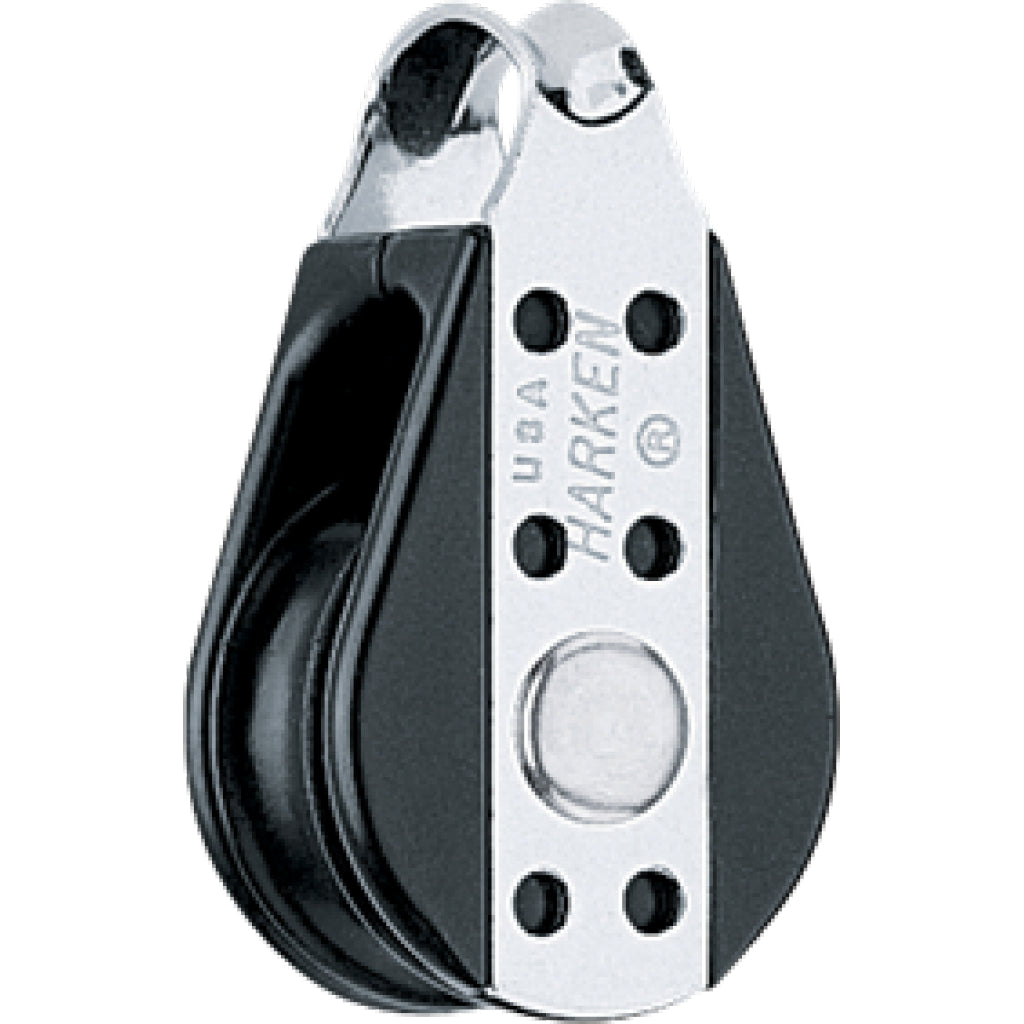

Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.
- Sheave Ø (mm): 29 mm
- Sheave Ø (in): 1 1/8 in
- Length (mm): 51 mm
- Length (in): 2 in
- Weight (g): 28 g
- Weight (oz): 1 oz
- Maximum line Ø (mm): 8 mm
- Maximum line Ø (in): 5/16 in
- Maximum working load (kg): 227 kg
- Maximum working load (lb): 500 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
