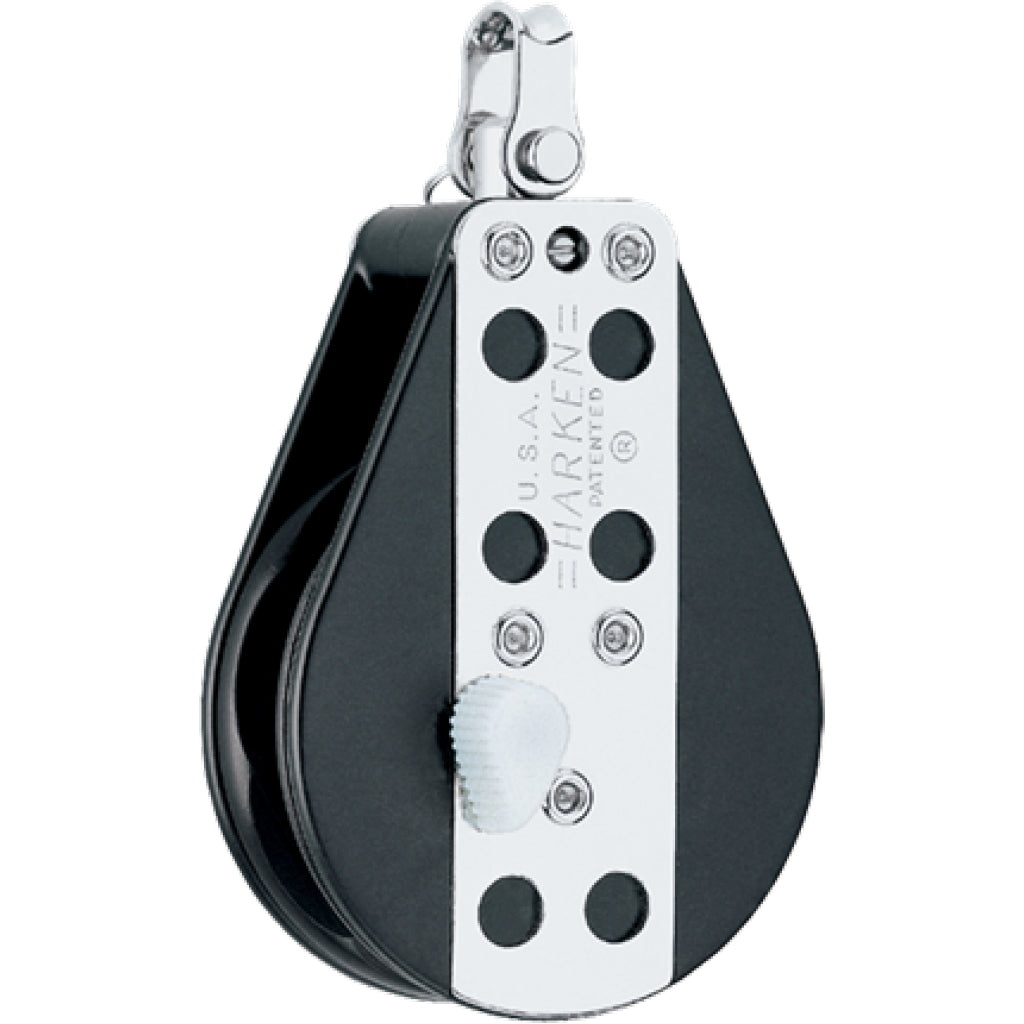

Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.

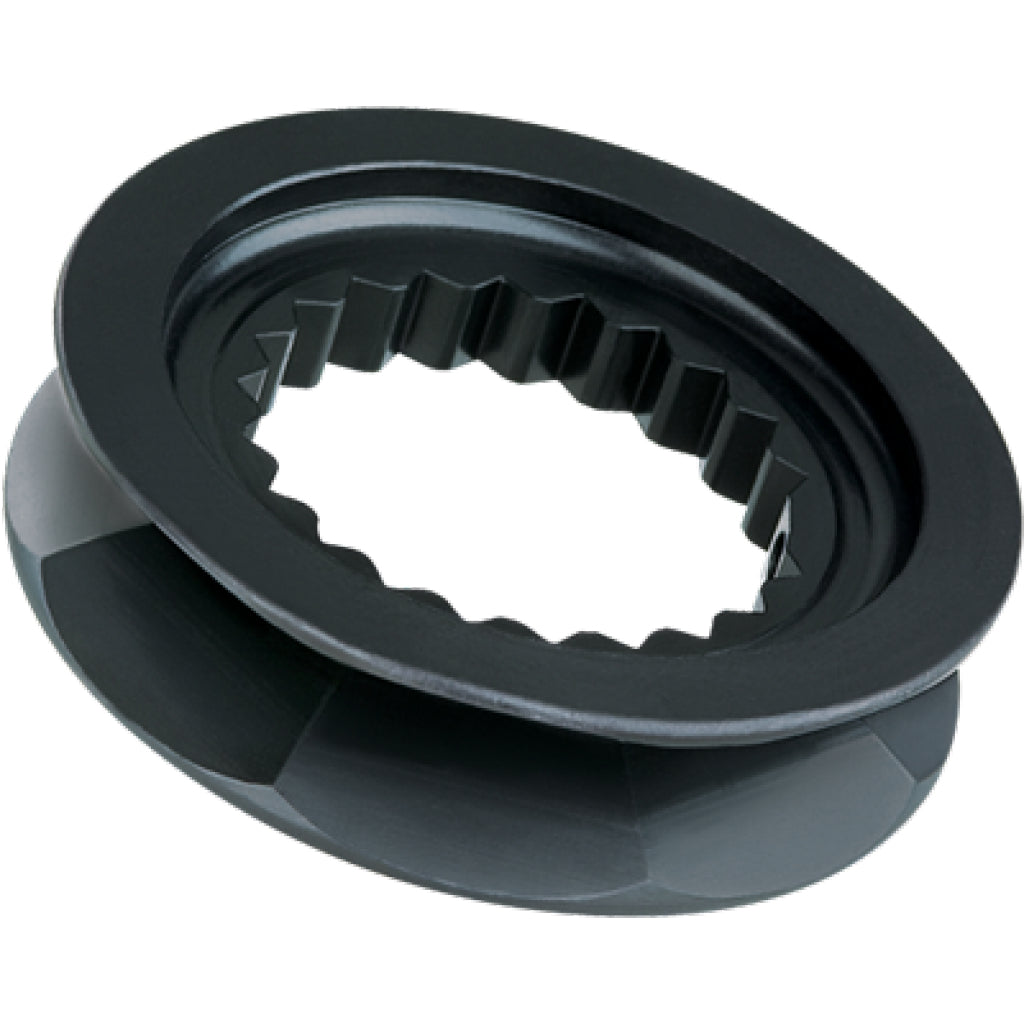

Ratchets feature Hard Lube-anodized, eight-sided sheaves machined from solid aluminum for strength and corrosion resistance. Free-rolling Delrin® ball bearings, sheave, and sideplates are UV stabilized with carbon black for maximum protection. High-strength stainless steel straps reinforce blocks.

Specifications

• Sheave Ø (mm): 76 mm
• Sheave Ø (in): 3 in
• Length (mm): 127 mm
• Length (in): 5 in
• Weight (g): 241 g
• Weight (oz): 8.5 oz
• Shackle pin Ø (mm): 5 mm
• Shackle pin Ø (in): 3/16 in
• Maximum line Ø (mm): 12 mm
• Maximum line Ø (in): 7/16 in
• Maximum working load (kg): 340 kg
• Maximum working load (lb): 750 lb
• Breaking load (kg): 907 kg
• Breaking load (lb): 2000 lb
• Holding power: 15:1
• Turns: counterclockwise
