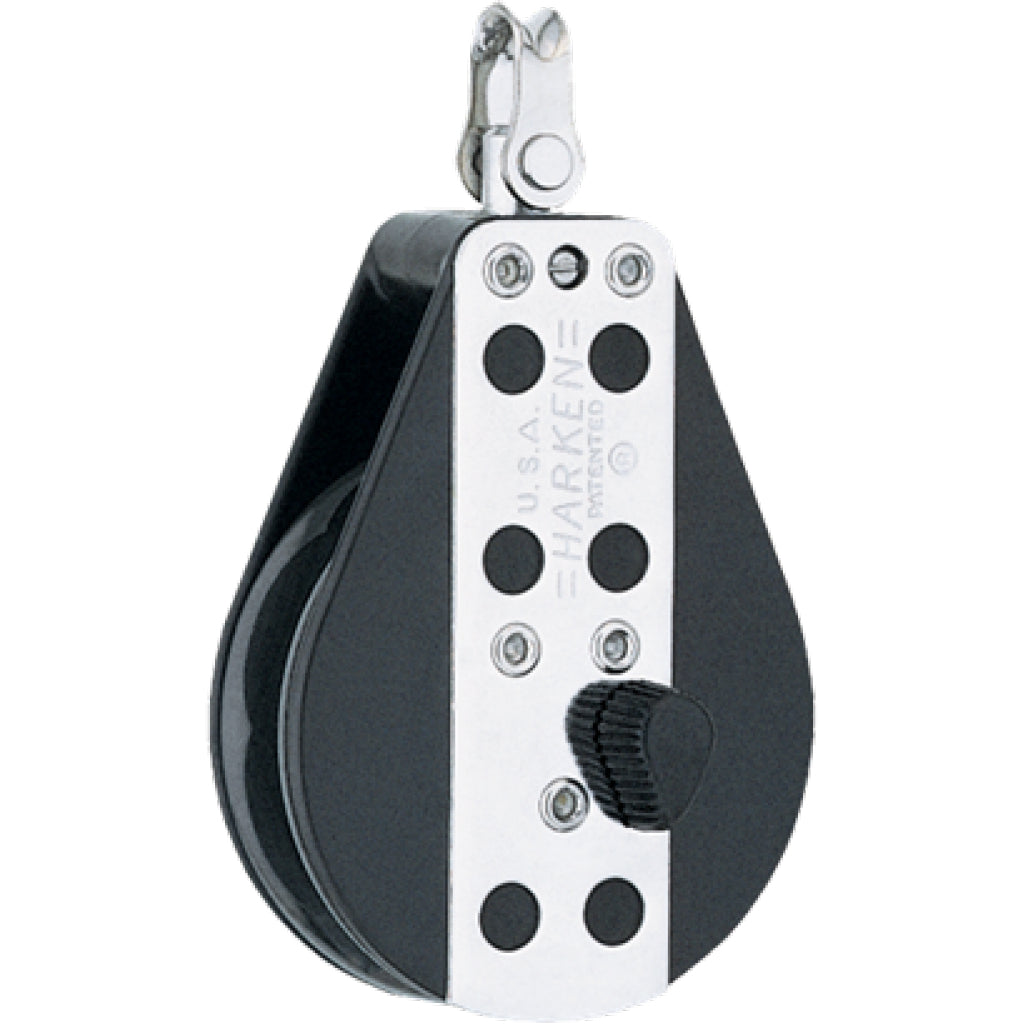

Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.

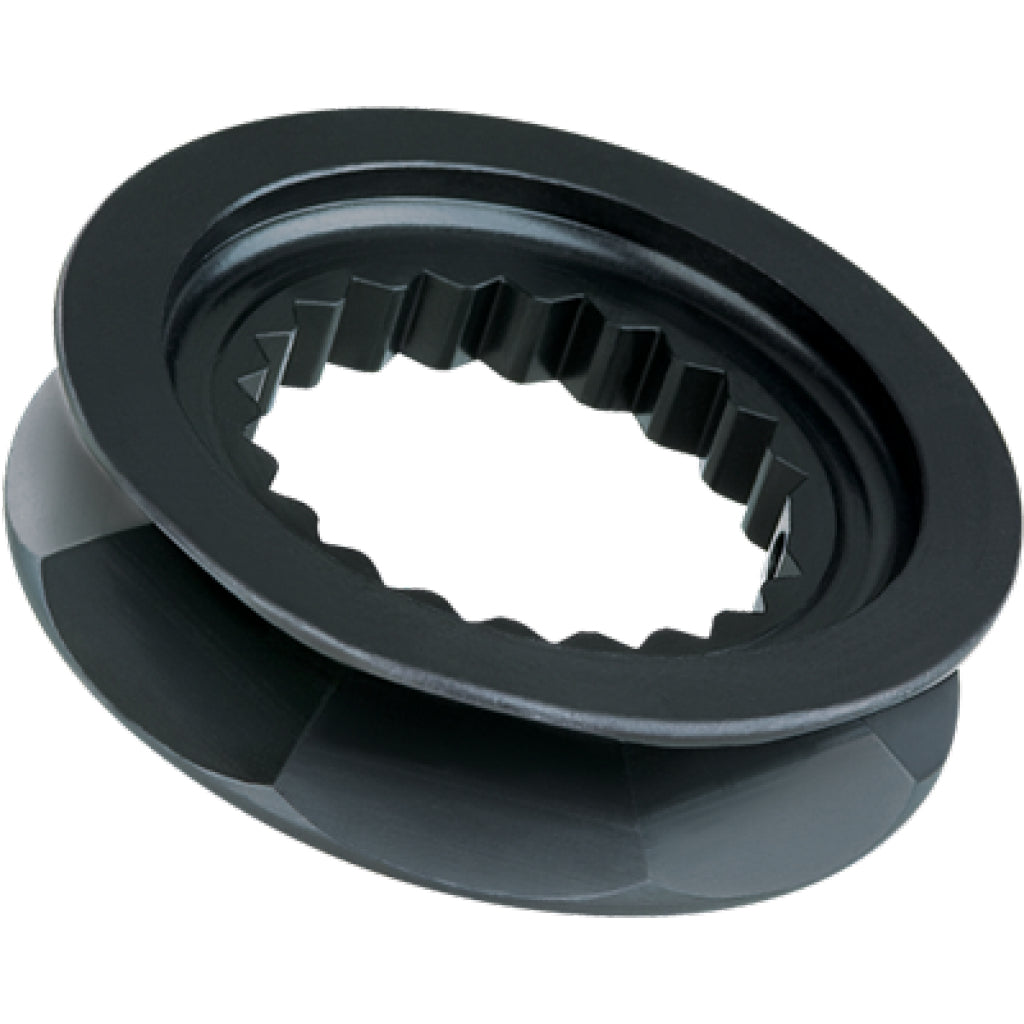

Ratchets feature Hard Lube-anodized, eight-sided sheaves machined from solid aluminum for strength and corrosion resistance. Free-rolling Delrin® ball bearings, sheave, and sideplates are UV stabilized with carbon black for maximum protection. High-strength stainless steel straps reinforce blocks.
Specifications- Sheave Ø (mm): 76 mm
- Sheave Ø (in): 3 in
- Length (mm): 127 mm: Length (in)
- 5 in: Weight (g): 241 g
- Weight (oz): 8.5 oz
- Shackle pin Ø (mm): 5 mm
- Shackle pin Ø (in): 3/16 in
- Maximum line Ø (mm): 12 mm
- Maximum line Ø (in): 7/16 in
- Maximum working load (kg): 340 kg
- Maximum working load (lb): 750 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
- Holding power: 15:1
- Turns: clockwise
