SKU: 1548

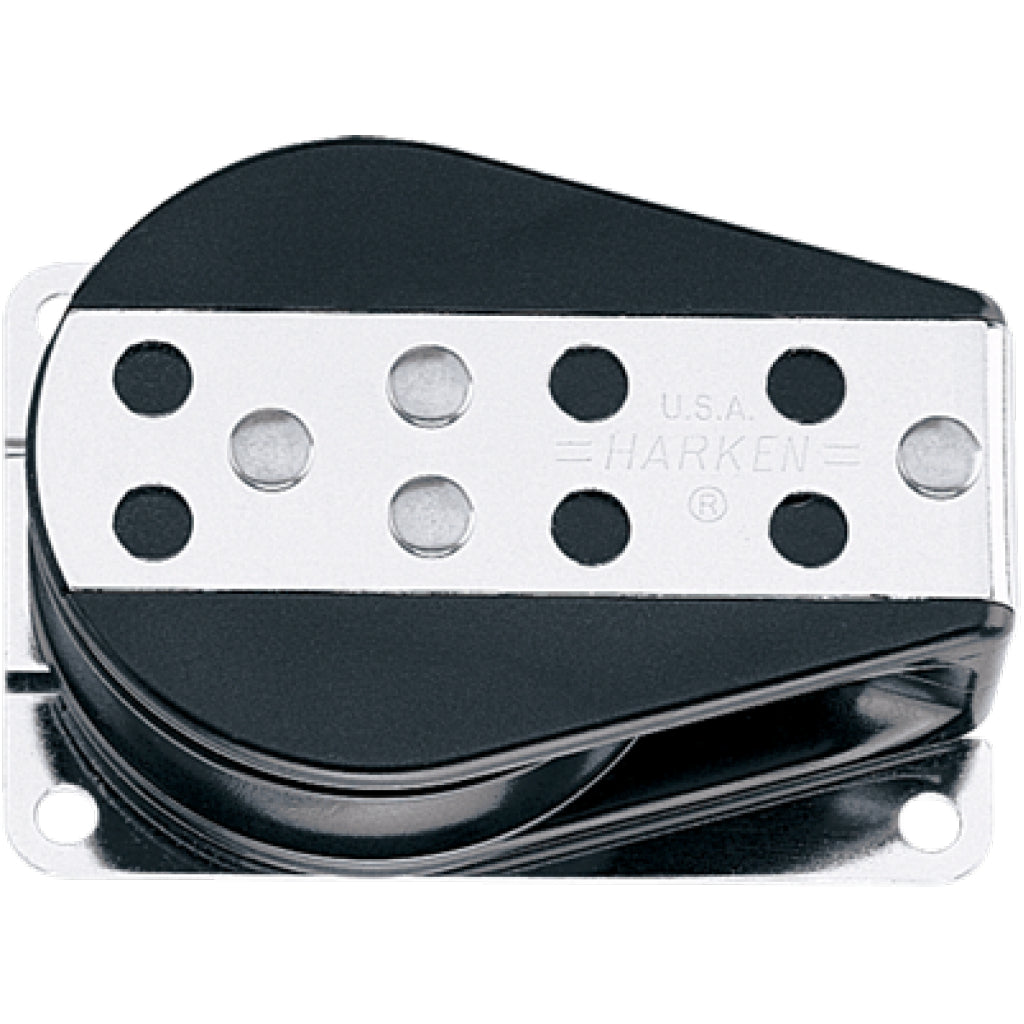

Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats.

Sheave runs exclusively on a ball bearing system for fast trim and release under any load.

Specifications

  • Sheave Ø (mm): 76 mm
  • Sheave Ø (in): 3 in
  • Length (mm): 111 mm
  • Length (in): 4 3/8 in
  • Weight (g): 312 g
  • Weight (oz): 11 oz
  • Maximum line Ø (mm): 14 mm
  • Maximum line Ø (in): 9/16 in
  • Fasteners (mm): 6 RH mm
  • Fasteners (in): 1/4 RH in
  • Maximum working load (kg): 680 kg
  • Maximum working load (lb): 1500 lb
  • Breaking load (kg): 1905 kg
  • Breaking load (lb): 4200 lb
