SKU: 1546

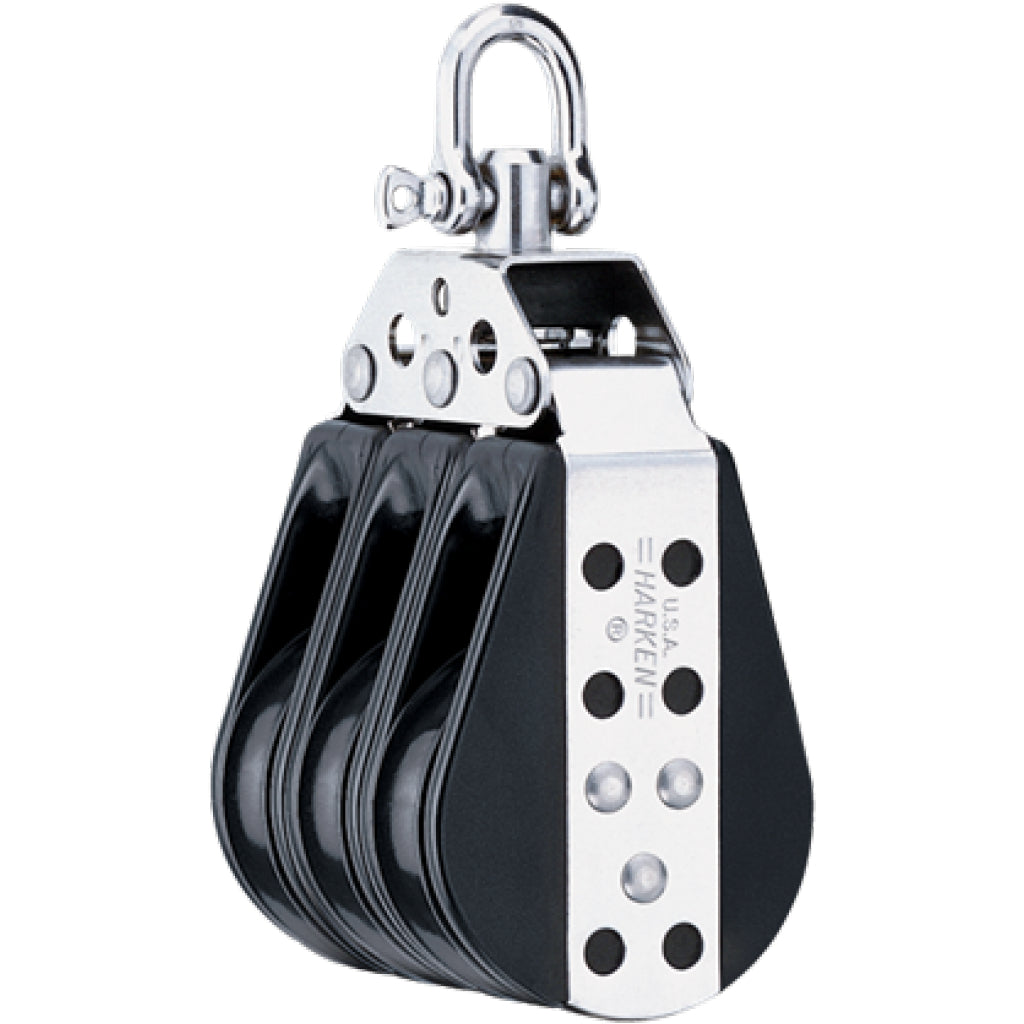

Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats.

Sheave runs exclusively on a ball bearing system for fast trim and release under any load.

Specifications

  • Sheave Ø (mm): 76 mm
  • Sheave Ø (in): 3 in
  • Length (mm): 197 mm
  • Length (in): 7 3/4 in
  • Weight (g): 1020 g
  • Weight (oz): 36 oz
  • Shackle pin Ø (mm): 8 mm
  • Shackle pin Ø (in): 5/16 in
  • Maximum line Ø (mm): 14 mm
  • Maximum line Ø (in): 9/16 in
  • Maximum working load (kg): 1724 kg
  • Maximum working load (lb): 3800 lb
  • Breaking load (kg): 3856 kg
  • Breaking load (lb): 8500 lb
