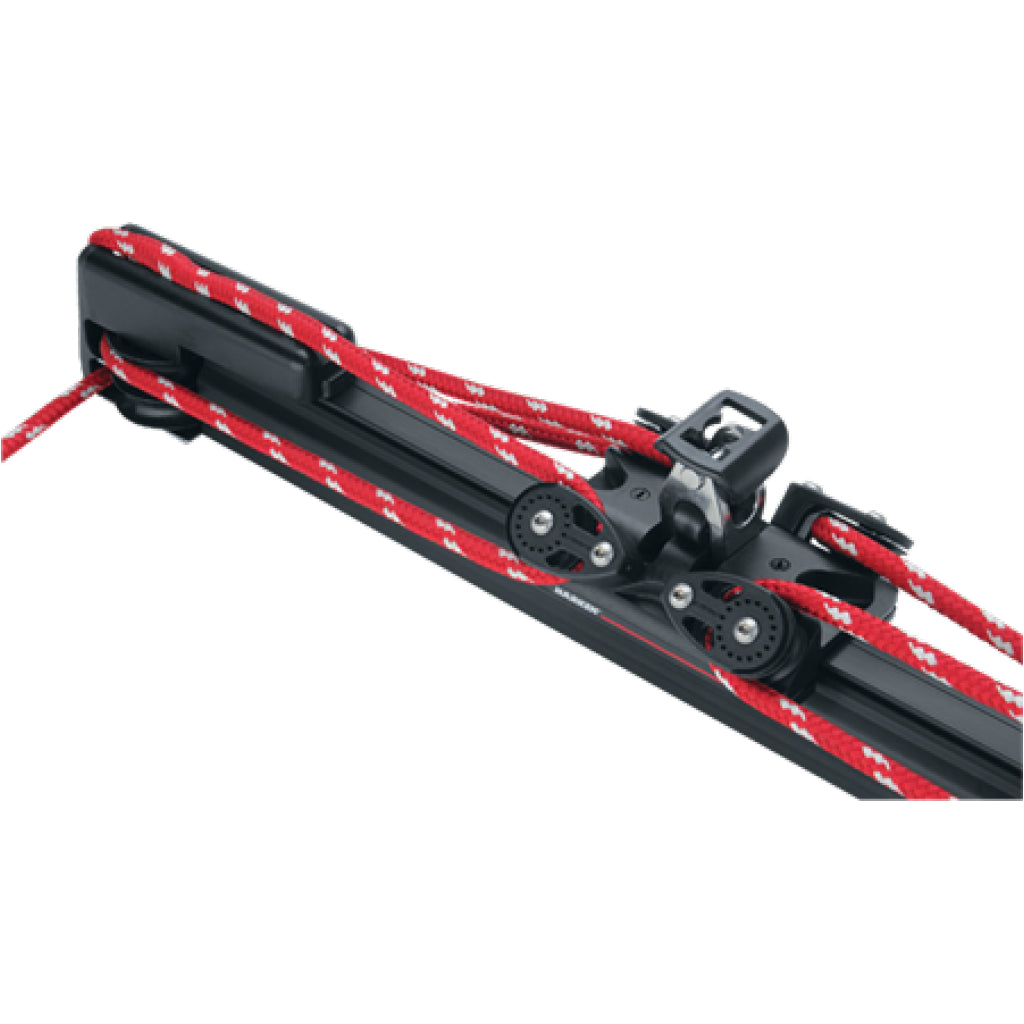

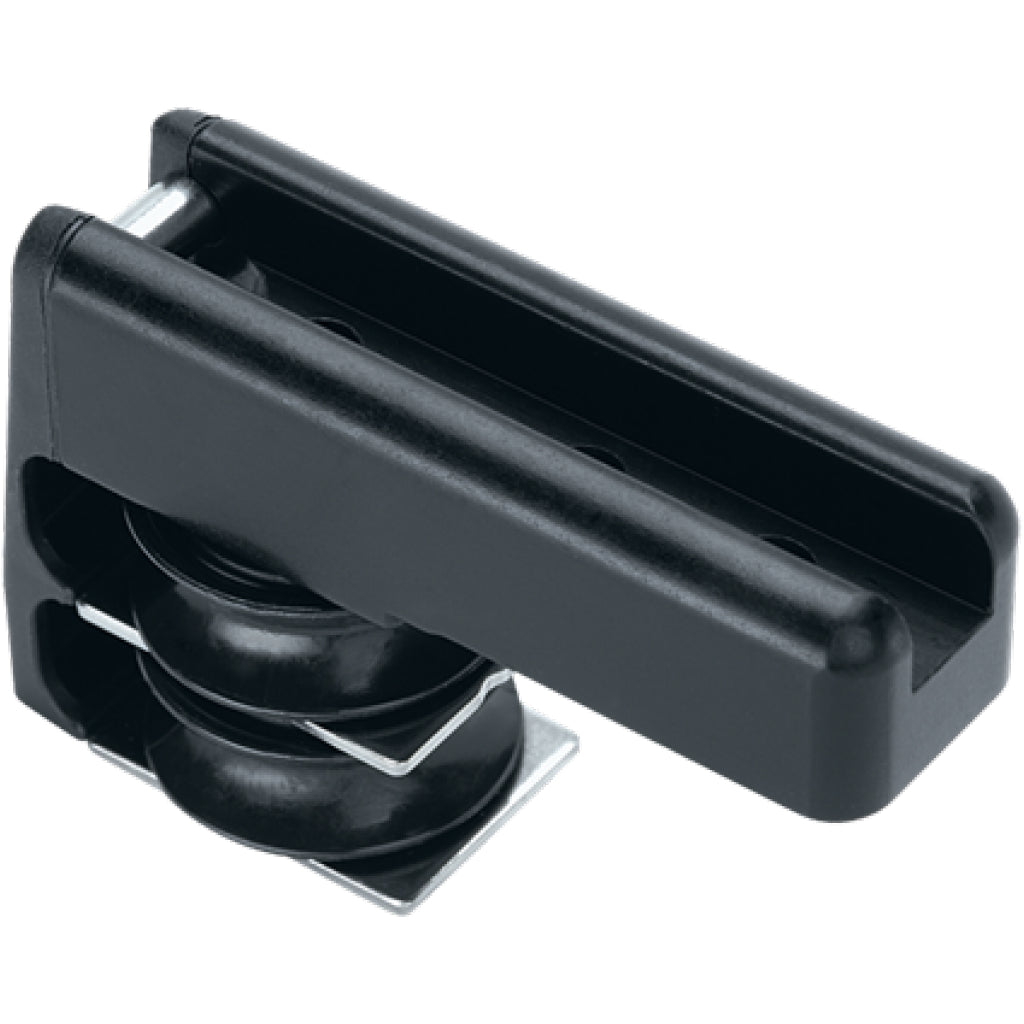

Harken 32mm ESP Dbl. Sheave High-Beam End Control

Item# E3250HB
$41199

Harken 32mm ESP Dbl. Sheave High-Beam End Control usually available 5-7 business days upon ordering.

Description

Set of 2.

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems.

Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings.

Use E3250HB double-sheave end controls for cabintop travelers with cars using 3:1 or 4:1 purchases.

Contact Harken® to order special length track with mounting holes for E3250HB end controls.

Specifications

Sheave Ø (mm): 57 mm
  • Sheave Ø (in): 2 1/4 in
  • Length (mm): 155 mm
  • Length (in): 6 1/8 in
  • Width (in): 2 1/4 in
  • Width (mm): 57 mm
  • Height above track (mm): 25 mm
  • Height above track (in): 1 in
  • Weight for pair (g): 1547 g
  • Weight for pair (oz): 54.6 oz
  • Maximum line Ø (mm): 10 mm
  • Maximum line Ø (in): 3/8 in
  • Maximum working load (kg): 318 kg
  • Maximum working load (lb): 700 lb
  • Breaking load (lb): 1400 lb
  • Breaking load (kg): 635 kg
  • Purchase: 3:1 / 4:1
