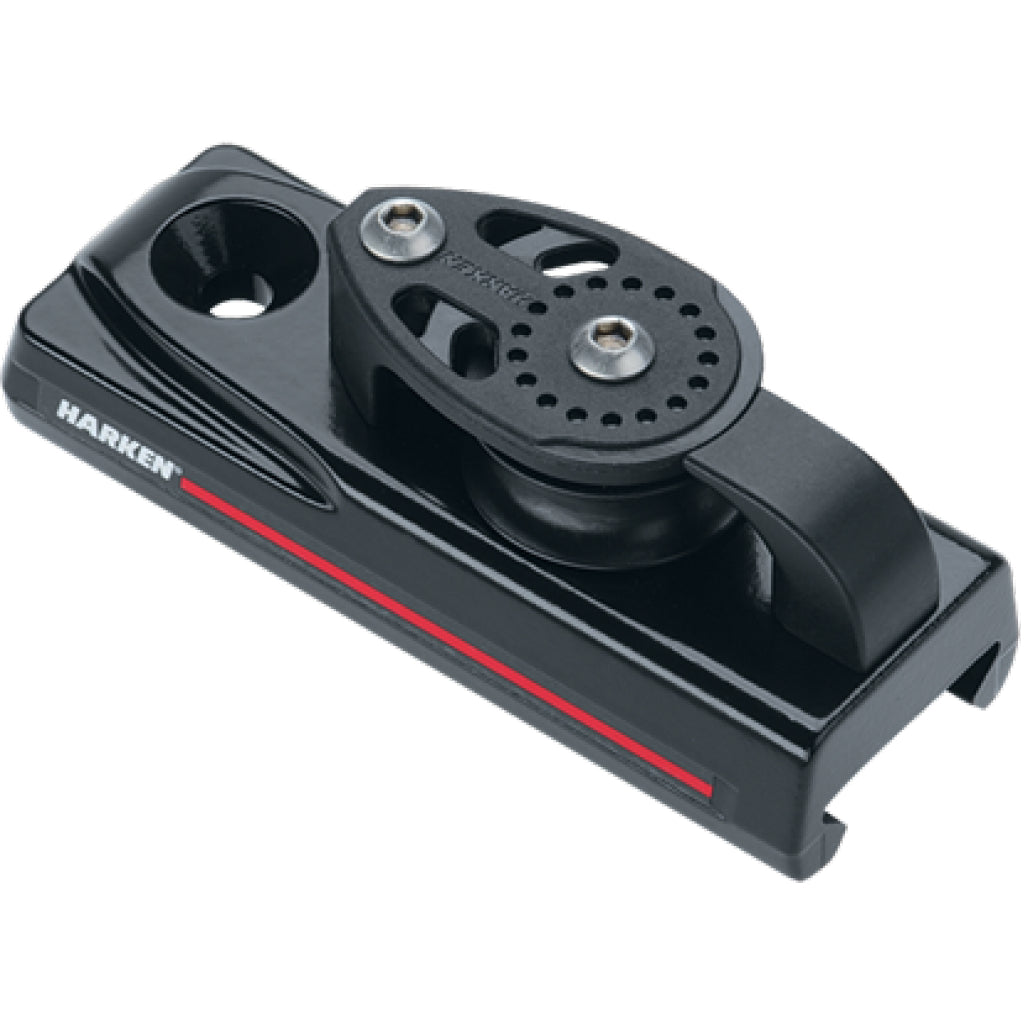

ESP end controls are value-oriented options for the installation of 2:1 to 5:1 systems.
Designed for strength and durability, controls feature axle bearing sheaves with sideload ball bearings.
Specifications
- Sheave Ø (mm): 35 mm
- Sheave Ø (in): 1 3/8 in
- Length (mm): 122 mm
- Length (in): 4 13/16 in
- Width (in): 1 13/16 in
- Width (mm): 45 mm
- Height above track (mm): 36 mm
- Height above track (in): 1 7/16 in
- Weight for pair (g): 554 g
- Weight for pair (oz): 19.54 oz
- Maximum line Ø (mm): 10 mm
- Maximum line Ø (in): 3/8 in
- Maximum working load (kg): 816 kg
- Maximum working load (lb): 1800 lb
- Breaking load (lb): 3600 lb
- Breaking load (kg): 1633 kg
- Purchase: 2:1
