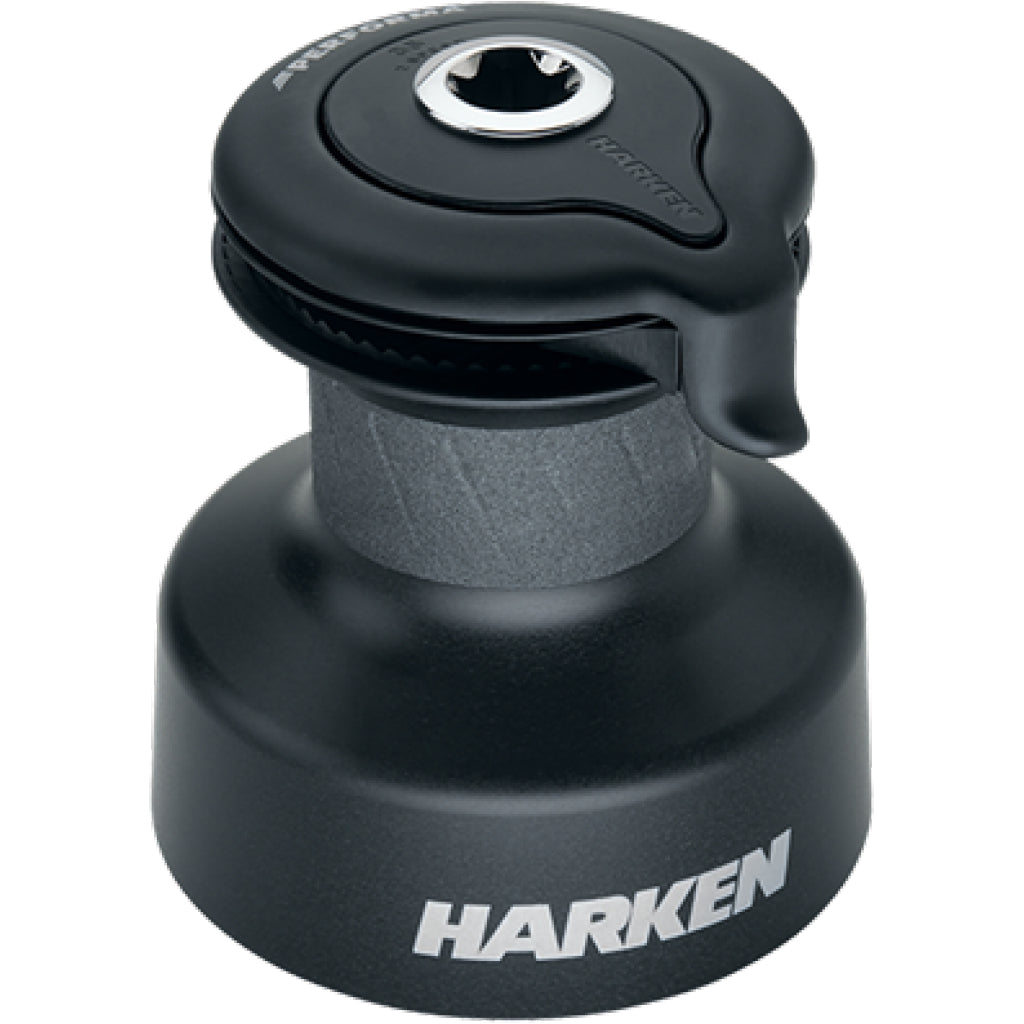

Harken 35 Self-Tailing Performa Winch (AL/2 Speed)

$1,217.99
Item Number: 35.2STP

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line.

Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications

  • Configuration: Self-tailing
  • Speed: 2
  • Drum Ø (mm): 80 mm
  • Drum Ø (in): 3 1/8 in
  • Base Ø (mm): 149 mm
  • Base Ø (in): 5 7/8 in
  • Height (mm): 170 mm
  • Height (in): 6 11/16 in
  • Weight (kg): 3.6 kg
  • Weight (lb): 7.9 lb
  • Line entry height (mm): 79 mm
  • Line entry height (in): 3 1/8 in
  • Minimum line Ø (mm): 8 mm
  • Minimum line Ø (in): 5/16 in
  • Maximum line Ø (mm): 12 mm
  • Maximum line Ø (in): 1/2 in
  • Fastener circle (in): 4 7/8 in
  • Fastener circle (mm): 123 mm
  • Fasteners (mm): M6 HH, M6 SH mm
  • Fasteners (in): 1/4 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 2.13
  • Gear ratio - 2: 5.65
  • Power ratio - 1: 13.50
  • Power ratio - 2: 35.90
