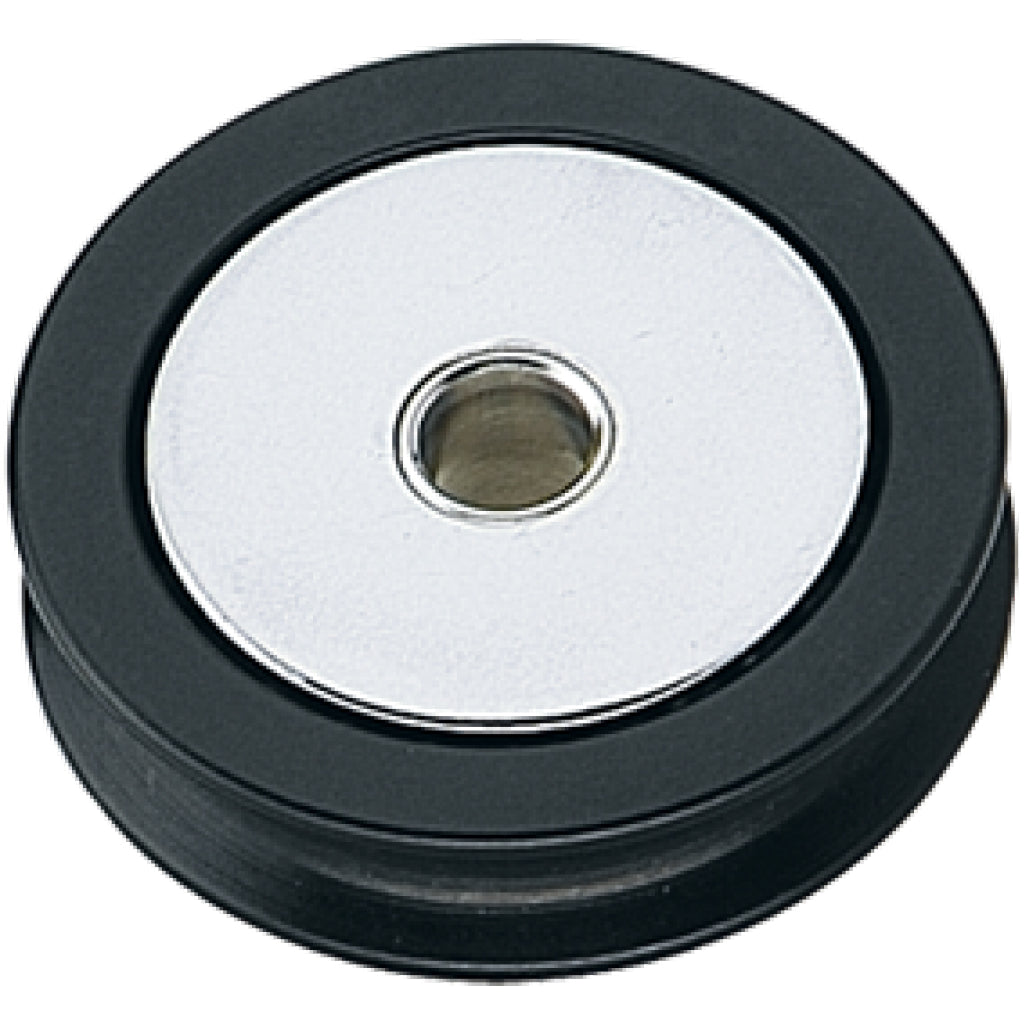

Self-contained sheaves are designed for sailors to use in custom applications. Wire sheaves are Hard Lube-anodized aluminum that ride on high-load composite bearings.
Specifications
- Sheave Ø (mm): 38 mm
- Sheave Ø (in): 1 1/2 in
- Width (mm): 10 mm
- Width (in): 13/32 in
- Weight (g): 28 g
- Weight (oz): 1 oz
- Center pin Ø (mm): 6.27 mm
- Center pin Ø (in): 1/4 in
- Maximum line Ø (mm): 5 mm
- Maximum line Ø (in): 3/16 in
- Maximum wire Ø (mm): 3 mm
- Maximum wire Ø (in): 1/8 in
- Maximum working load (kg): 680 kg
- Maximum working load (lb): 1500 lb
