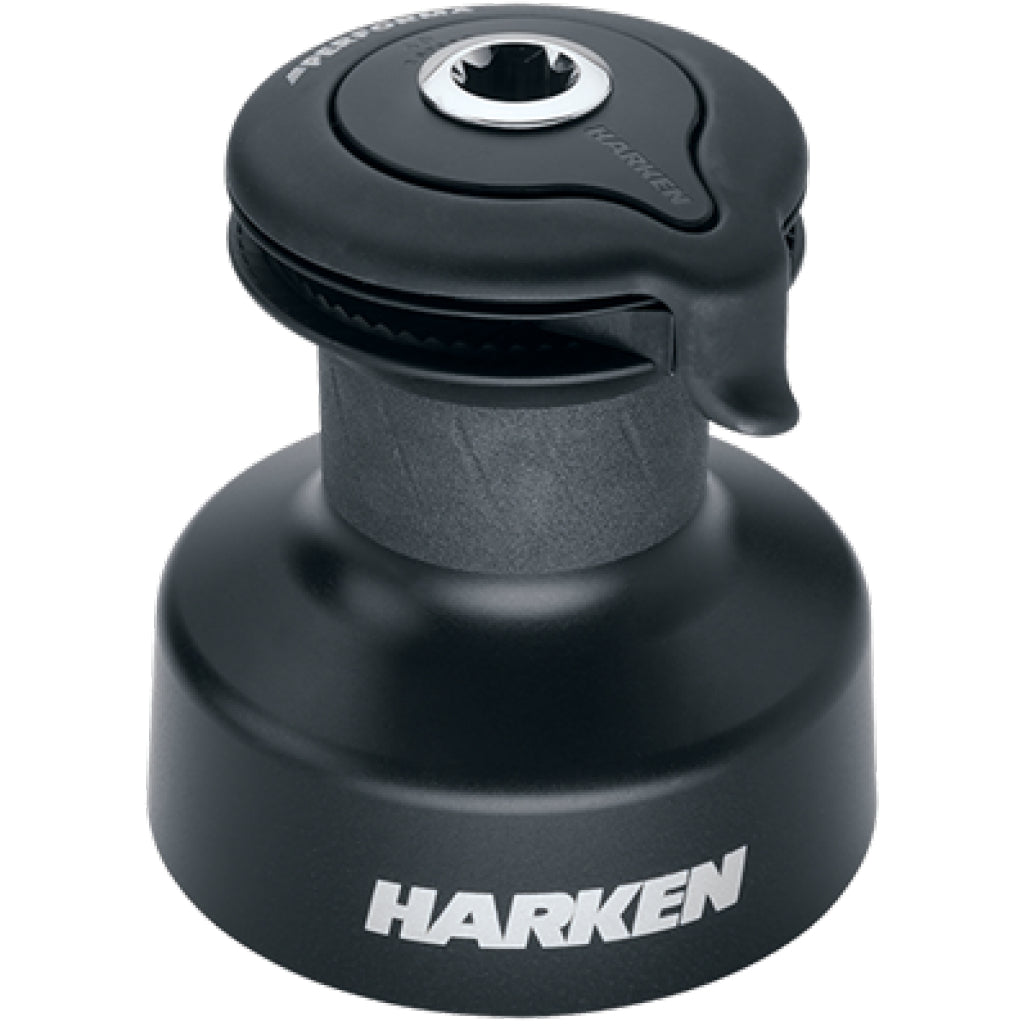

Harken 40 Self-Tailing 2 Speed Performa Winch

SKU# 40.2STP
$1,33099
Check Delivery Time

Harken 40 Self-Tailing 2 Speed Performa Winch may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

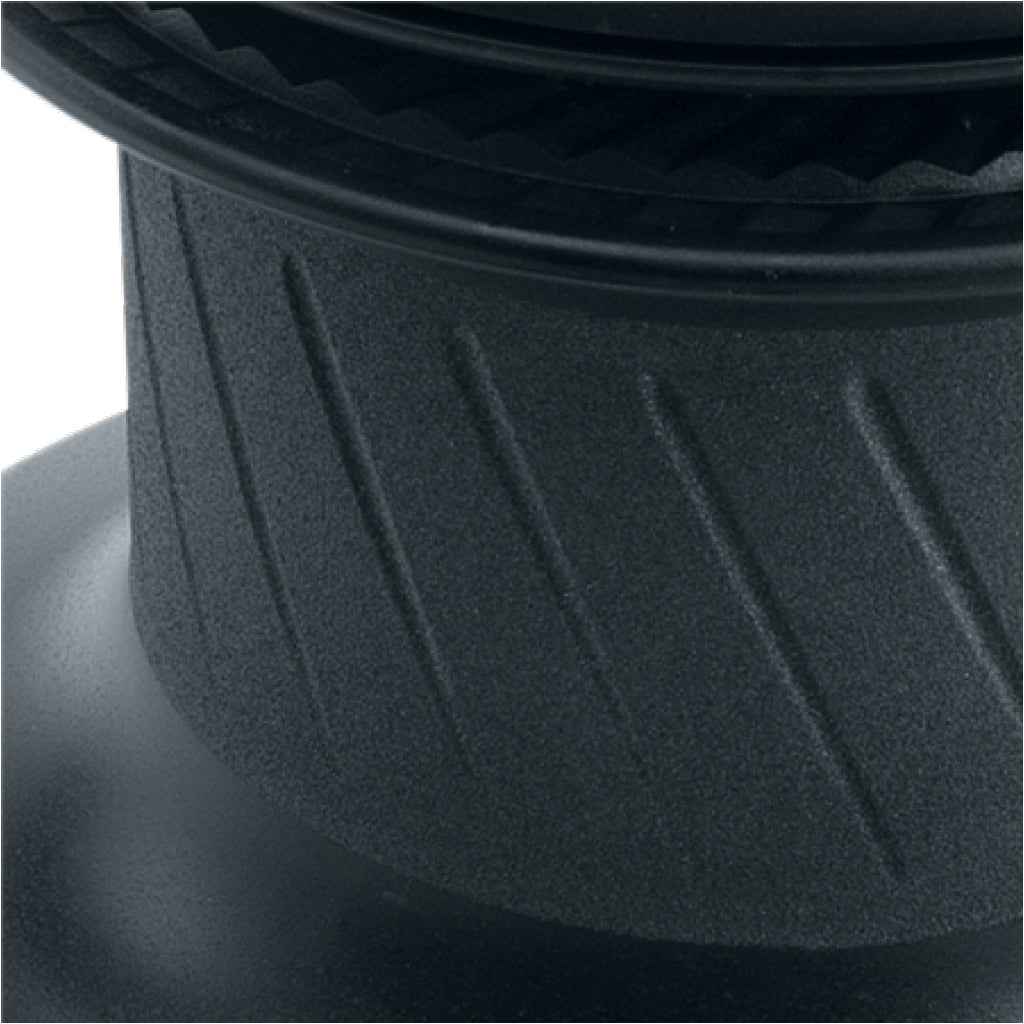

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line.

The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications

  • Configuration: Self-tailing
  • Speed: 2
  • Drum Ø (mm): 80 mm
  • Drum Ø (in): 3 1/8 in
  • Base Ø (mm): 157 mm
  • Base Ø (in): 6 3/16 in
  • Height (mm): 175 mm
  • Height (in): 6 7/8 in
  • Weight (kg): 3.8 kg
  • Weight (lb): 8.4 lb
  • Line entry height (mm): 82 mm
  • Line entry height (in): 3 1/4 in
  • Minimum line Ø (mm): 8 mm
  • Minimum line Ø (in): 5/16 in
  • Maximum line Ø (mm): 12 mm
  • Maximum line Ø (in): 1/2 in
  • Fastener circle (in): 4 7/8 in
  • Fastener circle (mm): 123 mm
  • Fasteners (mm): 6 HH, 6 SH mm
  • Fasteners (in): 1/4 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 2.13
  • Gear ratio - 2: 6.28
  • Power ratio - 1: 13.50
  • Power ratio - 2: 39.90
