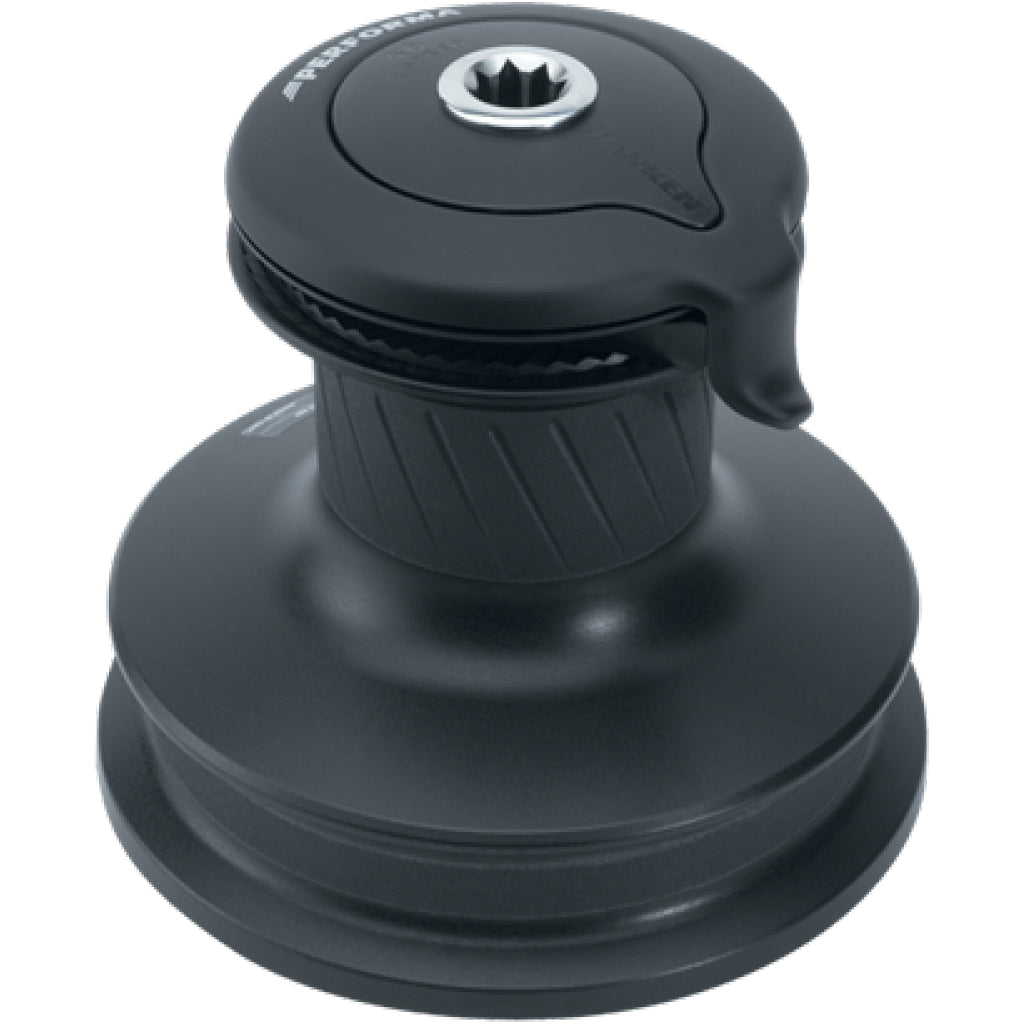

Harken 40 Self-Tailing Quattro Performa Winch

$1,639.99
Item Number: 40STQP

2 Drum, 2 Speed

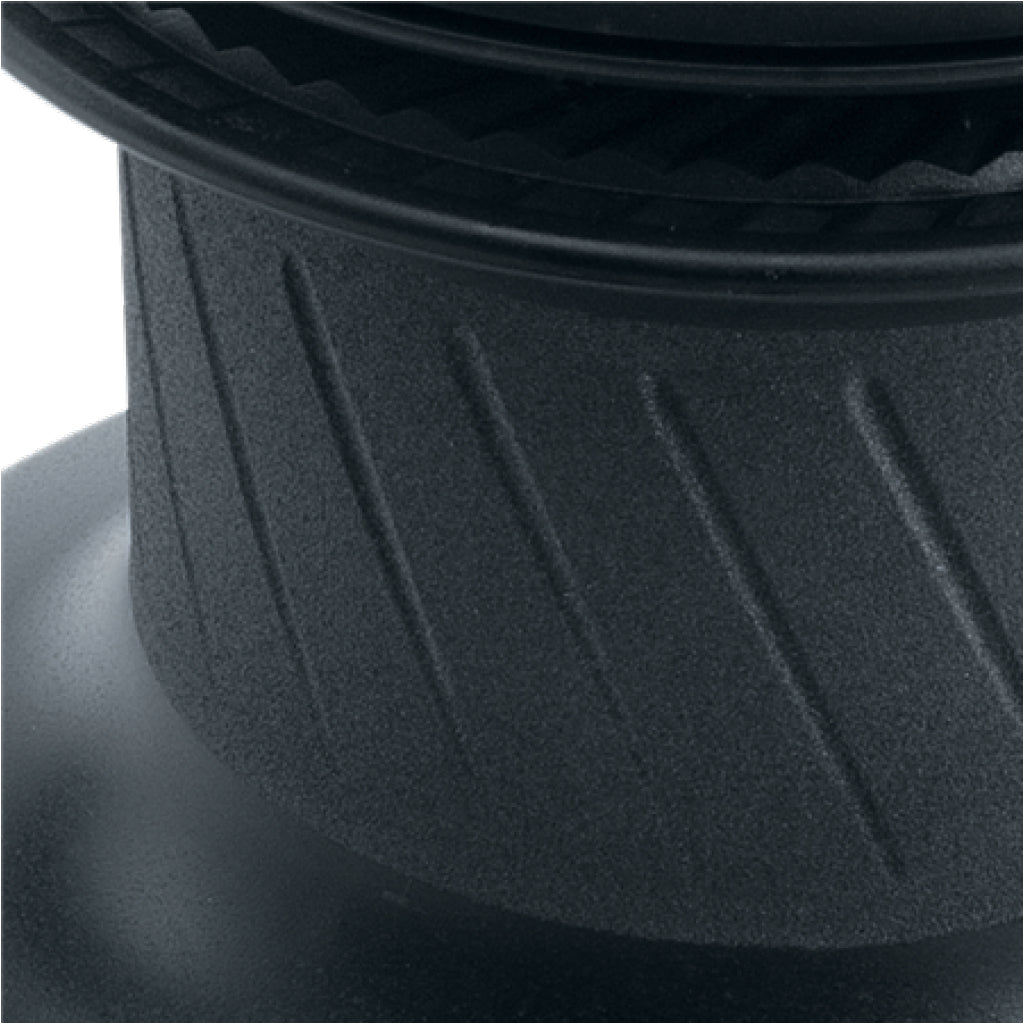

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line.

The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.

Specifications

  • Configuration: Quattro
  • Speed: 2
  • Drum Ø (mm): 80 mm
  • Drum Ø (in): 3 1/8 in
  • Drum Ø lower (mm): 154 mm
  • Drum Ø lower (in): 6 1/16 in
  • Base Ø (mm): 180 mm
  • Base Ø (in): 7 1/8 in
  • Height (mm): 175 mm
  • Height (in): 6 7/8 in
  • Weight (kg): 4.6 kg
  • Weight (lb): 10.2 lb
  • Line entry height (mm): 82 mm
  • Line entry height (in): 3 1/4 in
  • Line entry height lower (mm): 24 mm
  • Line entry height lower (in): 15/16 in
  • Minimum line Ø (mm): 8 mm
  • Minimum line Ø (in): 5/16 in
  • Maximum line Ø (mm): 12 mm
  • Maximum line Ø (in): 1/2 in
  • Fastener circle (in): 4 7/8 in
  • Fastener circle (mm): 123 mm
  • Fasteners (mm): M6 HH, M6 SH mm
  • Fasteners (in): 1/4 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 2.13
  • Gear ratio - 2: 6.28
  • Power ratio - 1: 13.50
  • Power ratio - 2: 39.90
