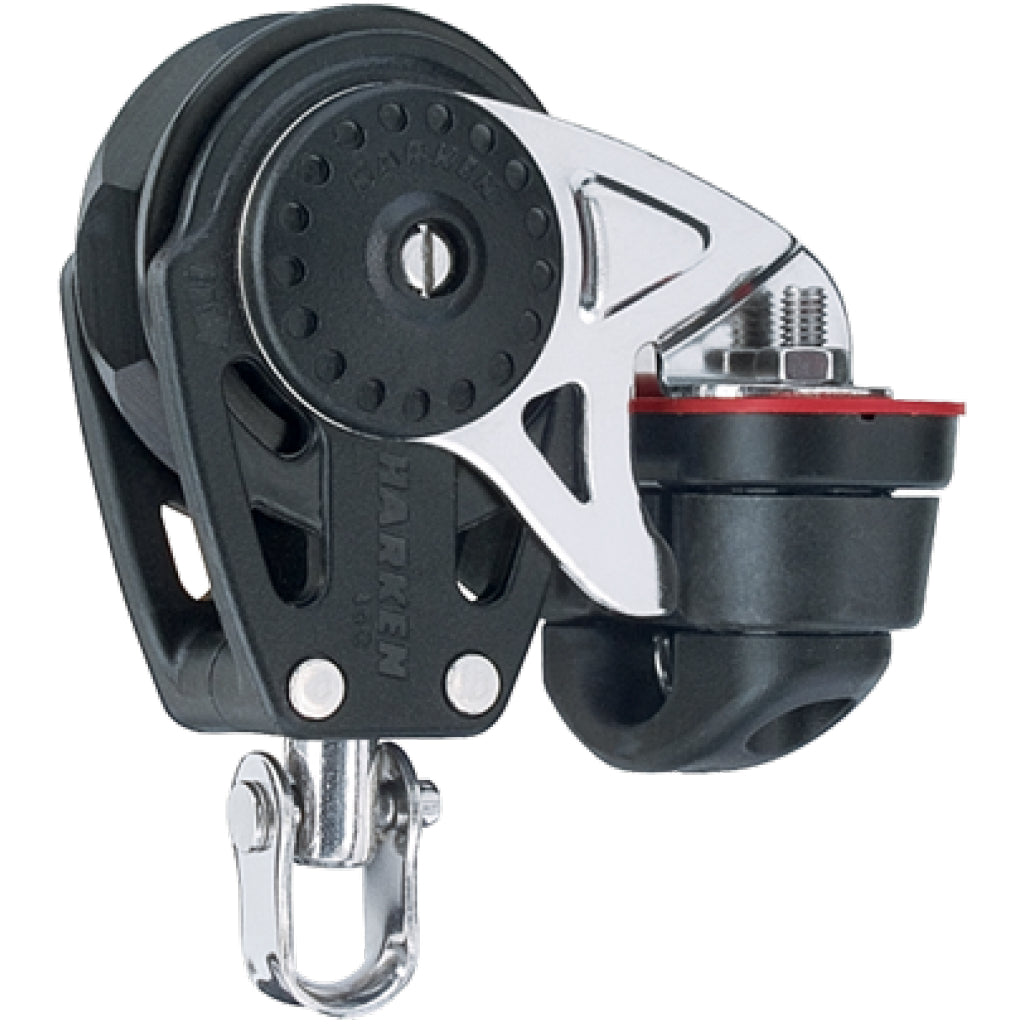

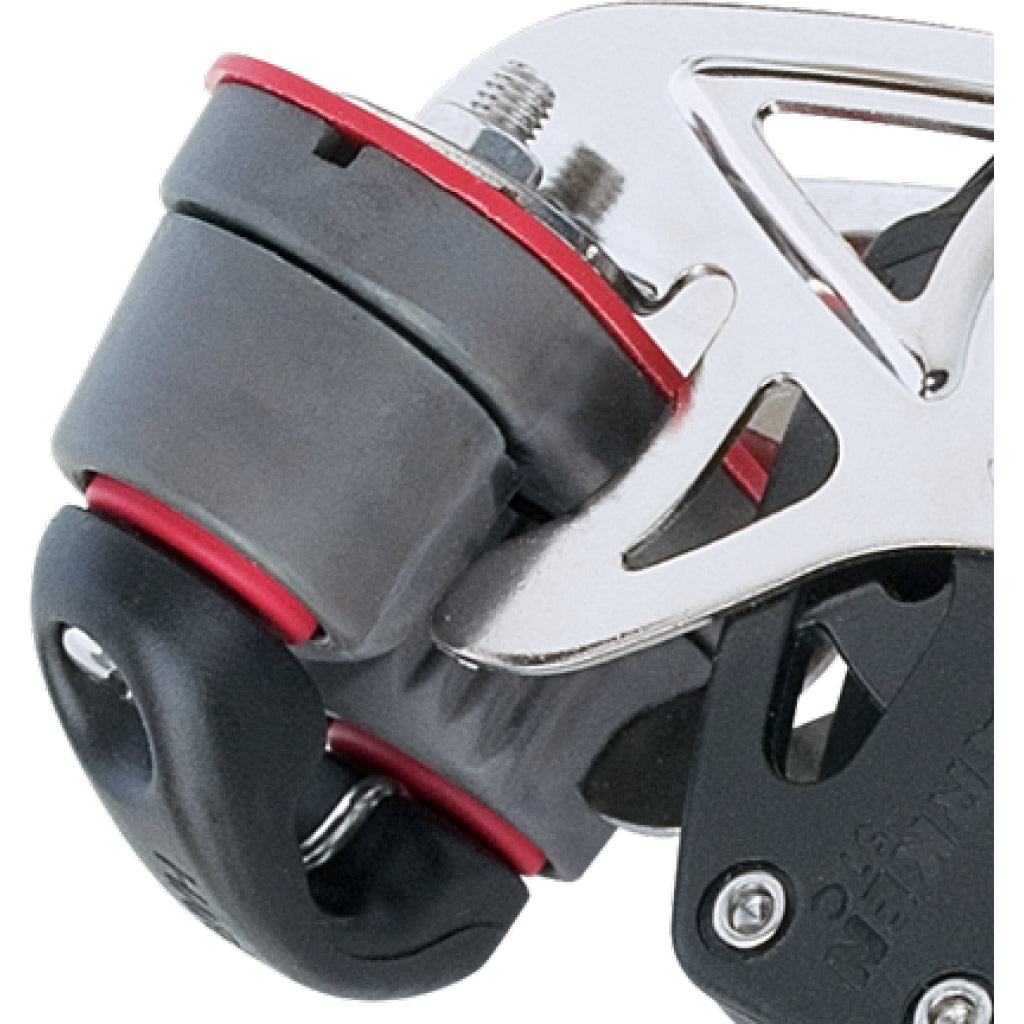

Harken 40mm Cam Cleat Swivel Ratchet Block

SKU# 2610
Check Delivery Time

Harken 40mm Cam Cleat Swivel Ratchet Block is backordered and will ship as soon as it is back in stock.

Sell Sheet

Collapsible tab content


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

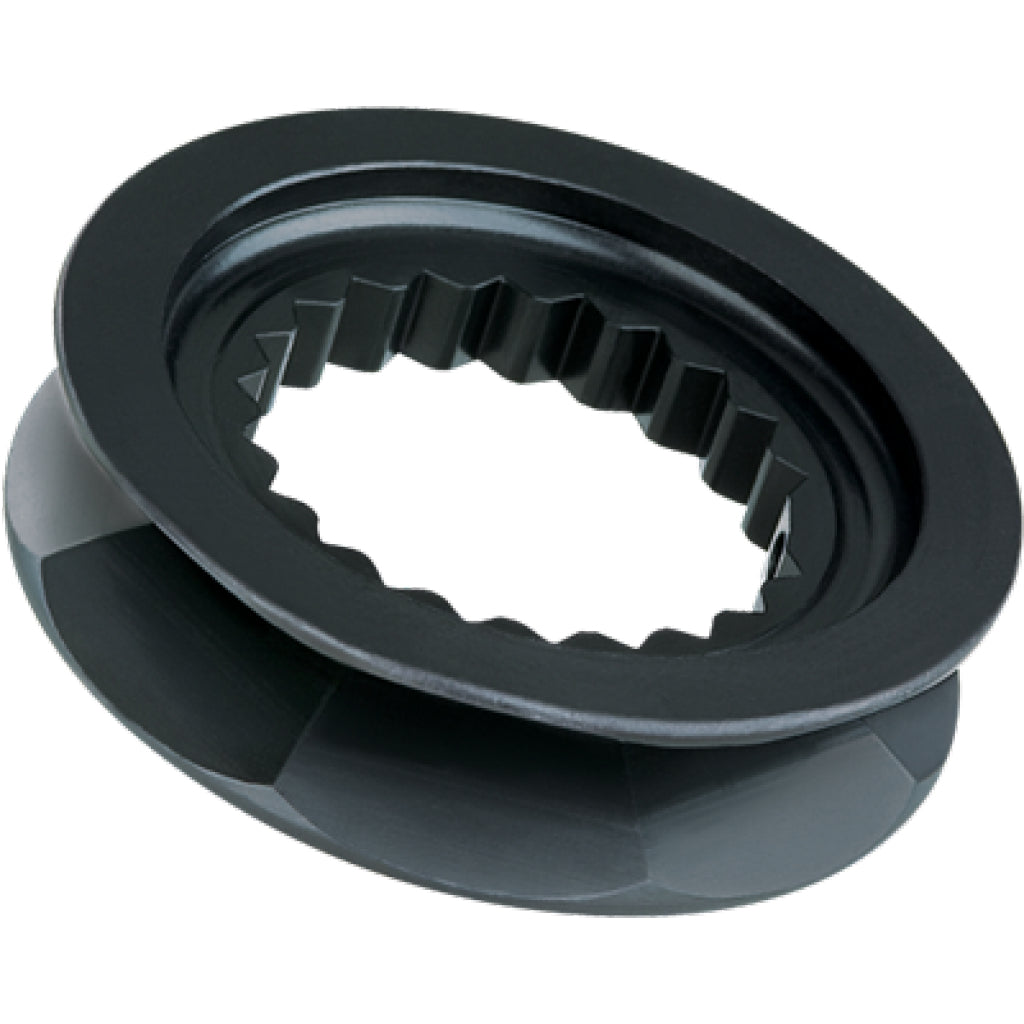

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.


  • Footnote: Maximum working loads and breaking loads for blocks based on cam strengths.
  • Sheave Ø (mm): 40 mm
  • Sheave Ø (in): 1 9/16 in
  • Length (mm): 86 mm
  • Length (in): 3 3/8 in
  • Weight (g): 129 g
  • Weight (oz): 4.6 oz
  • Shackle pin Ø (mm): 4 mm
  • Shackle pin Ø (in): 5/32 in
  • Maximum line Ø (mm): 6 mm
  • Maximum line Ø (in): 1/4 in
  • Maximum working load (kg): 68 kg
  • Maximum working load (lb): 150 lb
  • Breaking load (kg): 136 kg
  • Breaking load (lb): 300 lb
