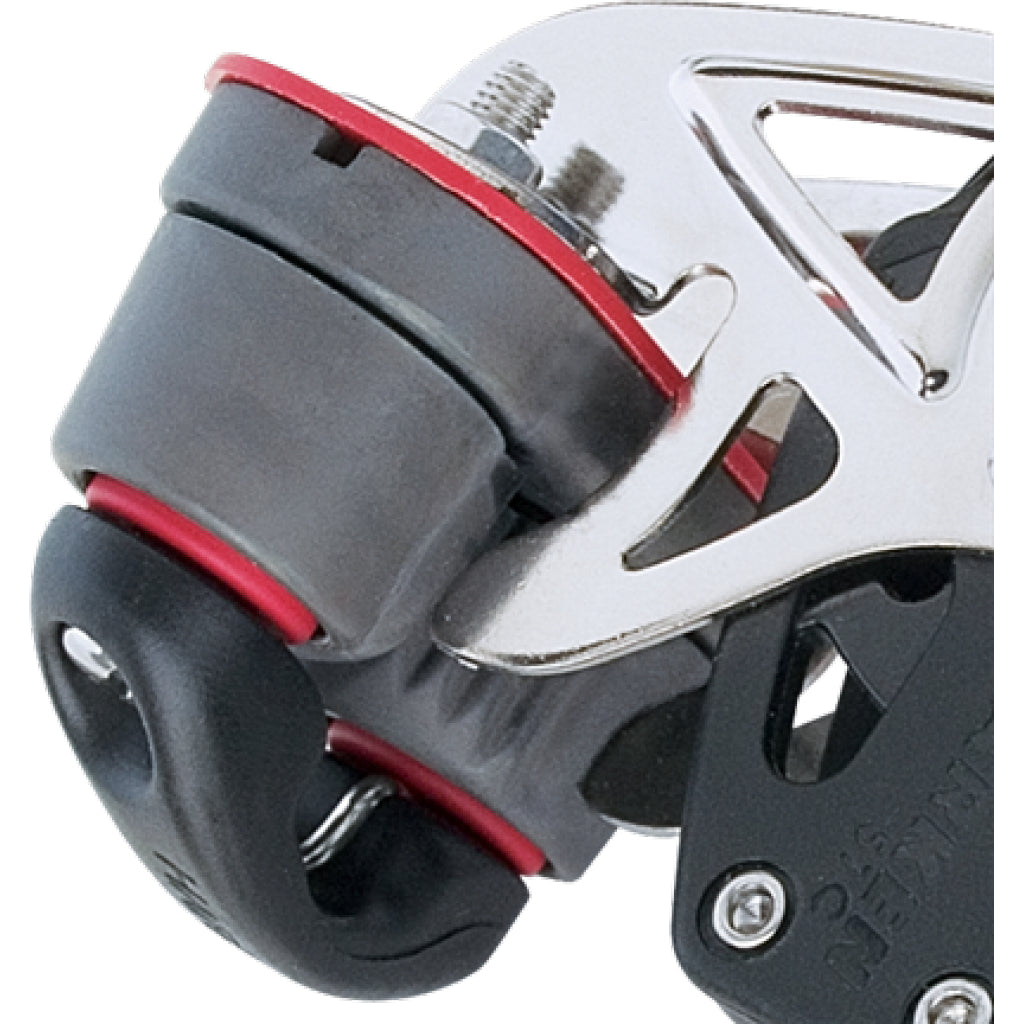

Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable.
Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming. T
he 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.
Footnote: Maximum working loads and breaking loads for blocks based on cam strengths.
Sheave Ø (mm): 40 mm
Sheave Ø (in): 1 9/16 in
Length (mm): 115 mm
Length (in): 4 1/2 in
Weight (g): 125 g
Weight (oz): 4.4 oz
Shackle pin Ø (mm): 4 mm
Shackle pin Ø (in): 5/32 in
Maximum line Ø (mm): 6 mm
Maximum line Ø (in): 1/4 in
Maximum working load (kg): 204 kg
Maximum working load (lb): 450 lb
Breaking load (kg): 680 kg
Breaking load (lb): 1500 lb
